Timberplates

F8

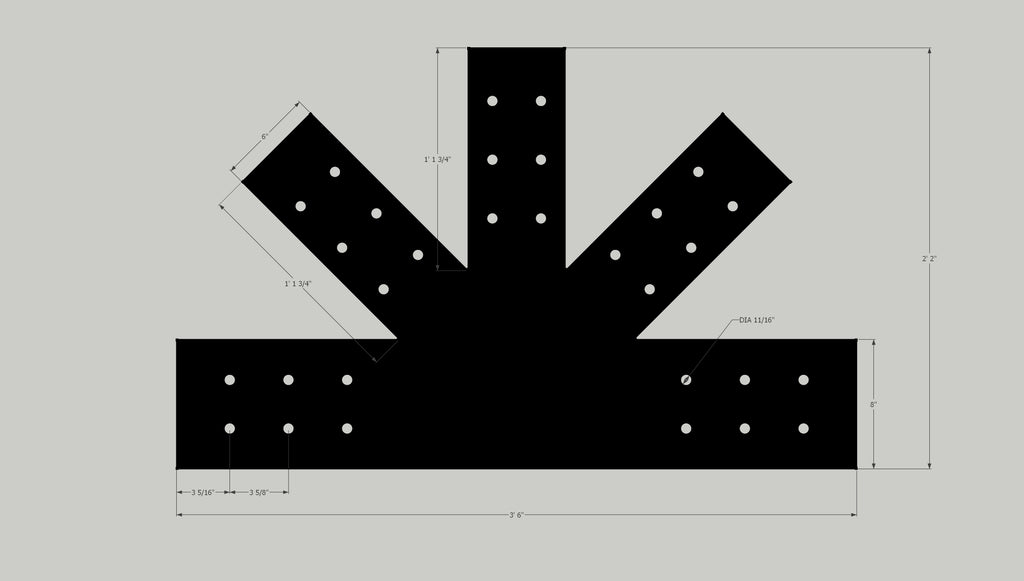

The F8 is a 5-spoke "fan plate". Fan plates are used to connect the bottom tie beam of a truss to two struts and a king post. The F8 has with 8" wide spokes along the tie beam and 6" wide spokes on the king post and struts. Struts radiate out at 45° angles.

To see dimensions, hover over image to magnifer (desktop) or click image and zoom in (mobile).

Please select the correct options below
Black powder coating can be added at checkout.

$ 120.00
