Case study

Copperspring Amenity Center

A timber and steel gem on the west coast of Florida.

Request a quote

In 2019 Timberplates was contacted to fabricate a set of galvanized steel components for the Copperspring Amenity Center in New Port Richey, Florida. With hundreds of shop-hours over four weeks of development, it was a large project, but one we were confident we could handle.

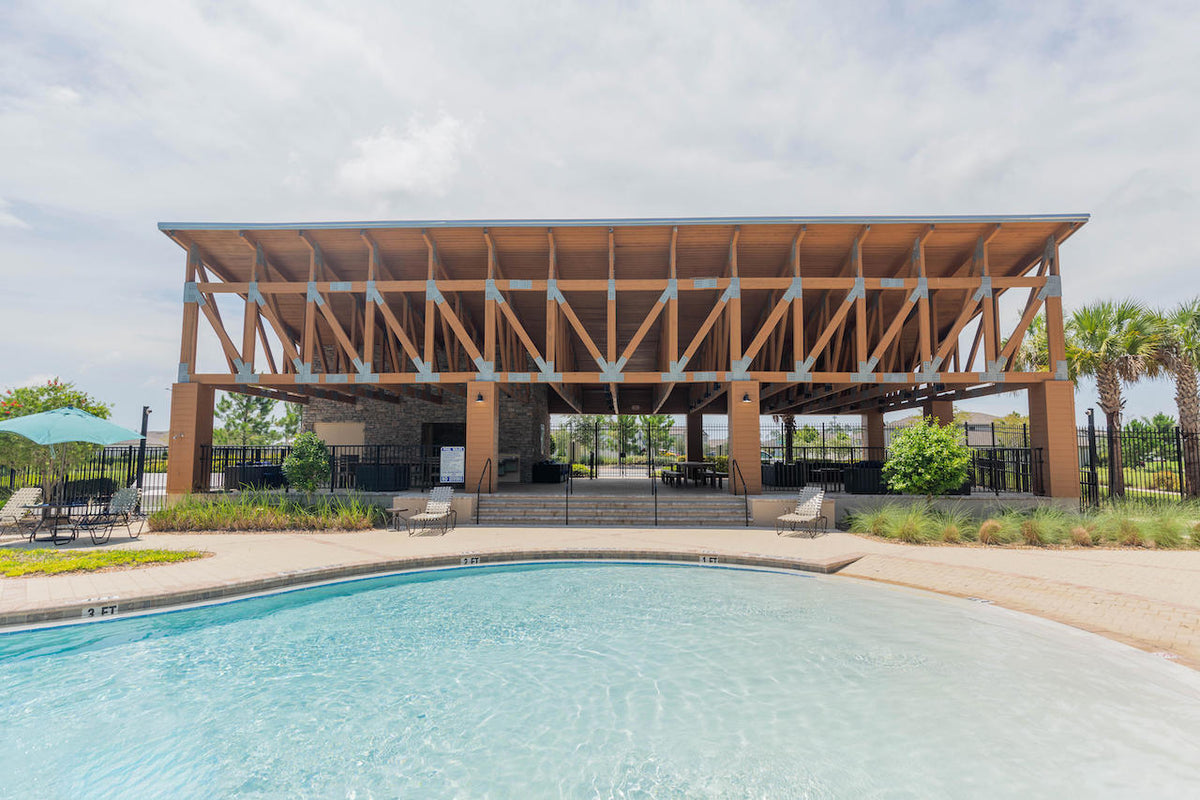

  • The Copperspring Amenity Center's open-air timber pavilion seen across the pool, its trusses joined with galvanized steel plates

01 Design

From vision to reality

Timberplates connectors made their vision a reality.

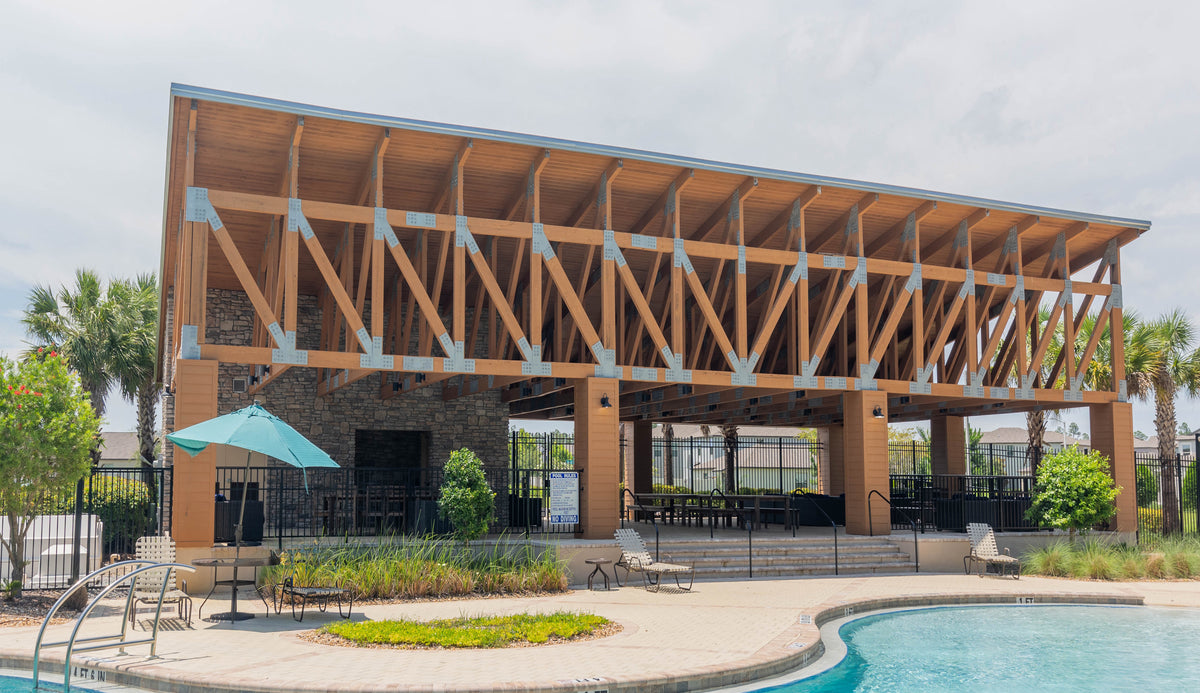

The finished timber pavilion from the same angle, beside the pool

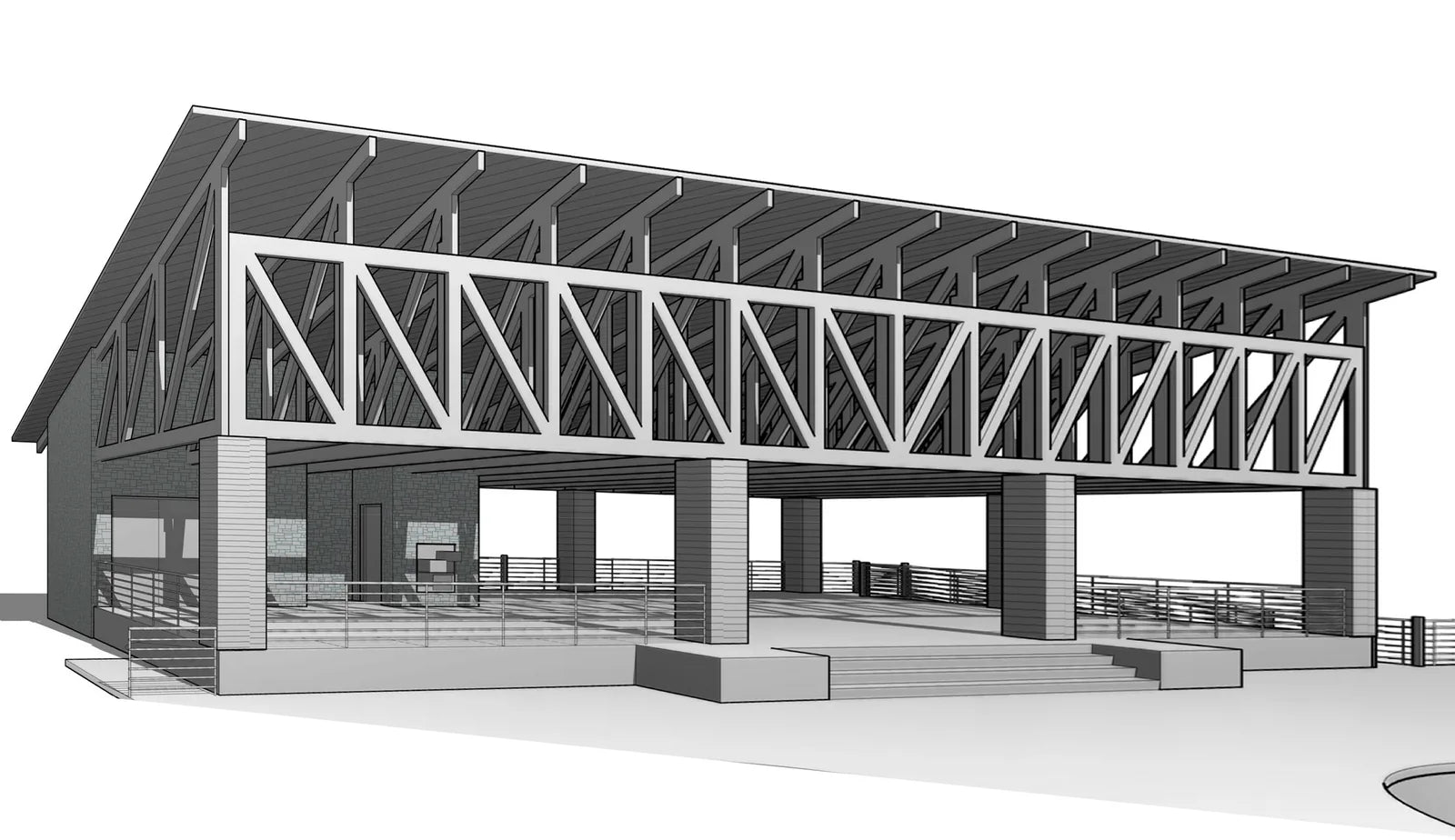

The architect's rendering of the pavilion, its long side of trusses seen from the pool deck

02 Ready for galvanizing

14,000 lbs of steel

Timberplates coordinated everything with the galvanizer. We attached custom-made steel tags that could survive the galvanizing process to help the contractor identify each component.

In all, the project required more than 14,000 lbs of 1/4" and 1/2" steel, 13,000 holes, 65 yards of welds, and over 1000 individual plate components. We are proud to say there was not a single fitment issue on the project.

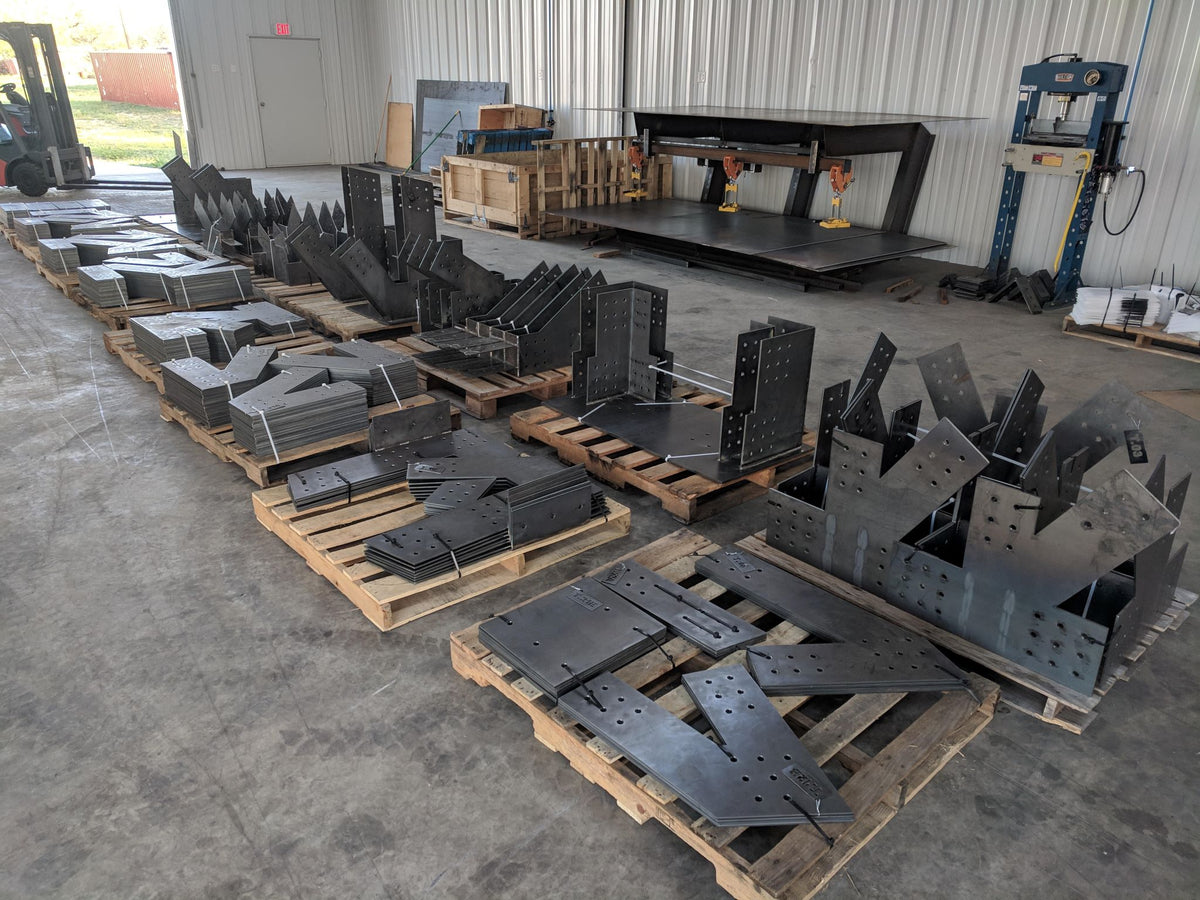

Steel plate components for the project on pallets in the Timberplates shop

03 Photos

The project

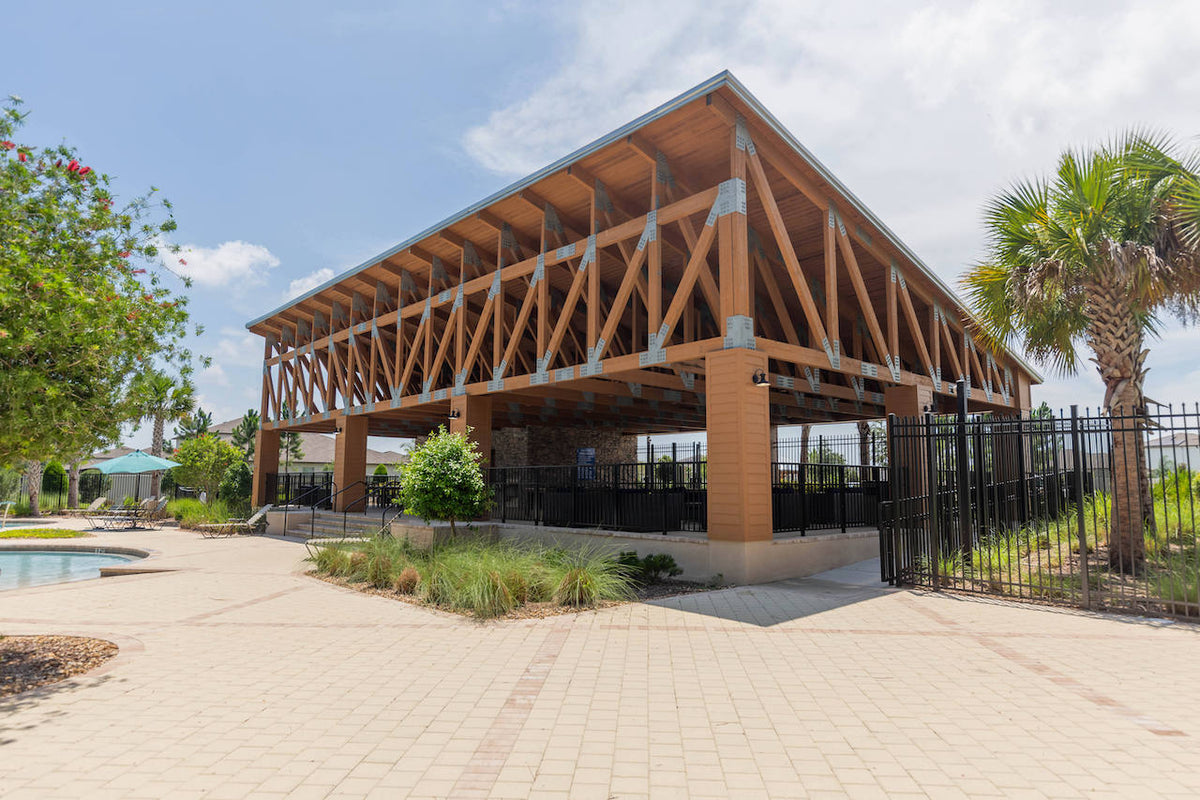

  • The timber pavilion from the pool deck, its trusses joined with galvanized steel plates

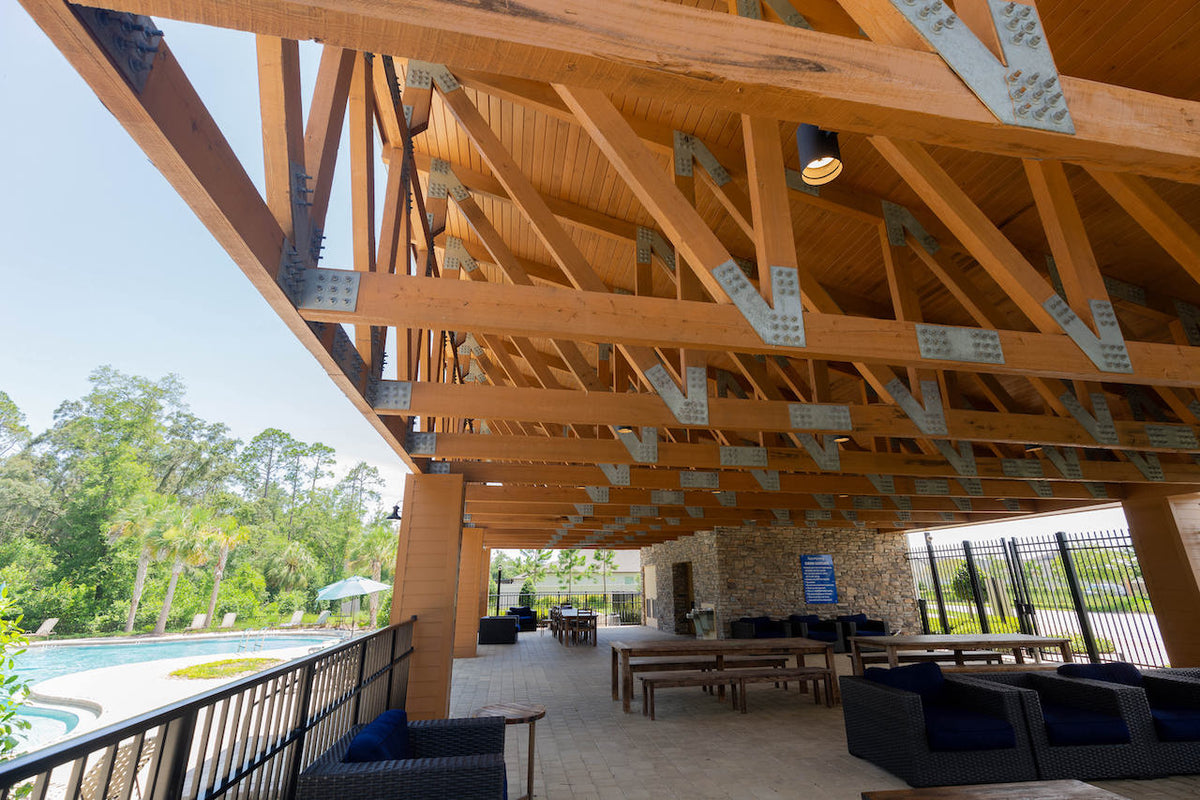

  • Under the pavilion's roof: timber trusses with galvanized plates over the lounge, the pool beyond

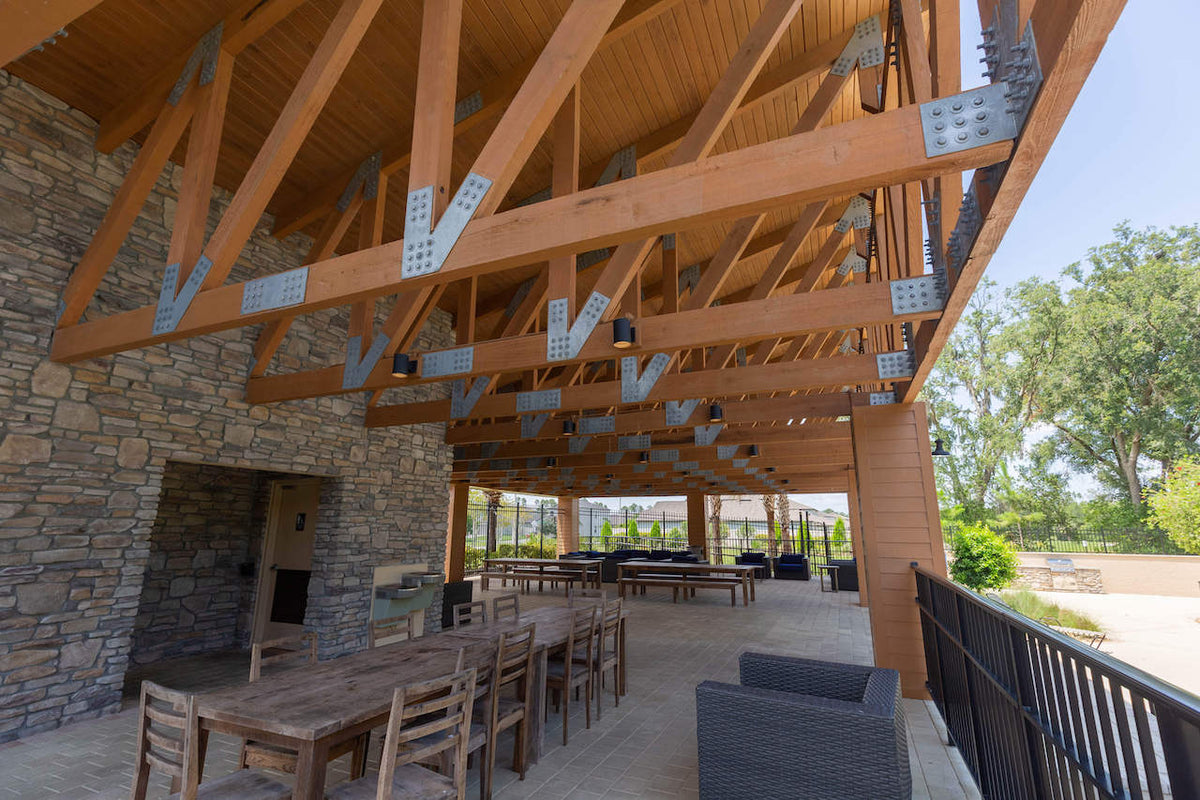

  • The pavilion's stone fireplace and dining tables under timber trusses joined with galvanized plates

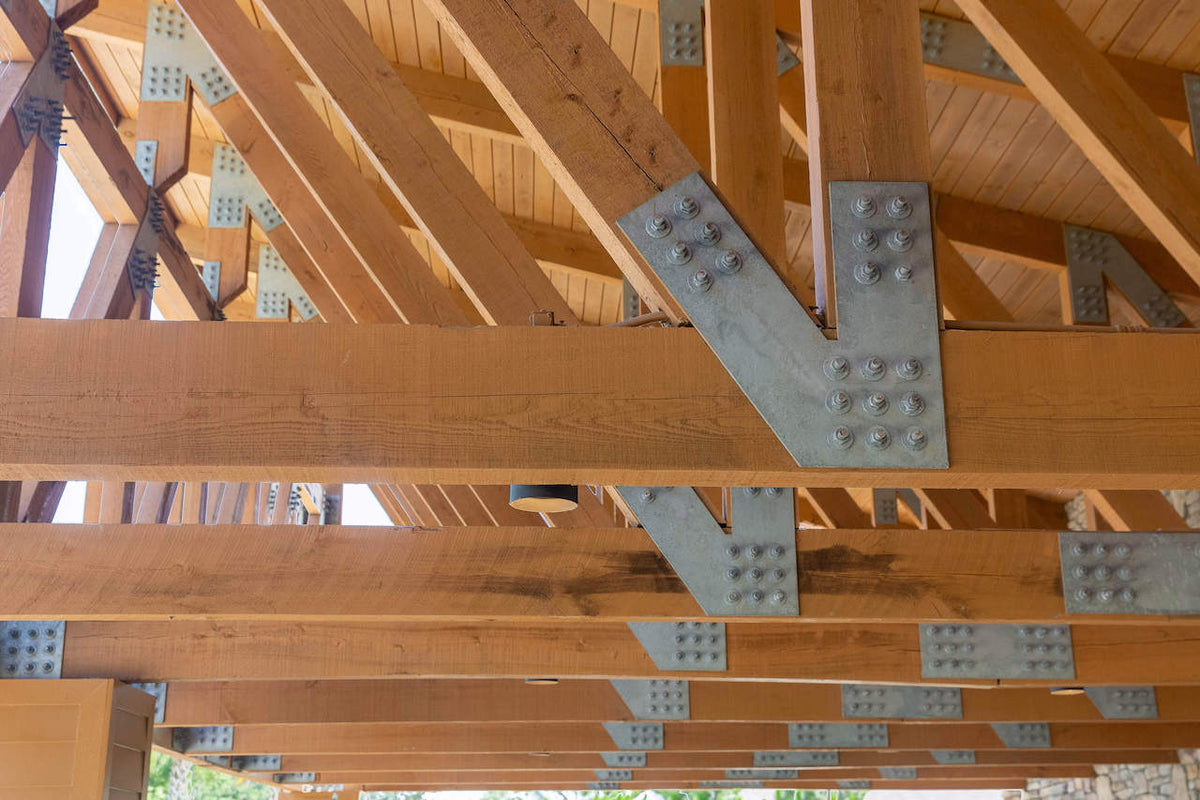

  • Close-up of galvanized steel plates bolted at the truss joints

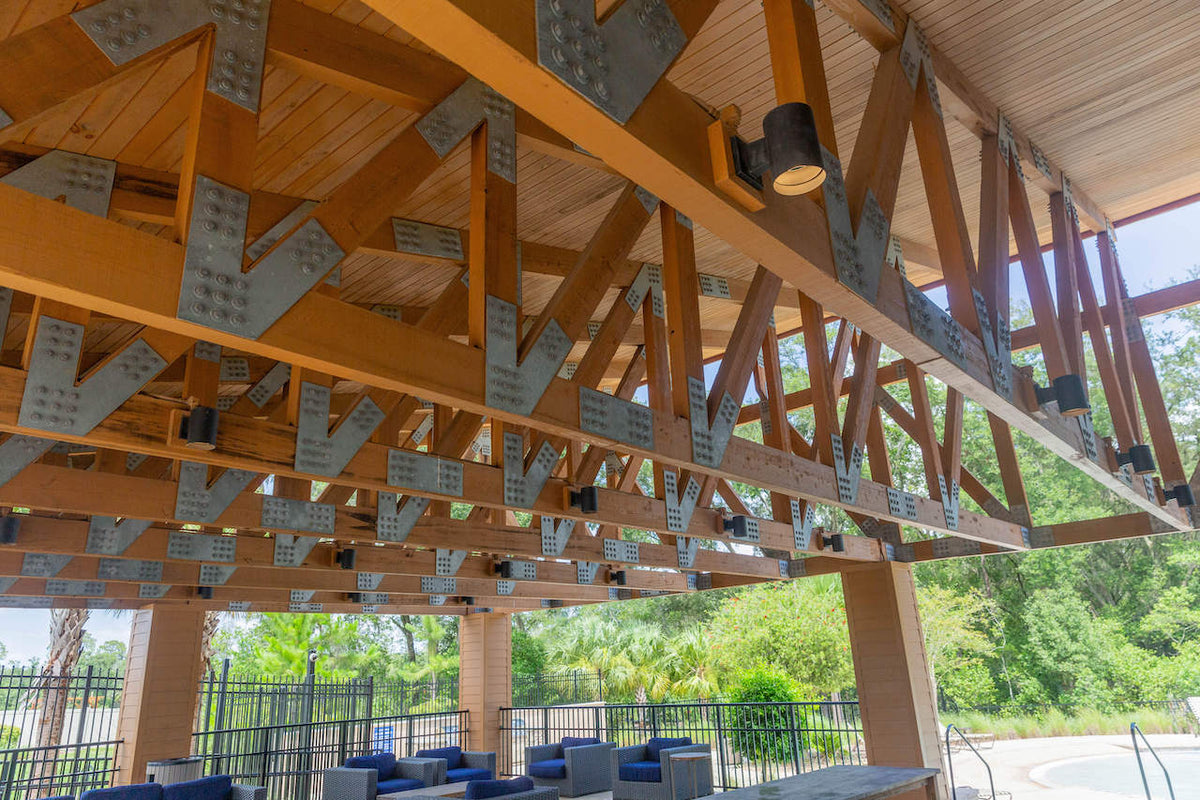

  • Looking along the underside of the pavilion's trusses and their galvanized plates

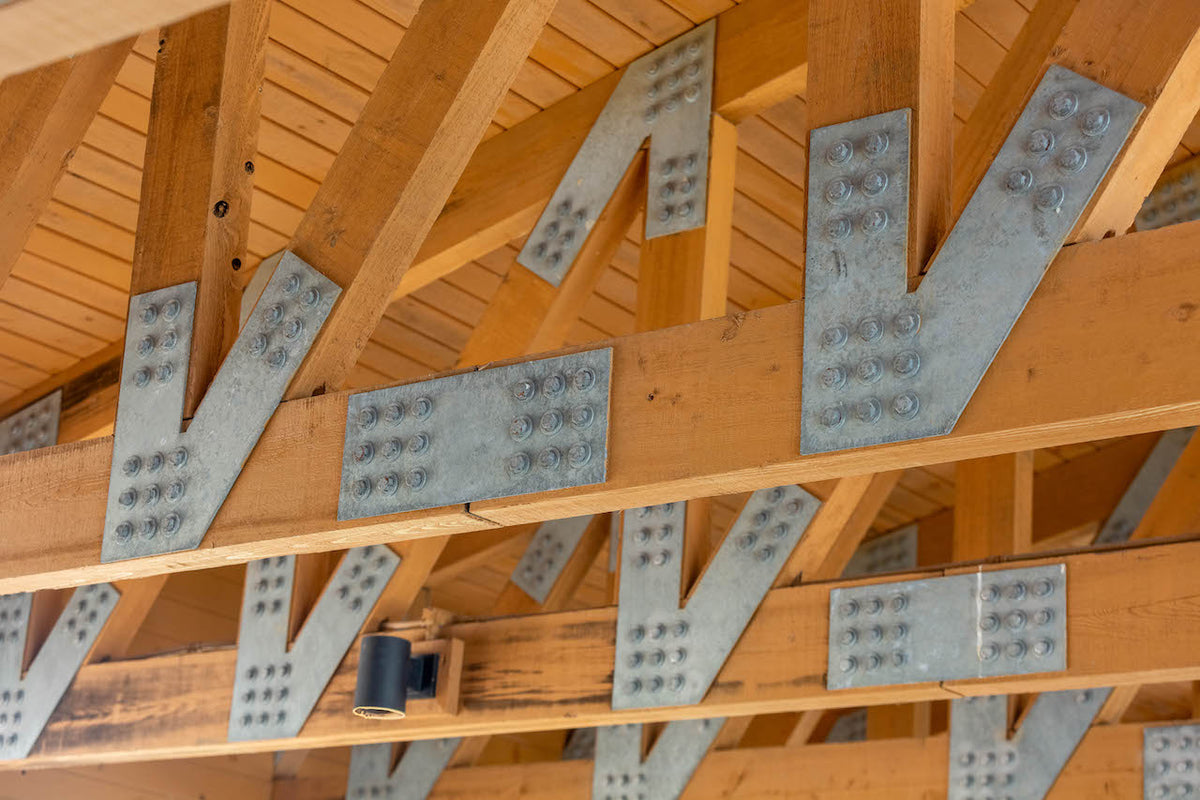

  • Rows of galvanized V-shaped and straight plates bolted to the trusses

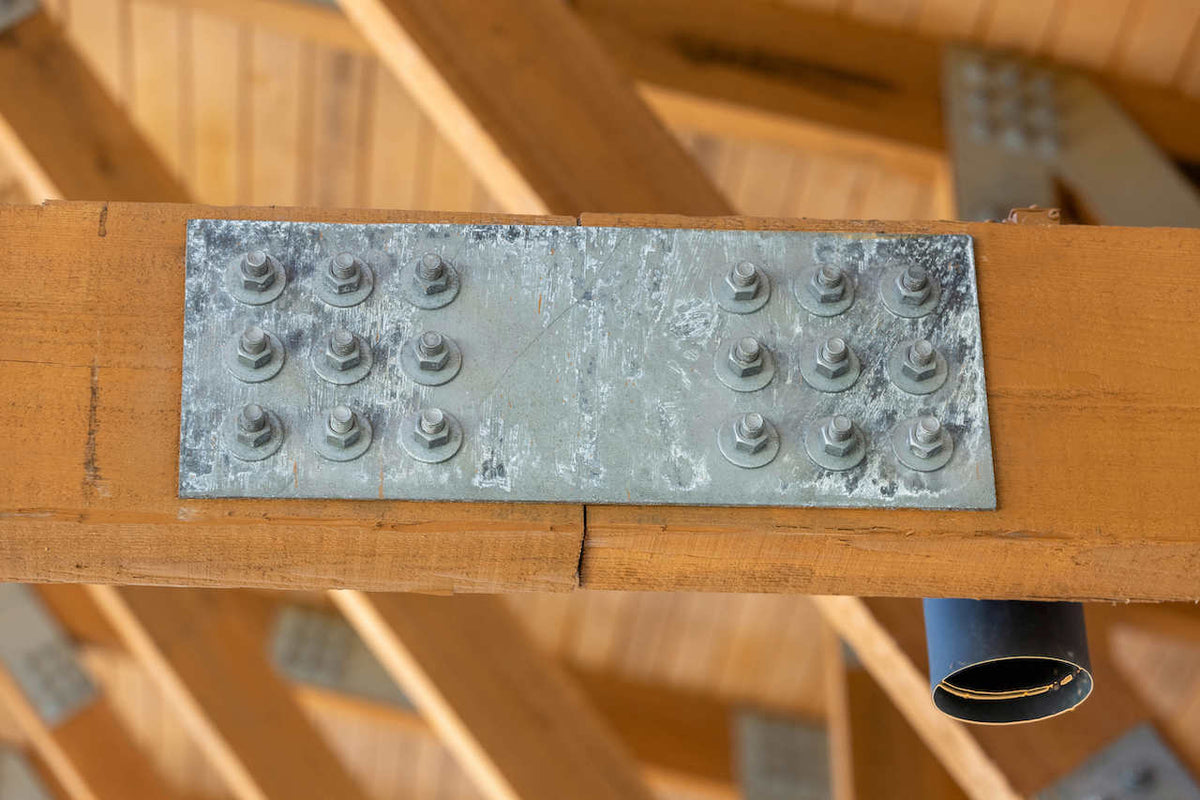

  • A galvanized steel splice plate bolted across a joint in a timber chord

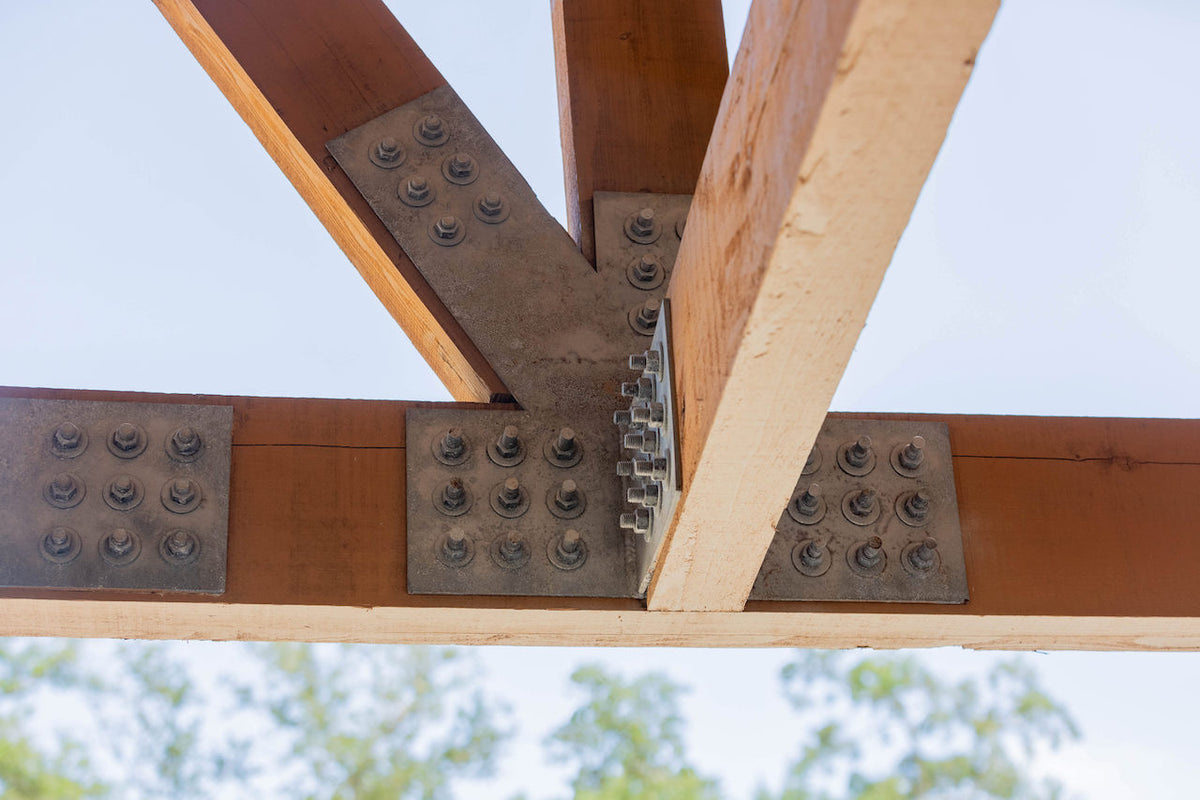

  • Galvanized plates joining three timbers of a truss, seen against the sky

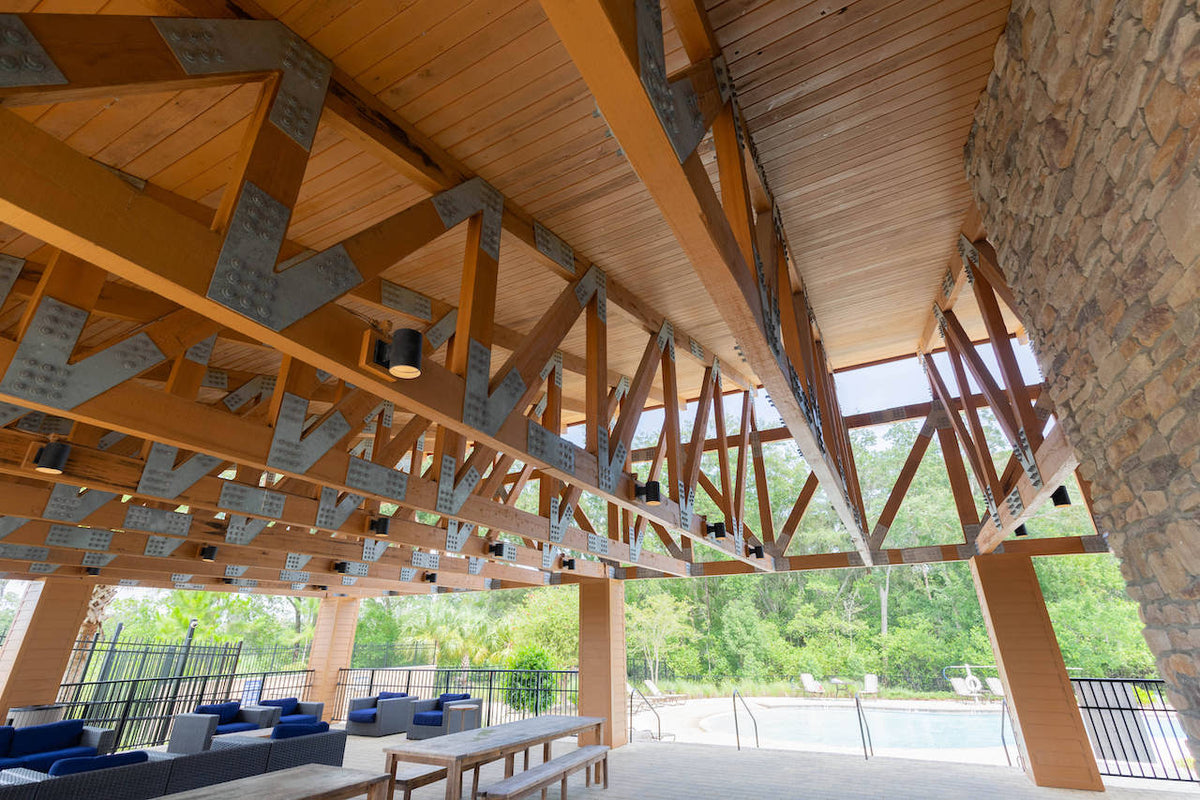

  • The length of the pavilion under its trusses, with lounge seating and the pool beyond
