Plates 10 products

Esker

For 6" to 10" timbers

The Esker Collection is a line of plates that will help add a decorative touch to your trusses. Long and curvaceous, echoing the long, winding lines of esker ridges, these plates work flawlessly with timbers ranging from 6" to 10" wide. Esker plates are 6" wide along timbers on the perimeter of your truss and on webbing timbers like king posts and struts.

Not sure which plates you need? See how to plan your truss

01 In a truss

Where each plate goes

Every plate on the drawing is a link to it. Pick a truss type to see the plates it takes.

Truss
King post with struts truss with Esker plates, drawn from the cutting files
King post truss with Esker plates, drawn from the cutting files
Struts, no king post truss with Esker plates, drawn from the cutting files

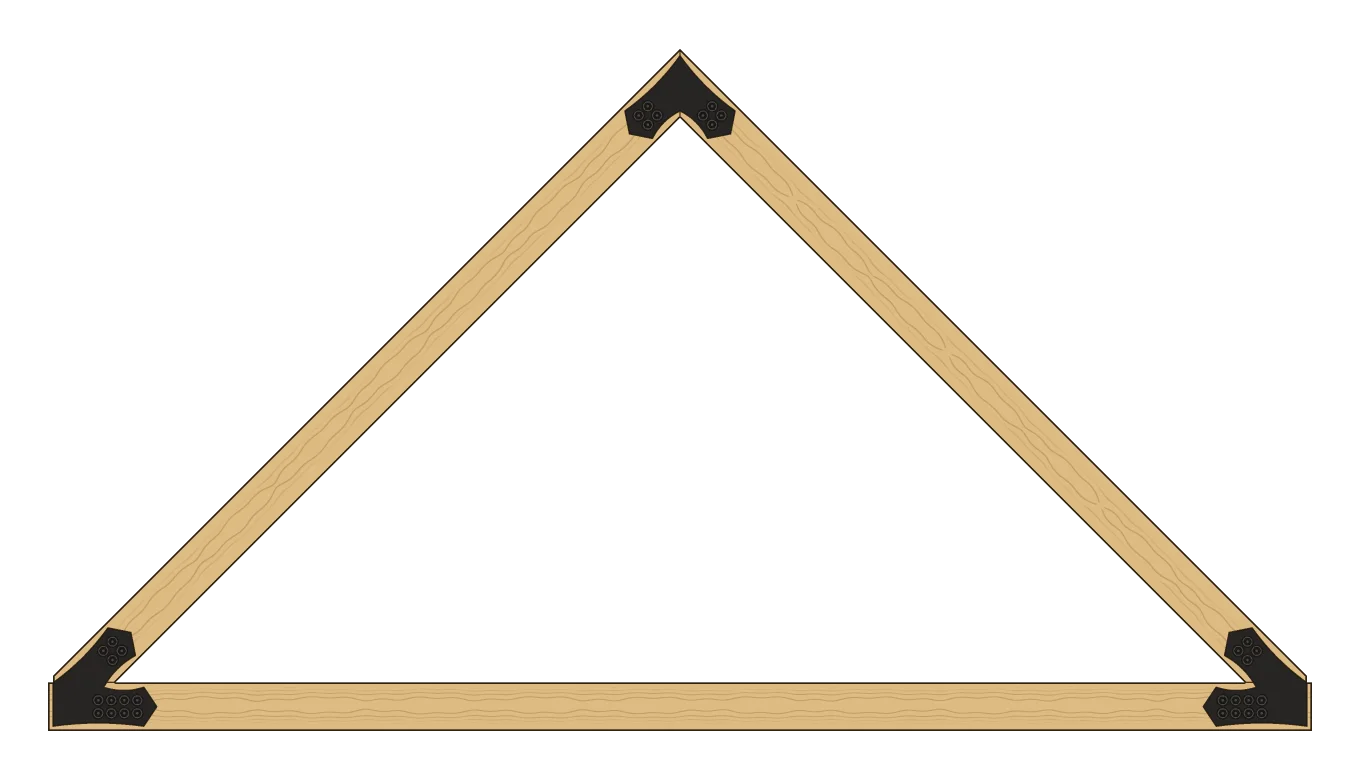

Open truss with Esker plates, drawn from the cutting files
Raised tie beam truss with Esker plates, drawn from the cutting files

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

02 Plates

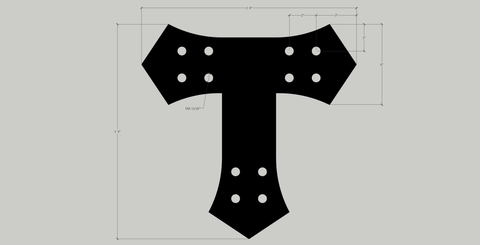

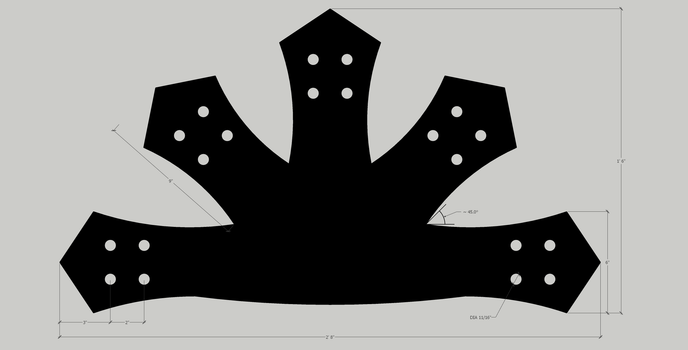

Every Esker plate

Drawn to one scale from the cutting files; plates that come in pitches are shown at 12/12.

03 Heel

Heel plate or collar tie plate?

A rafter and a tie beam meet in one of two ways, and each takes its own plate.

04 Collections

Six collections, drawn to one scale.

Each collection’s king post truss plate at 12/12, from its cutting file. Each collection fits a range of timber widths.

12" at this scale.

Heel plate or collar tie plate?

How do the rafter and the tie beam meet in your truss?
