01 Tie rods

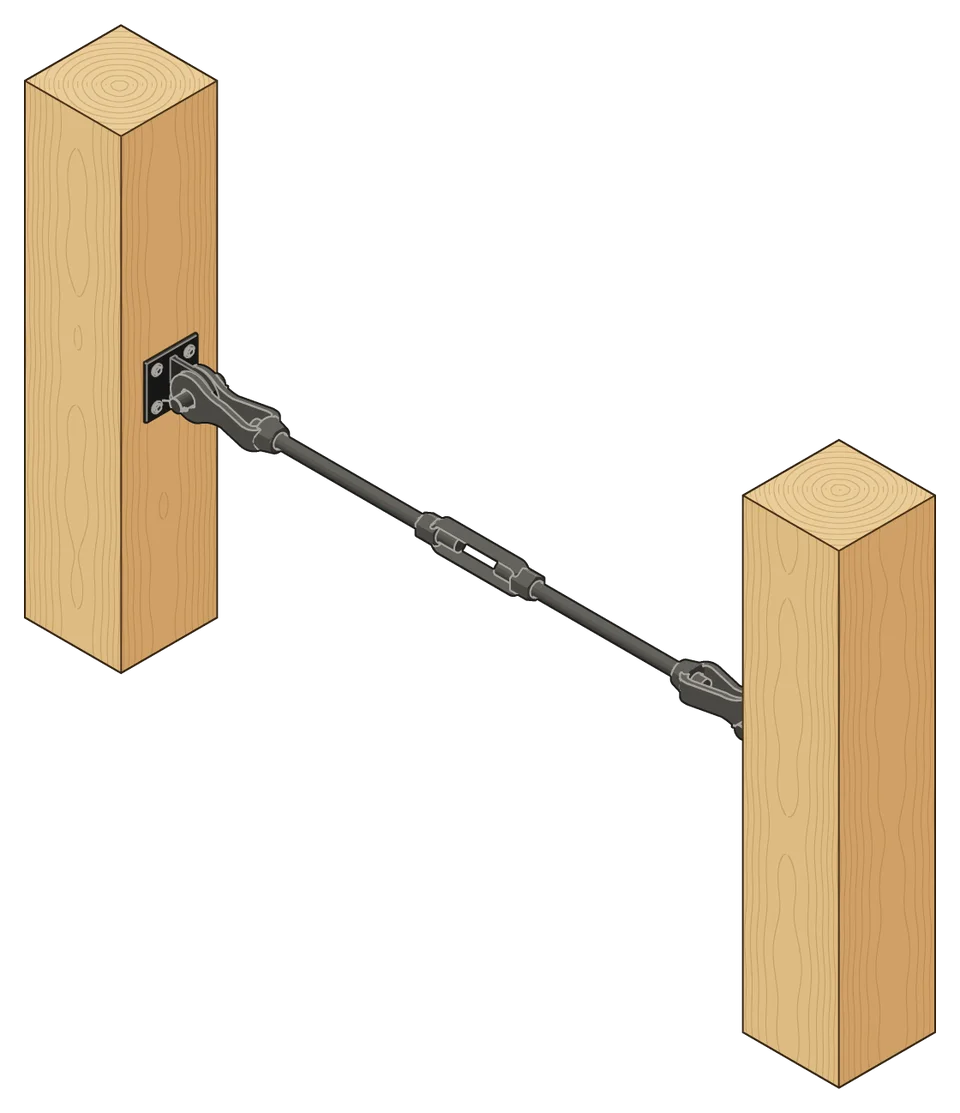

Design a tie rod system in 3D. We build it to order.

Pick a system and the designer opens with it set up. Enter your dimensions, see it in 3D, and get the price instantly.

How tie rod systems work Specifications

02 Plates

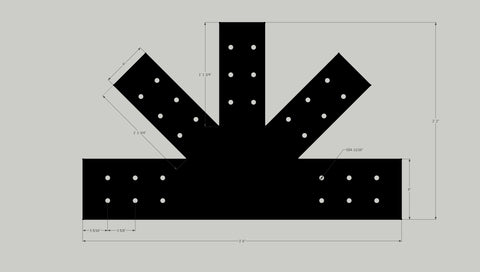

Six collections, drawn to one scale.

Each collection fits a range of timber widths. Pick a plate to see it from every collection, all drawn to one scale from our cutting files, so you can compare their sizes honestly.

Compare

At the peak, on the king post

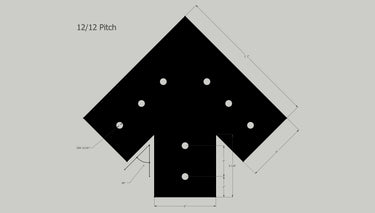

King Post Truss Plate

Part W

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart. Drawn at 12/12 pitch.

Strut to rafter

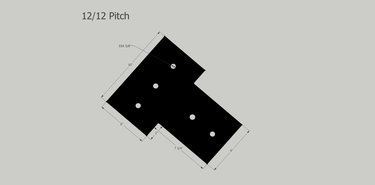

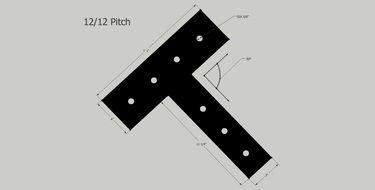

Strut Truss Plate

Part Y

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart. Drawn at 12/12 pitch.

Tie beam to king post and two struts

Fan Truss Plate

Part F

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart.

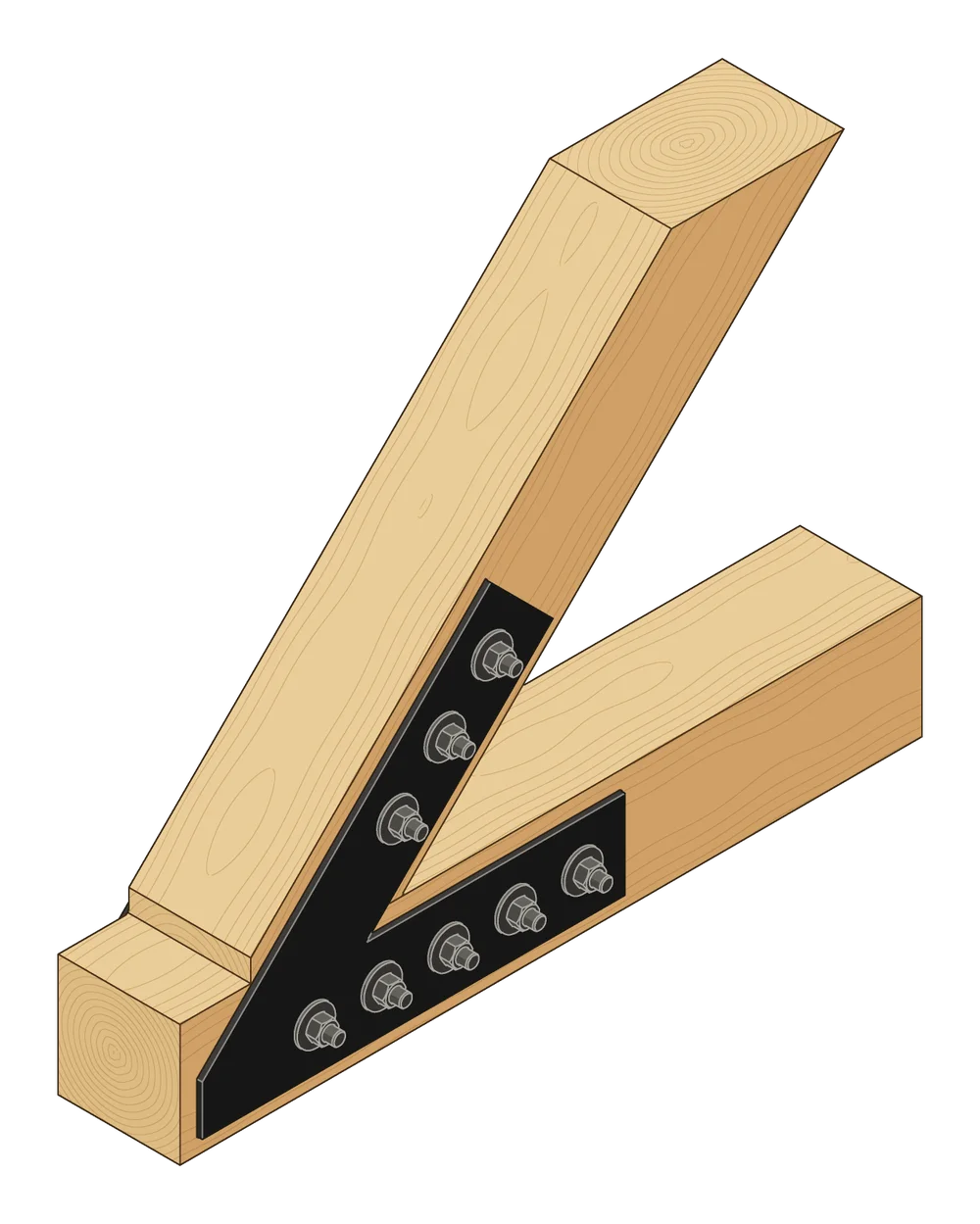

At the heel: the rafter sits on the tie beam

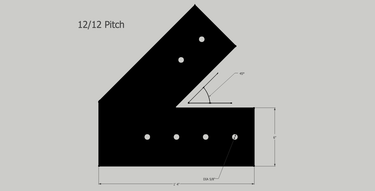

Heel Truss Plate

Part VB

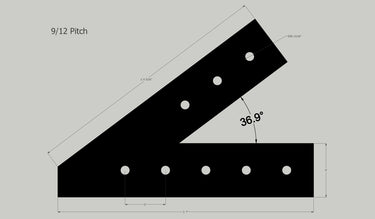

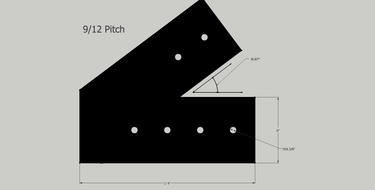

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart. Drawn at 12/12 pitch.

The tie beam raised and hung from the rafters

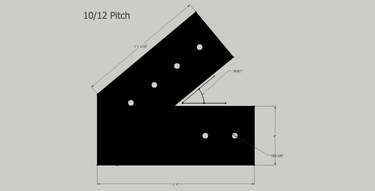

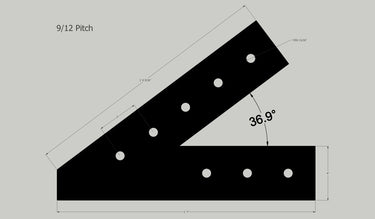

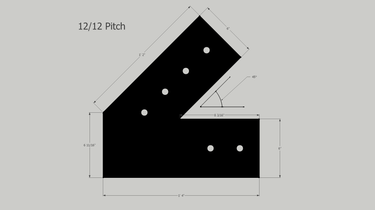

Collar Tie Truss Plate

Part VT

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart. Drawn at 12/12 pitch.

Tie beam to king post

T Plate

Part T

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart.

Tie beam to column

L Plate

Part L

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart.

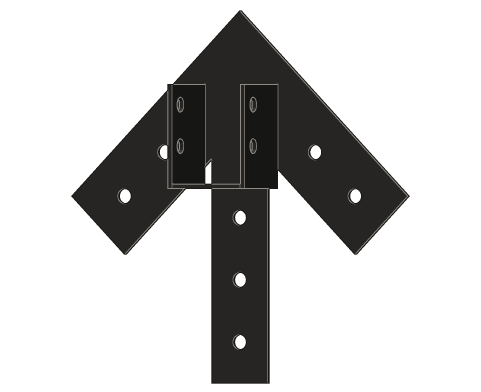

At the peak, with a welded saddle for the ridge beam

Ridge Beam Truss Saddle

Part W Saddle

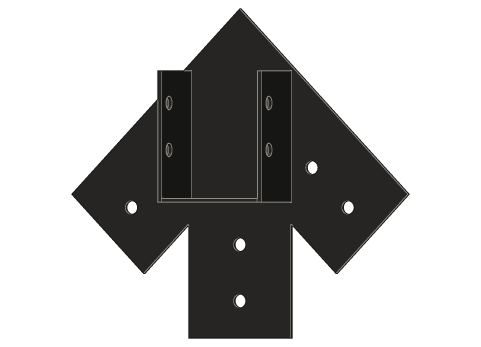

12" at this scale. Plates are 3/16" or 1/4" steel, with 11/16" holes for 5/8" bolts. They ship unfinished; add matte black powder coating in the cart. Drawn at 12/12 pitch.

Leave a little wood showing around each plate, and measure your timbers: a store-bought 4x4 is really 3-1/2" square.

  • Ships free in the lower 48 states.
  • 5% off orders over $2,000, 10% off over $5,000. No code needed.

Which plate goes where

A king post truss with struts takes 2 king post, 2 fan, 4 strut, and 4 heel or collar tie plates: one king post, one fan, two strut, and two heel plates on this face, and their twins on the back. Plates are sold singly and used in pairs, through-bolted with threaded rod, with a washer and a nut on each face (bolts also work, but leave a head on one side).

King post truss plate (W)
at the peak, on the king post
Fan truss plate (F)
tie beam to king post and two struts
Strut truss plate (Y)
strut to rafter
Heel truss plate (VB)
at the heel, where the rafter sits on the tie beam
Collar tie truss plate (VT)
the tie beam raised and hung from the rafters

Plan your truss

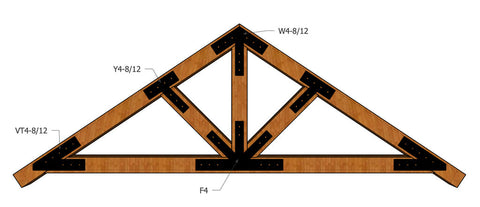

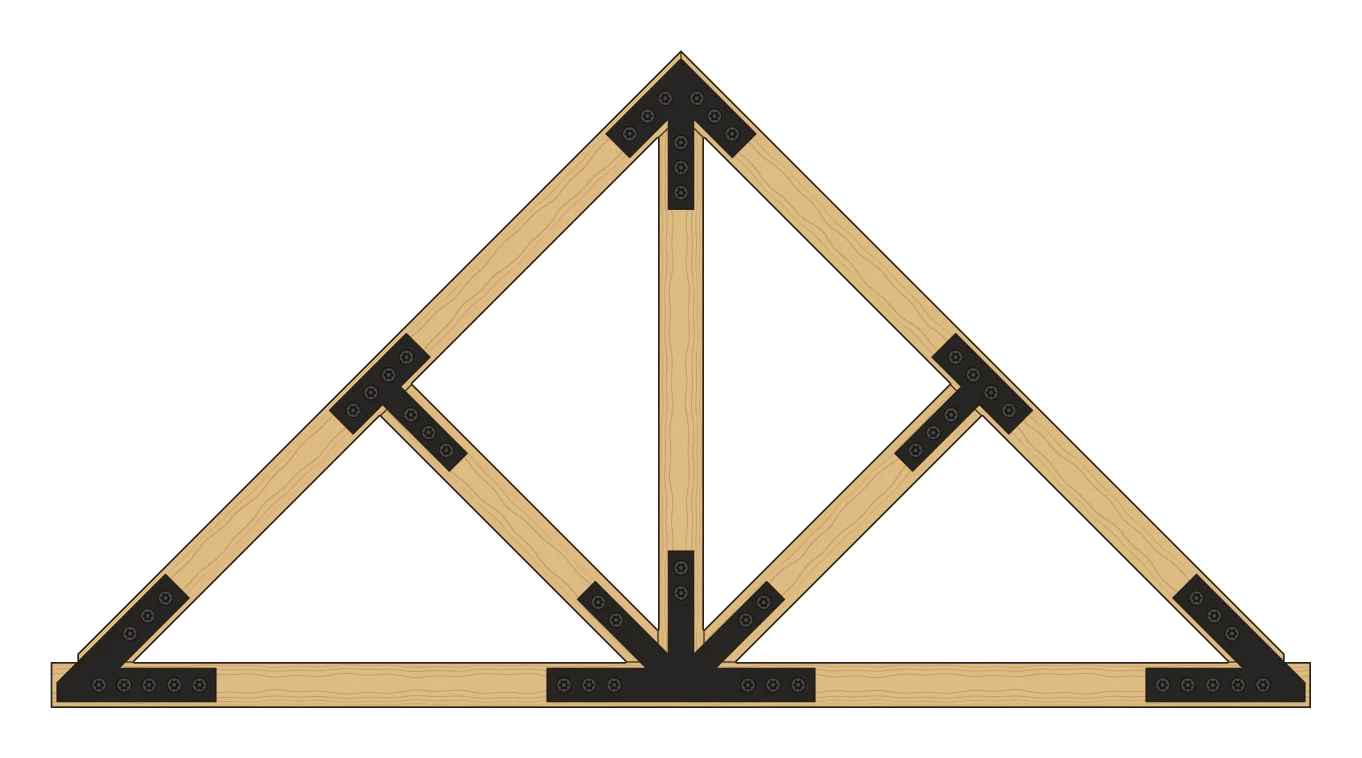

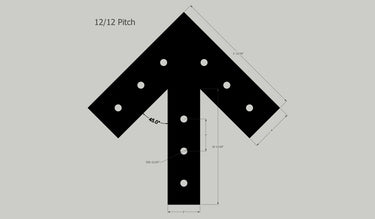

Elevation of a 12/12 king post truss with struts in 6x6 timbers, Taiga plates: a king post plate (W4) at the peak, a fan plate (F4) at the bottom center, a strut plate (Y4) where each strut meets its rafter, and a heel plate (VB4) at each heel.

03 Connectors

Set your dimensions, see the part, order it.

Our configurators draw the connector to your timbers in 3D and price it instantly. Each drawing below is a configurator's default part, drawn to scale.

  • Ships free in the lower 48 states.
  • 5% off orders over $2,000, 10% off over $5,000. No code needed.

04 Customization

Customization is free.

Everything we make is priced the same way: by the pounds of steel, plus the welding or bending it takes. Whether you pick a stock design, build your own in one of our online configurators, or send us a drawing, you pay for steel and shop time, never for the design.

Send us a sketch

If a stock design or configurator doesn't give you what you need, call us or send a sketch. We'll design the part with you, at no charge for the design. Changing a hole pattern, a width, or a spoke is often a quick answer on the phone.

We fabricate from plans

Builders, architects, and designers: send us your drawings, details, or a cut list, and we'll price them the way we price everything else. Structural design and approval stay with the project's engineer.

Request a quote (325) 400-1274

Three ways to order

The cutting file, and the king post truss plate (W4) cut from it

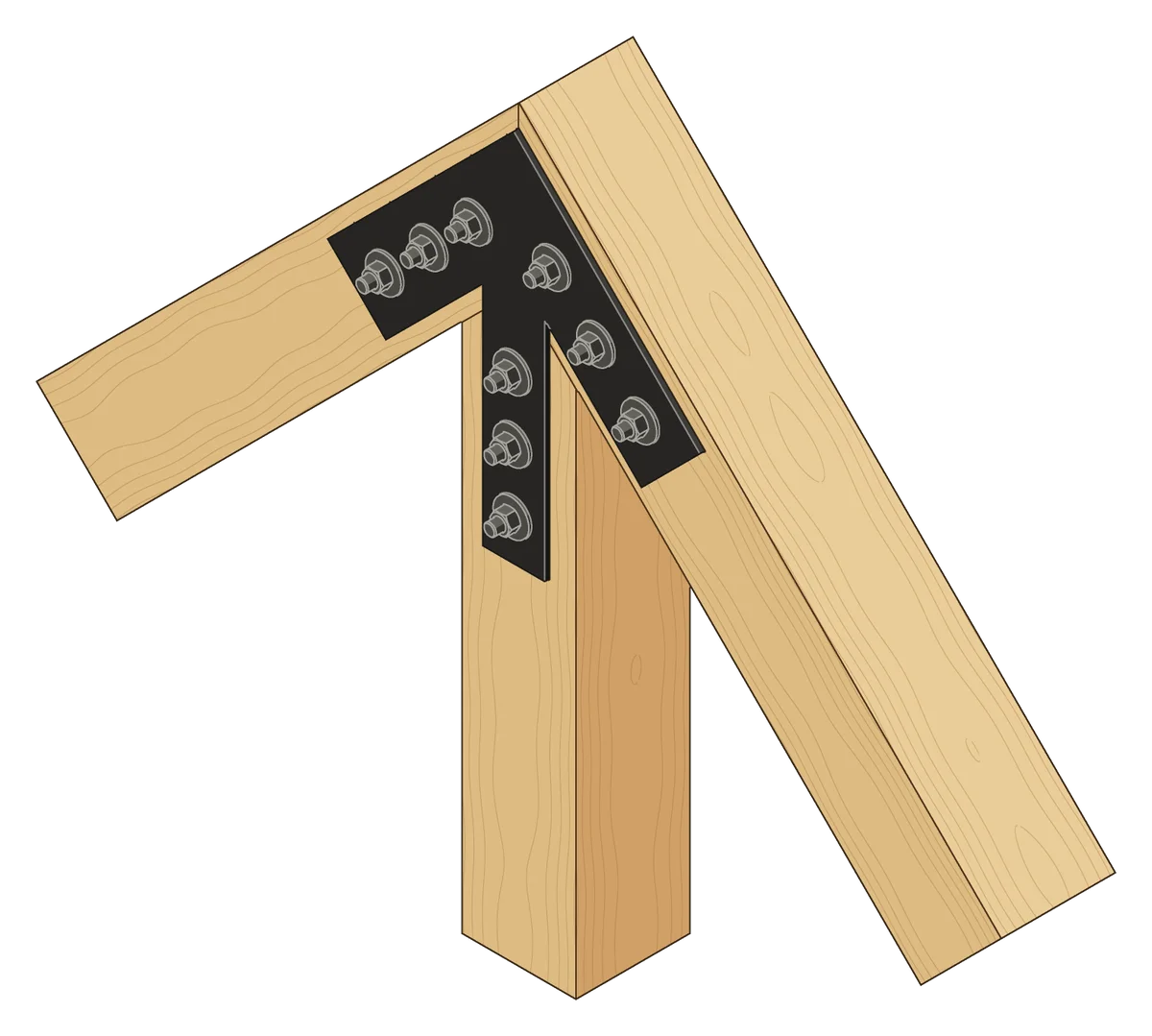

A king post truss plate (W4) bolted through two rafters and a king post at the peak, with threaded rod, washers, and nuts.
