Brackets

Timber Frame Brackets & Heavy Timber Connectors

Steel brackets for heavy timber, made to the size your timbers really are: post caps and post bases, joist hangers, angle brackets, and T and corner plates. Each is drawn in 3D and priced as you set it, cut and welded to order in Texas, and shipped free in the lower 48.

A steel post cap seating a timber beam on a timber post, bolted through its saddle and straps.

01 Post to beam

Post to beam brackets

Seat a beam on a post: one beam running over it, two meeting end to end, two turning a corner, or one crossing another.

  • Post cap: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Post cap

    From $61 · $133 as drawn

    3/16" A36 steel plate

    A saddle for the beam and a strap down each of two faces of the post, for one beam over a post or two meeting over it.

    What you set

    Length of saddle on beam
    5" to 1'-3"
    Height of saddle on beam
    5" to 10"
    Width of beam Pocket 1/16" larger
    3" to 1'-0"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Post cap

  • Corner post cap: the configurator’s default part, left hand, seen from outside the corner, drawn in place

    The configurator’s default part, left hand, seen from outside the corner, drawn from its own geometry.

    Corner post cap

    From $111 · $179 as drawn

    3/16" A36 steel plate

    Two saddles at a right angle, for a corner where the main beam and the crossing beam both end over the post. Made left or right hand.

    What you set

    Orientation
    Left or right hand
    Length of saddle on main beam
    6" to 1'-3"
    Width of main beam Pocket 1/16" larger
    3" to 1'-0"
    Length of saddle on secondary beam
    6" to 1'-3"
    Width of secondary beam Pocket 1/16" larger
    3" to 1'-0"
    Height of saddle on beam
    5" to 10"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Corner post cap

  • Cross post cap: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Cross post cap

    From $139 · $193 as drawn

    3/16" A36 steel plate

    Two saddles at a right angle, for a main beam that runs on past a crossing beam over the post.

    What you set

    Length of saddle on main beam
    9" to 1'-4"
    Width of main beam Pocket 1/16" larger
    3" to 1'-0"
    Length of saddle on secondary beam
    4 1/2" to 8"
    Width of secondary beam Pocket 1/16" larger
    3" to 10"
    Height of saddle on beam
    5" to 10"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Cross post cap

02 Post bases

Post bases

Stand a post on concrete with a 1" standoff that keeps its end grain off the slab.

  • Post base: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Post base

    From $63 · $114 as drawn

    3/16" A36 steel plate

    Holds a post to concrete: the post stands on 1" standoffs in the pocket, and an anchor goes through the bottom.

    What you set

    Width of base on post
    5" to 1'-3"
    Height of base on post
    7 1/2" to 1'-0"
    Post width Pocket 1/16" larger
    3" to 1'-0"
    Post fastener diameter Holes 1/16" larger
    3/16" to 1"
    Base fastener diameter Holes 1/16" larger
    1/2" to 1"

    Design yours: Post base

A concealed knife-plate post base, hidden in a slot cut in the post, is made by quote.

Request a quote

03 Beam to beam

Joist and beam hangers

Hang a joist or beam from the face of a header: its flanges in plain view, or hidden behind the joist's end.

  • Face-mount joist hanger: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Face-mount joist hanger

    From $31 · $57 as drawn

    3/16" A36 steel plate

    Hangs a joist from a header or a wall, its mounting flanges outside the joist, bolted to the header’s face.

    What you set

    Height of joist hanger
    3 1/2" to 1'-0"
    Width of mounting flange
    1 1/2" to 3"
    Width of beam flange
    2 1/2" to 5"
    Width of beam Pocket 1/16" larger
    1 1/2" to 10"
    Fastener diameter Holes 1/16" larger
    1/4" to 5/8"
    Corners
    Square or clipped
    Saddle
    Straight or angled

    Design yours: Face-mount joist hanger

  • Concealed joist hanger: the configurator’s default part, bolted to the header with its pocket open, before the joist goes in

    The configurator’s default part, drawn from its own geometry. Shown before the joist goes in.

    Concealed joist hanger

    From $30 · $57 as drawn

    3/16" A36 steel plate

    Hangs a joist from a header or a wall, its mounting flanges within the joist’s width, behind its end.

    What you set

    Height of joist hanger
    3 1/2" to 1'-0"
    Width of beam flange
    2 1/2" to 5"
    Width of beam Pocket 1/16" larger
    1 1/2" to 10"
    Fastener diameter Holes 1/16" larger
    1/4" to 5/8"
    Saddle
    Straight or angled

    Design yours: Concealed joist hanger

04 Angle brackets

Angle and L brackets

Join two timbers at a right angle: a post to a beam, a beam to a wall, or a pergola rafter.

  • Custom angle bracket: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Custom angle bracket

    From $23 · $33 as drawn

    1/4" A36 steel plate

    A right angle in 1/4" steel, for a post on a beam or any two timbers that meet square.

    What you set

    Height of angle bracket
    4" to 1'-0"
    Length of angle bracket
    4" to 1'-0"
    Width of angle bracket
    3" to 10"
    Fastener diameter Holes 1/16" larger
    1/4" to 3/4"
    Corners
    Square or clipped

    Design yours: Custom angle bracket

Ten stock sizes, 4" and 6" wide with 4" to 12" legs, are in the angle brackets collection.

See the stock angle brackets

05 Flat plates

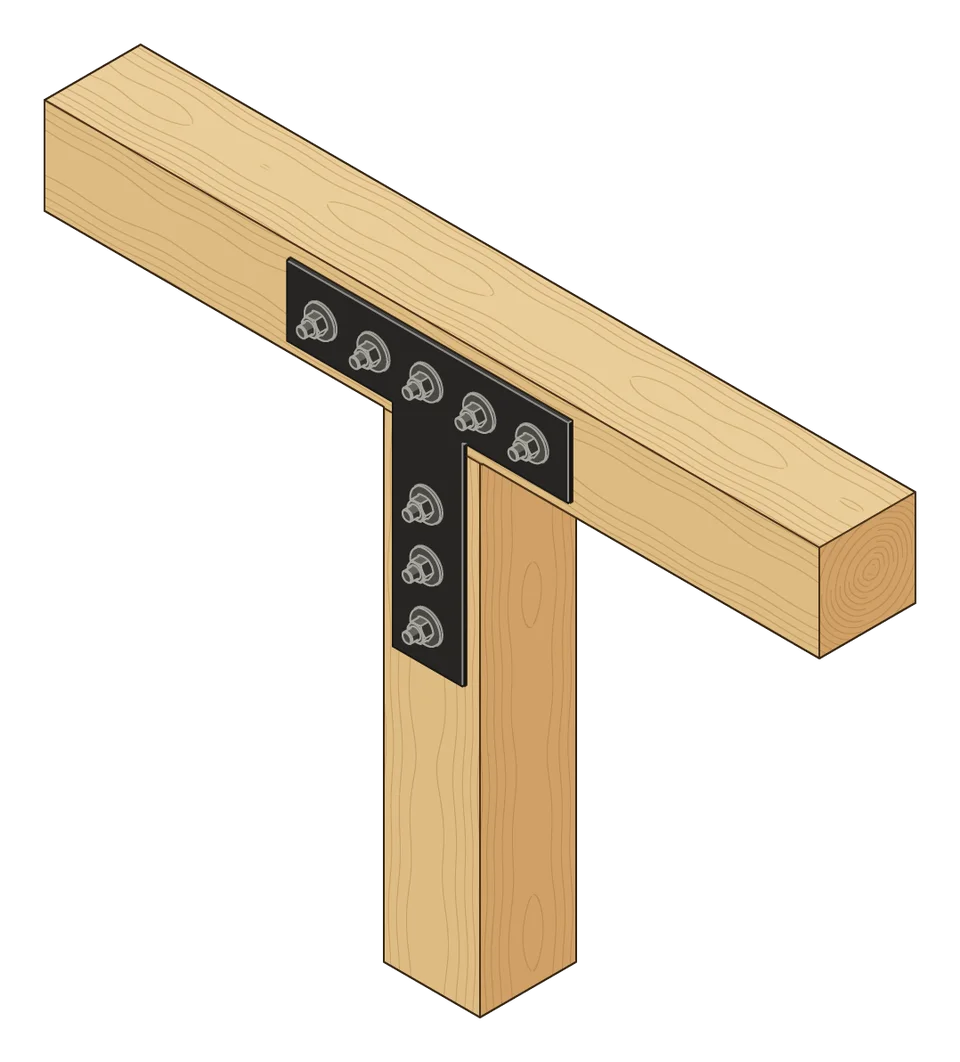

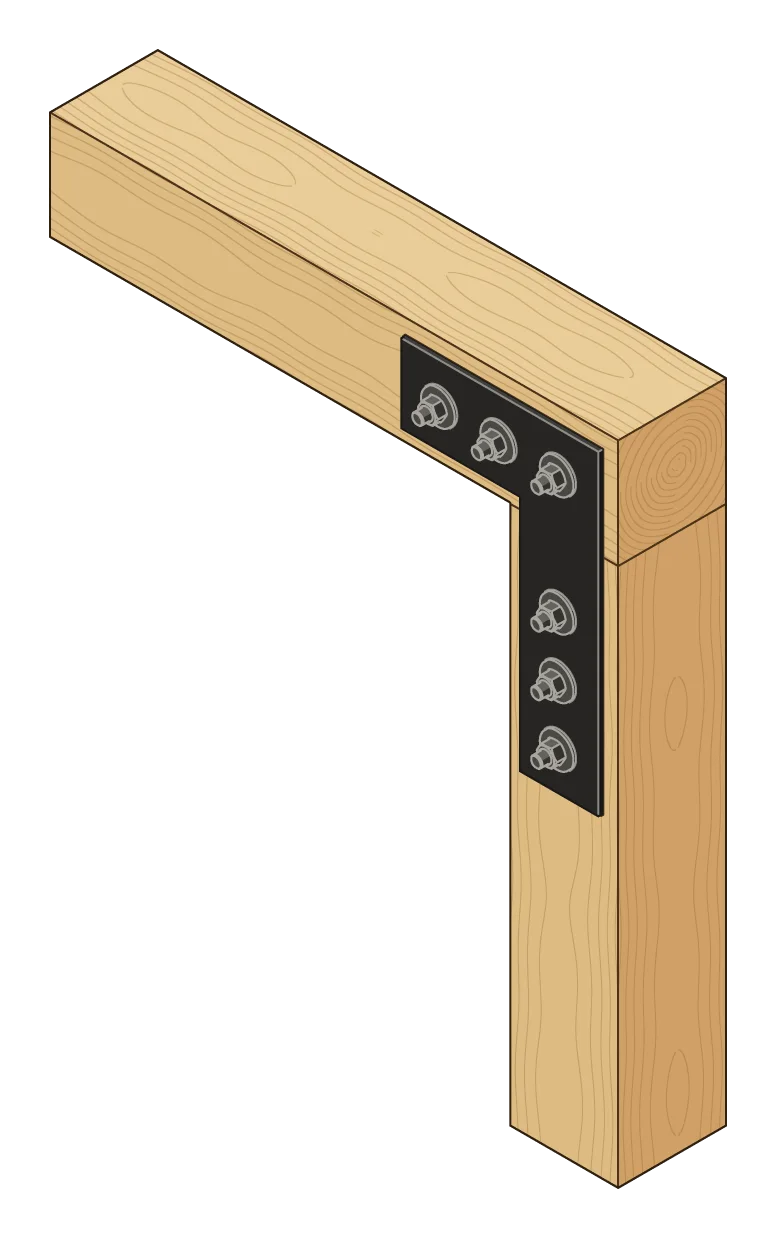

T and corner plates

Flat plates bolted over a post and the beam it carries: a T where the beam runs past the post, a corner where it ends there. As post brackets they cost less than a post cap, being flat steel with no welding, and they look like the truss plates on the rest of a frame. But the post and beam must be the same width, so their faces are flush where the plate lies across both; each joint takes a plate on each face, bolted through both timbers; and nothing wraps the beam or seats it on the post. A post cap is one welded piece made to the post and the beam each, a narrower post under a wider beam included. More shapes are on the plates page.

12" at this scale. Drawn from the Taiga collection’s cutting files.

06 Planning

By timber size

Every connector here is made to the size your timber really is, 4x4 to 12x12, surfaced or rough-sawn. A surfaced 6x6 is 5-1/2" square; a rough-sawn one is a full 6". The connector guide lists nominal, surfaced, and rough-sawn sizes side by side: how to measure a timber.

Knee braces

A knee brace runs at an angle from a post up to the beam it helps carry. We make the plates or brackets for its ends by quote: send the post and beam sizes and the brace's angle through the quote form, and we'll draw them with you, at no charge for the design.

Pergolas and pavilions

A pergola or pavilion in 6x6 to 12x12 timbers takes the same connectors: post bases on the slab, post caps under the beams, and joist hangers or angle brackets for the rafters. These cost more than hardware-store brackets because they're 3/16" and 1/4" steel plate rather than 12-gauge sheet, cut and welded to your timbers' real size with holes for through-bolts, which is what keeps them in proportion on big timbers.

07 Questions

Questions about timber connectors

Are these rated for loads?

No. Our connectors are architectural hardware, not engineered or load-rated. Makers such as Simpson Strong-Tie publish code-evaluated loads for their stock connectors; ours are made to your timbers for the fit and the look, and your engineer decides where one can carry load.

What steel and finish are they?

A36 steel plate: 3/16" for the post caps, post bases, and joist hangers, and 1/4" for the angle brackets. Bare steel, or matte black powder coat added in the cart. Galvanizing is by quote.

Are bolts included?

No. Holes are cut 1/16" larger than the fastener you choose in the configurator, and the timber connector guide explains the choices.

What if my timbers are bigger?

The configurators take 4x4 to 12x12 timbers. For bigger timbers, or a joint none of them covers, send your sizes or drawings through the quote form. There's no charge for design.

When will my connectors ship?

Every connector is cut and welded to order in our shop in Texas, and the current lead time shows in your cart before you check out. Shipping is free in the lower 48 states.
