Post Caps & Post Bases for Heavy Timber

Heavy steel connectors for the top and bottom of a timber post, made to the size your timbers really are. Post caps seat a beam on a post: one for a single beam, one for a corner, and one for crossing beams. The standoff post base holds a post to concrete, 1" above the slab. Each takes posts and beams from 4x4 to 12x12, surfaced or rough-sawn.

Set your sizes in the configurator, watch the part drawn in 3D, and see its price as you go. Every part is laser cut from 3/16" steel plate and welded to order in Texas, and ships free in the lower 48. These are also called column caps and column bases.

Not sure what size to enter, or which bolts the holes take? Our heavy timber connector guide covers measuring timbers, steel, bolts, and finish.

01 Configurators

Made to your dimensions

Each configurator draws your part in 3D as you set its sizes and prices it as you go, by its steel and its weld. “From” is the least a part from it costs; “as drawn” is the price of the part in the drawing. Lengths set in 1/8" steps, fastener diameters in 1/16".

  • Post cap: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Post cap

    From $61 · $133 as drawn

    3/16" A36 steel plate

    A saddle for the beam and a strap down each of two faces of the post, for one beam over a post or two meeting over it.

    What you set

    Length of saddle on beam
    5" to 1'-3"
    Height of saddle on beam
    5" to 10"
    Width of beam Pocket 1/16" larger
    3" to 1'-0"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Post cap

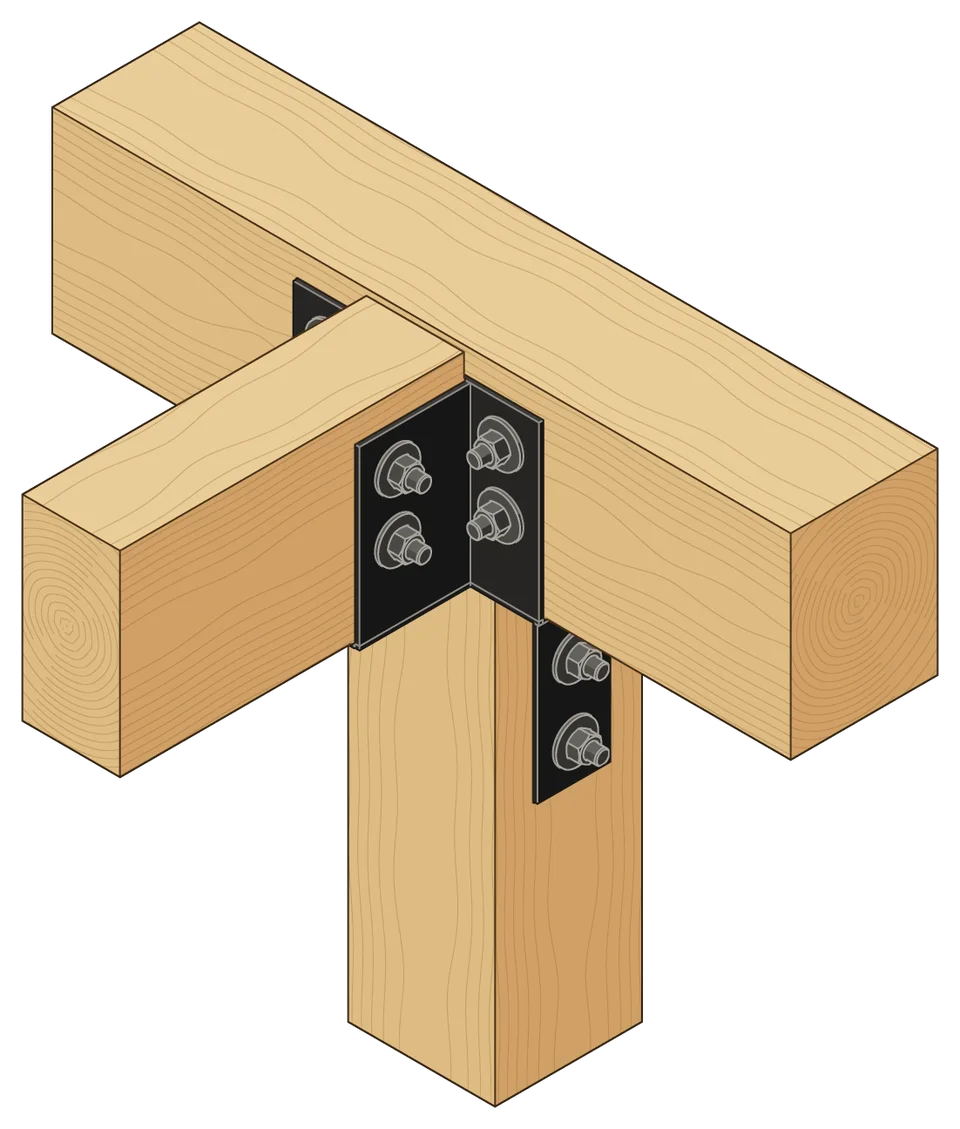

  • Cross post cap: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Cross post cap

    From $139 · $193 as drawn

    3/16" A36 steel plate

    Two saddles at a right angle, for a main beam that runs on past a crossing beam over the post.

    What you set

    Length of saddle on main beam
    9" to 1'-4"
    Width of main beam Pocket 1/16" larger
    3" to 1'-0"
    Length of saddle on secondary beam
    4 1/2" to 8"
    Width of secondary beam Pocket 1/16" larger
    3" to 10"
    Height of saddle on beam
    5" to 10"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Cross post cap

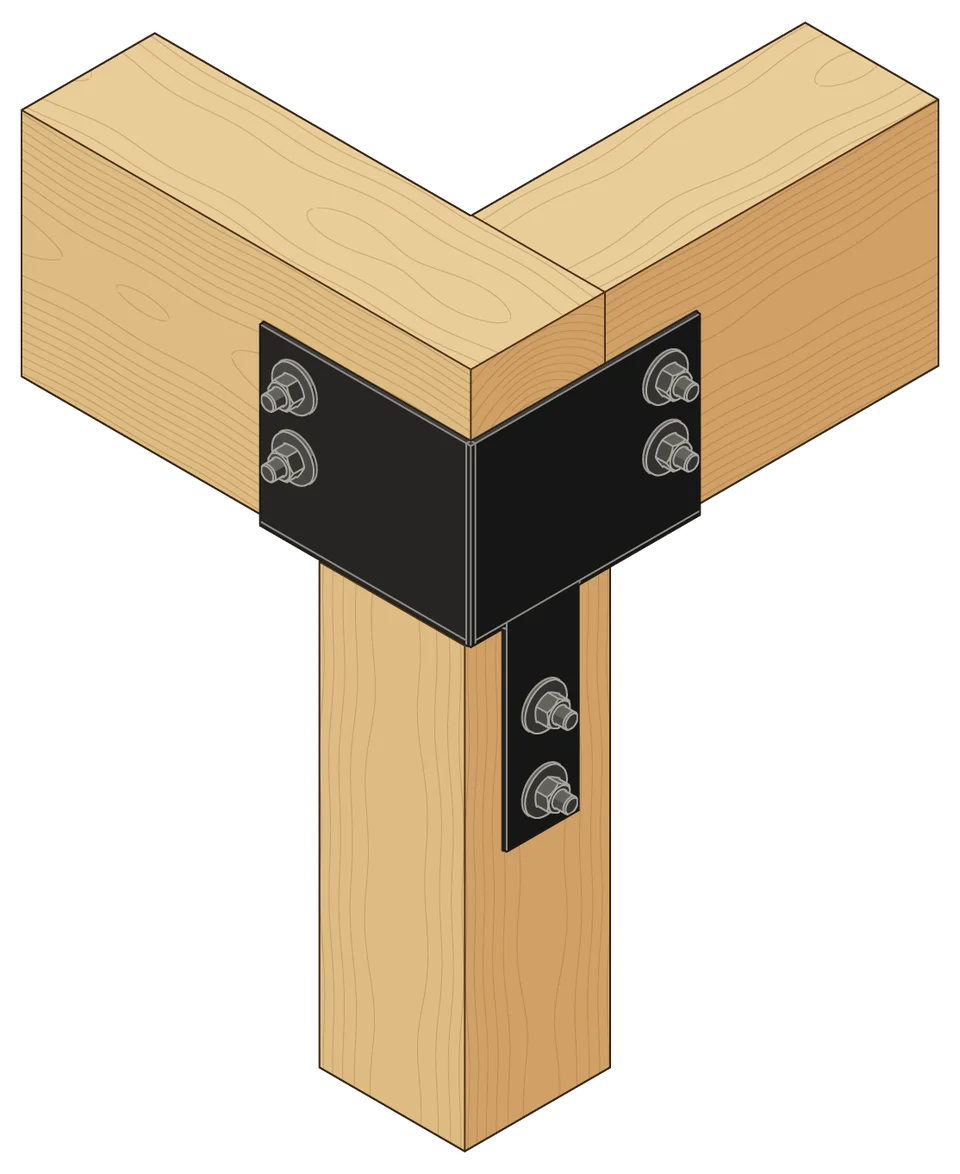

  • Corner post cap: the configurator’s default part, left hand, seen from outside the corner, drawn in place

    The configurator’s default part, left hand, seen from outside the corner, drawn from its own geometry.

    Corner post cap

    From $111 · $179 as drawn

    3/16" A36 steel plate

    Two saddles at a right angle, for a corner where the main beam and the crossing beam both end over the post. Made left or right hand.

    What you set

    Orientation
    Left or right hand
    Length of saddle on main beam
    6" to 1'-3"
    Width of main beam Pocket 1/16" larger
    3" to 1'-0"
    Length of saddle on secondary beam
    6" to 1'-3"
    Width of secondary beam Pocket 1/16" larger
    3" to 1'-0"
    Height of saddle on beam
    5" to 10"
    Width of strap on post
    2" to 6"
    Length of strap on post
    7 1/2" to 10"
    Post width Spacing 1/16" wider
    3" to 1'-3"
    Fastener diameter Holes 1/16" larger
    3/16" to 1"

    Design yours: Corner post cap

  • Post base: the configurator’s default part, drawn in place

    The configurator’s default part, drawn from its own geometry.

    Post base

    From $63 · $114 as drawn

    3/16" A36 steel plate

    Holds a post to concrete: the post stands on 1" standoffs in the pocket, and an anchor goes through the bottom.

    What you set

    Width of base on post
    5" to 1'-3"
    Height of base on post
    7 1/2" to 1'-0"
    Post width Pocket 1/16" larger
    3" to 1'-0"
    Post fastener diameter Holes 1/16" larger
    3/16" to 1"
    Base fastener diameter Holes 1/16" larger
    1/2" to 1"

    Design yours: Post base

Need a size outside these ranges, or a part they don’t make? Request a quote
