Peak, with a king post

King Post Truss Plate for 6"–10" Timbers

Massif Collection · Part W6

$66.00

Ships free in the lower 48 states.
5% off orders over $2,000, 10% off over $5,000. No code needed.

W6 at 12/12 pitch: the shop drawing from its cutting file, w6-1212.dxf, with its dimensions

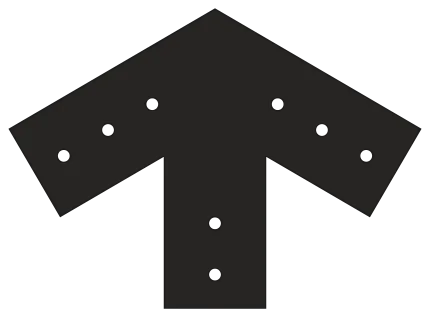

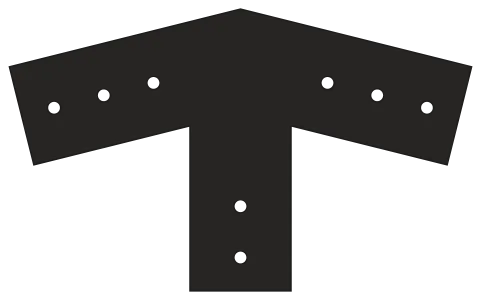

Pitch 12/12

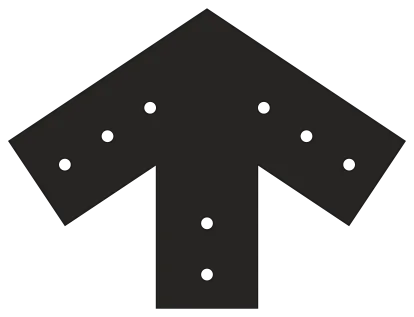

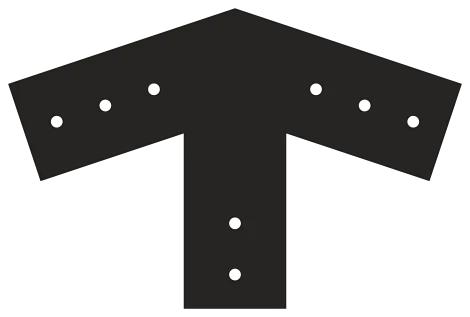

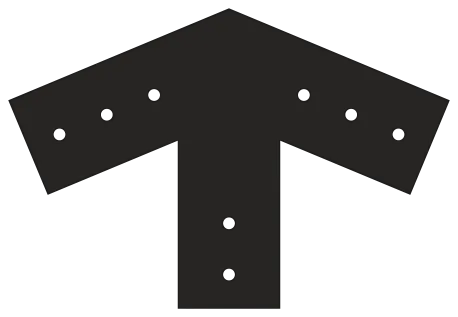

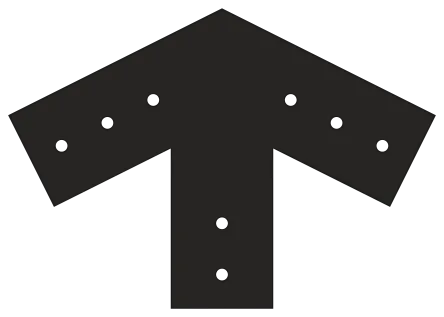

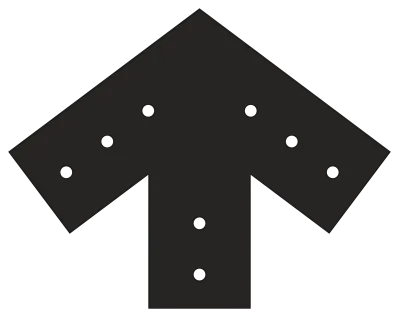

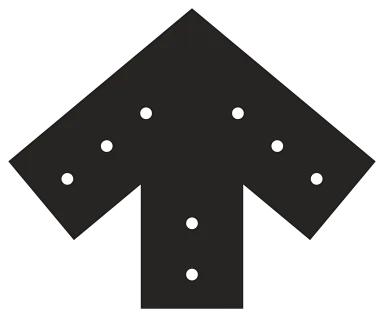

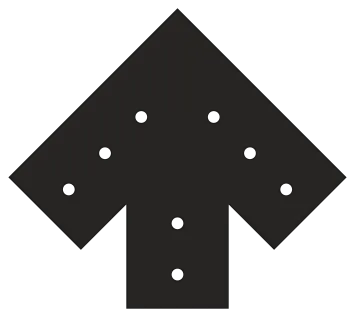

3/12 14.0° 4/12 18.4° 5/12 22.6° 6/12 26.6° 7/12 30.3° 8/12 33.7° 9/12 36.9° 10/12 39.8° 12/12 45.0°

Thickness

3/16" Decorative $66 1/4" Structural $88

3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

Quantity

01 Description

About the W6

The W6 plate is useful for connecting rafters to king posts at the peak of a truss. 6" wide plates look good on timbers ranging in width from 6" to 10".

3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

02 In a truss

Where it goes

The W6 on a truss drawn from the cutting files, marked in red.

Massif king post truss, with the W6 marked

See every Massif plate in a truss
