Strut to rafter

Strut Truss Plate for 6"–10" Timbers

Esker Collection · Part YE6

$44.00

Ships free in the lower 48 states.
5% off orders over $2,000, 10% off over $5,000. No code needed.

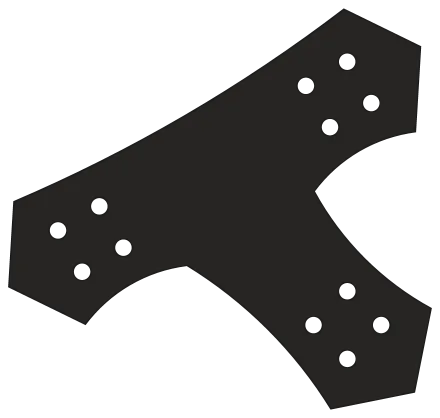

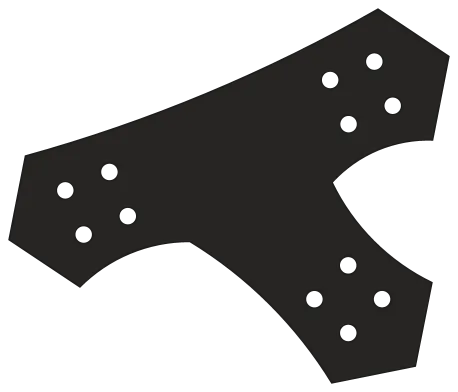

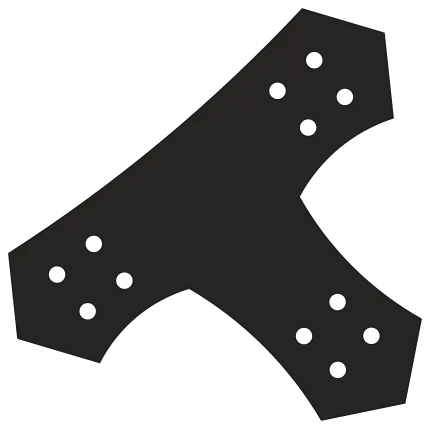

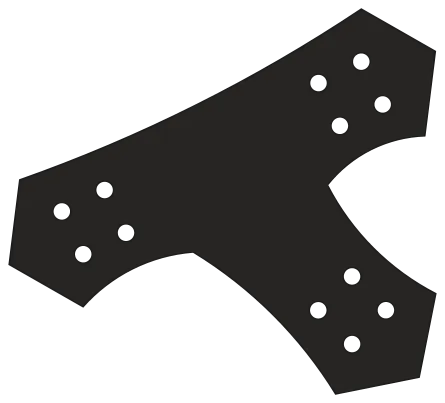

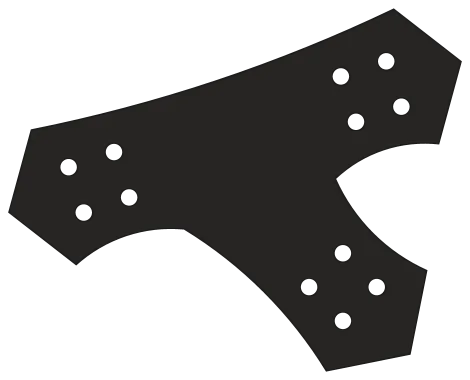

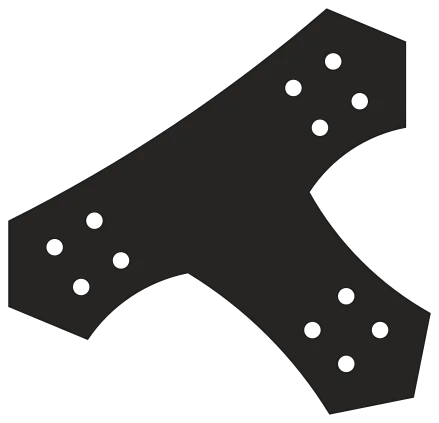

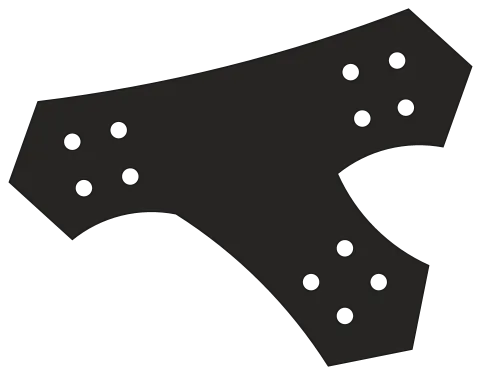

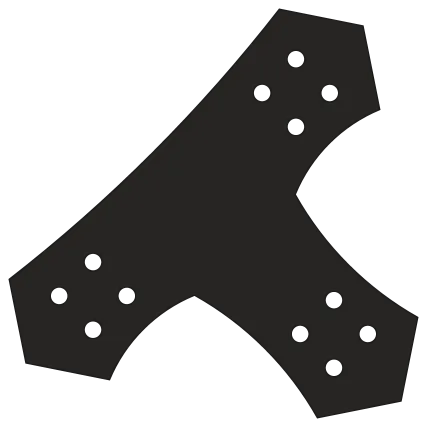

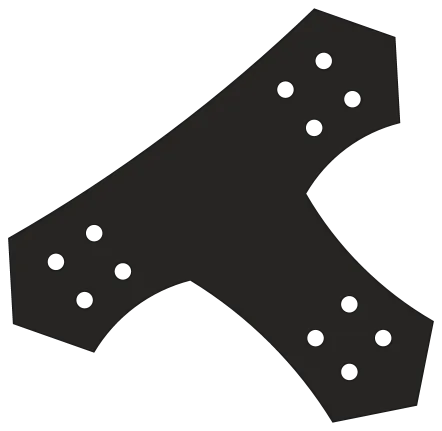

Strut truss plate (YE6) at 12/12 pitch: the shop drawing from its cutting file, ye6-1212.dxf, with its dimensions

Pitch 12/12

3/12 14.0° 4/12 18.4° 5/12 22.6° 6/12 26.6° 7/12 30.3° 8/12 33.7° 9/12 36.9° 10/12 39.8° 12/12 45.0°

Thickness

3/16" Decorative $44 1/4" Structural $58

3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

Quantity

01 Description

About the strut truss plate

The Esker strut truss plate is useful for connecting rafters to struts. 6" wide plates look good on timbers ranging in width from 6" to 12". 3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

02 In a truss

Where it goes

The strut truss plate (YE6) on a truss drawn from the cutting files, marked in red.

Esker king post truss, with the strut truss plate (YE6) marked

See every Esker plate in a truss
