Peak, with a welded ridge beam saddle

Ridge Beam Truss Saddle for 4"–8" Timbers

Taiga Collection · Part W4 Saddle

$81.00

  • Ships free in the lower 48 states.
  • 5% off orders over $2,000, 10% off over $5,000. No code needed.

Fitted after you order

We fit every saddle with you after the order: the ridge beam’s size, the saddle’s height, and whether the beam ends at the plate or passes through. None of it changes the price.

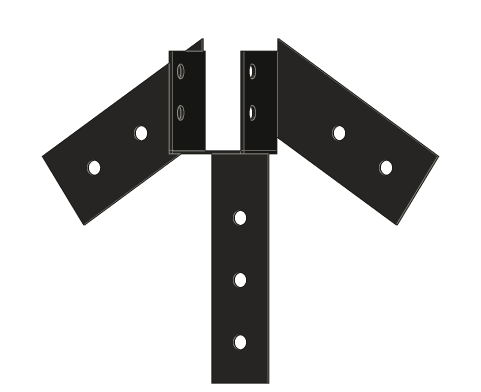

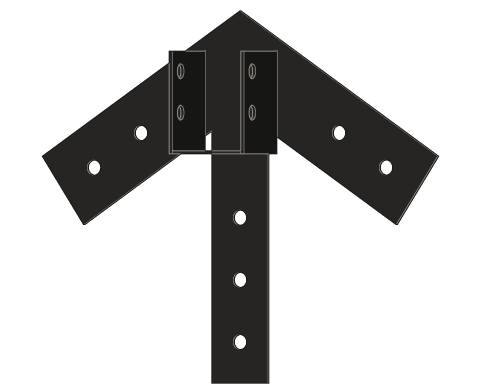

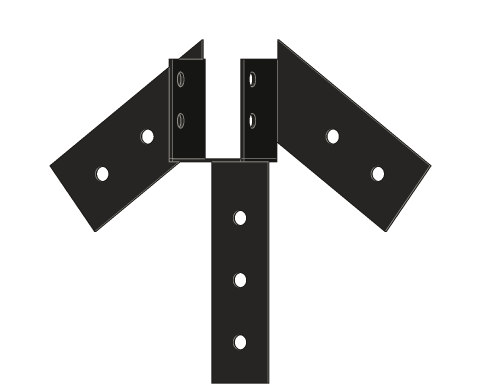

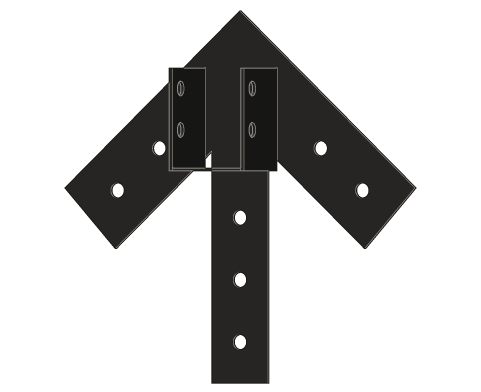

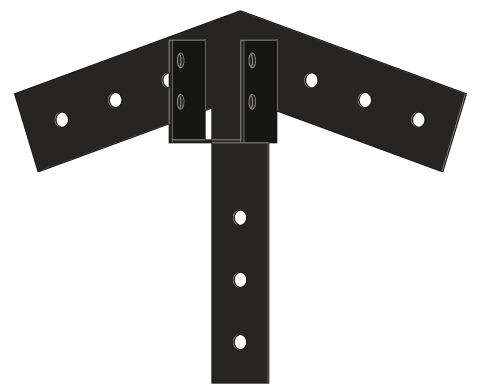

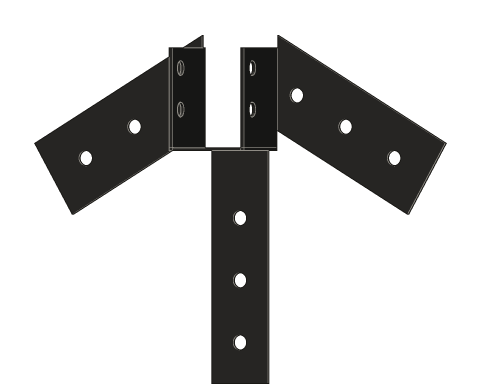

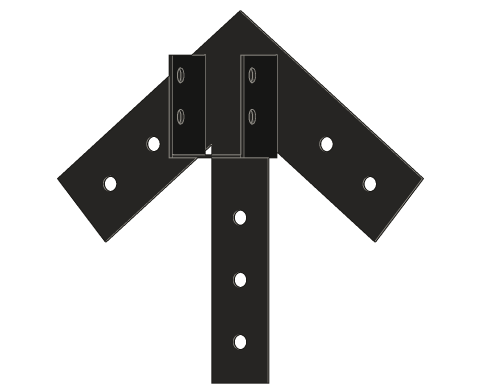

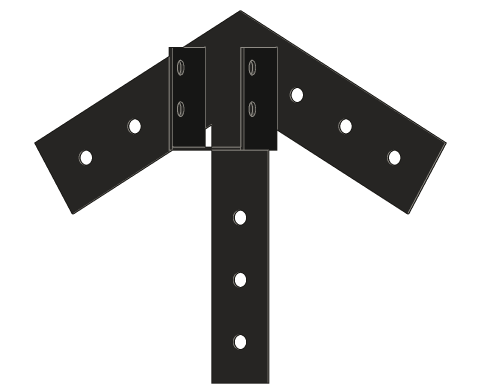

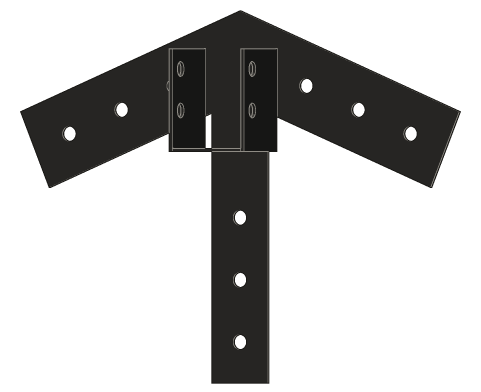

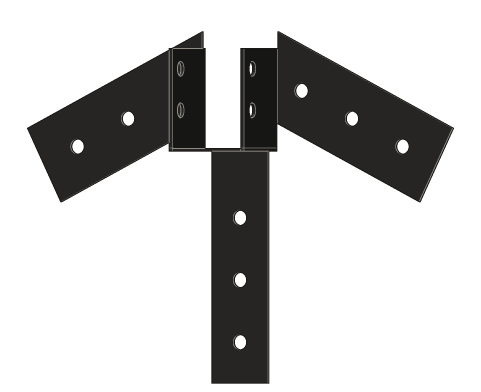

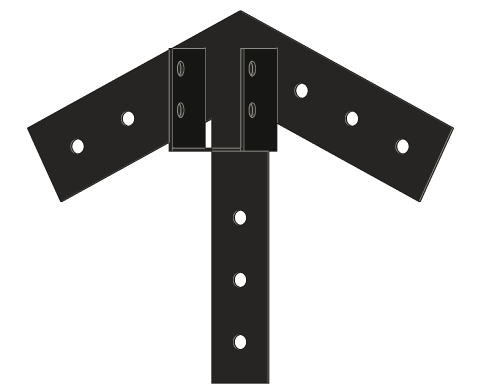

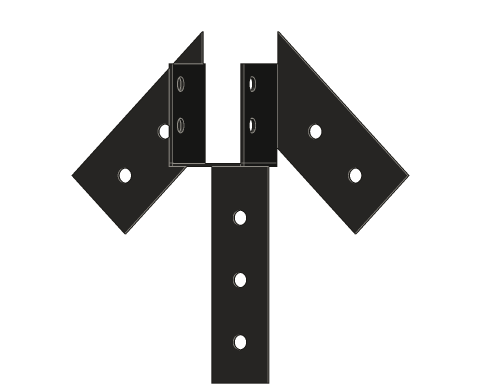

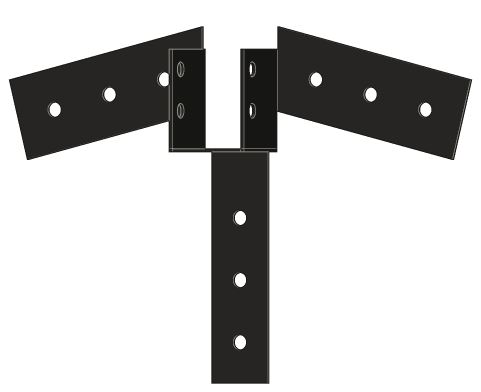

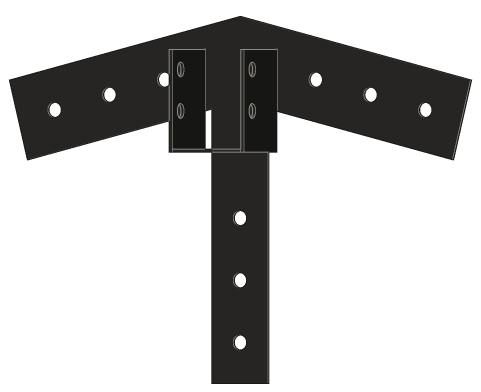

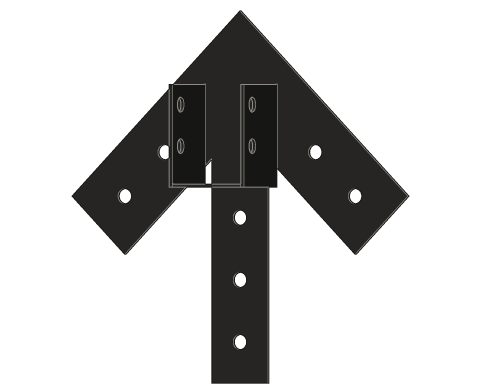

W4 Saddle at 12/12 pitch, 3/16" steel: the ridge beam ends at the plate W4 Saddle at 12/12 pitch, 3/16" steel: cut for the ridge beam to pass through
View

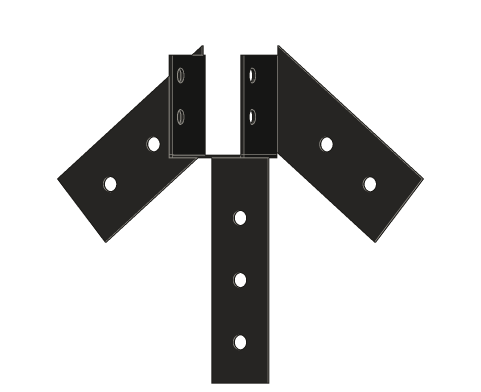

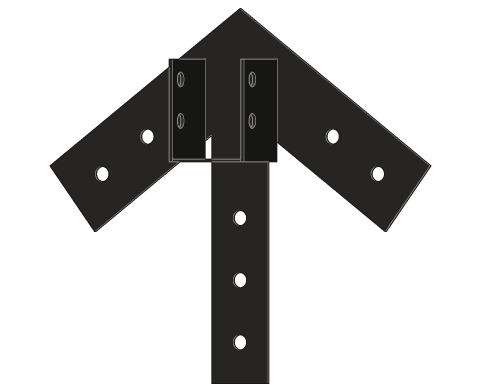

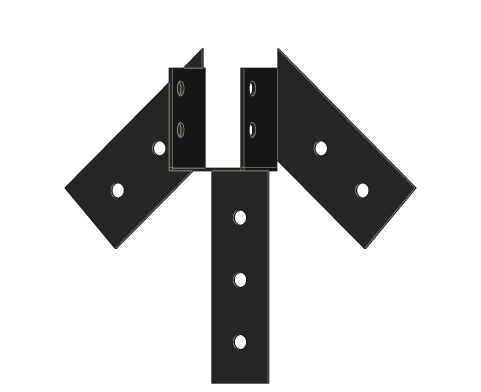

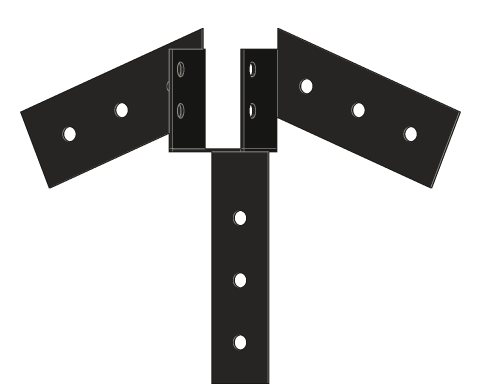

The ridge beam stops at the saddle. The truss’s other face takes a plain W4. The ridge beam runs on through the truss, and the plate on each face is cut away for it.

Pitch 12/12

3/12 14.0° 4/12 18.4° 5/12 22.6° 6/12 26.6° 7/12 30.3° 8/12 33.7° 9/12 36.9° 10/12 39.8° 11/12 42.5° 12/12 45.0°

Thickness

3/16" Decorative $81 1/4" Structural $94

3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

Pick the pitch and steel here. We contact you after your order to settle the fit.

Questions first? Call (325) 400-1274 or request a quote.

01 Description

About the W4 Saddle

The W4 saddle plate is exactly like our W4 plate but has a welded saddle for a ridge beam. It therefore connects the top chords, king post, and a ridge beam in one assembly. The connector can be made for pass-through ridge beams or ridge beams that terminate at the connector.

Note: There are many ways to configure this kind of connection including notching the plate for the ridge beam to pass through, the width of the saddle, the vertical location of the saddle, etc. None of these changes affect the price but they do affect the fitment. We will contact you after your order to ensure we fabricate the connector to fit your application perfectly.

3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.



02 In a truss

Where it goes

At the peak of a Taiga truss, drawn at 9/12 both ways. Yours is fitted to your own frame.

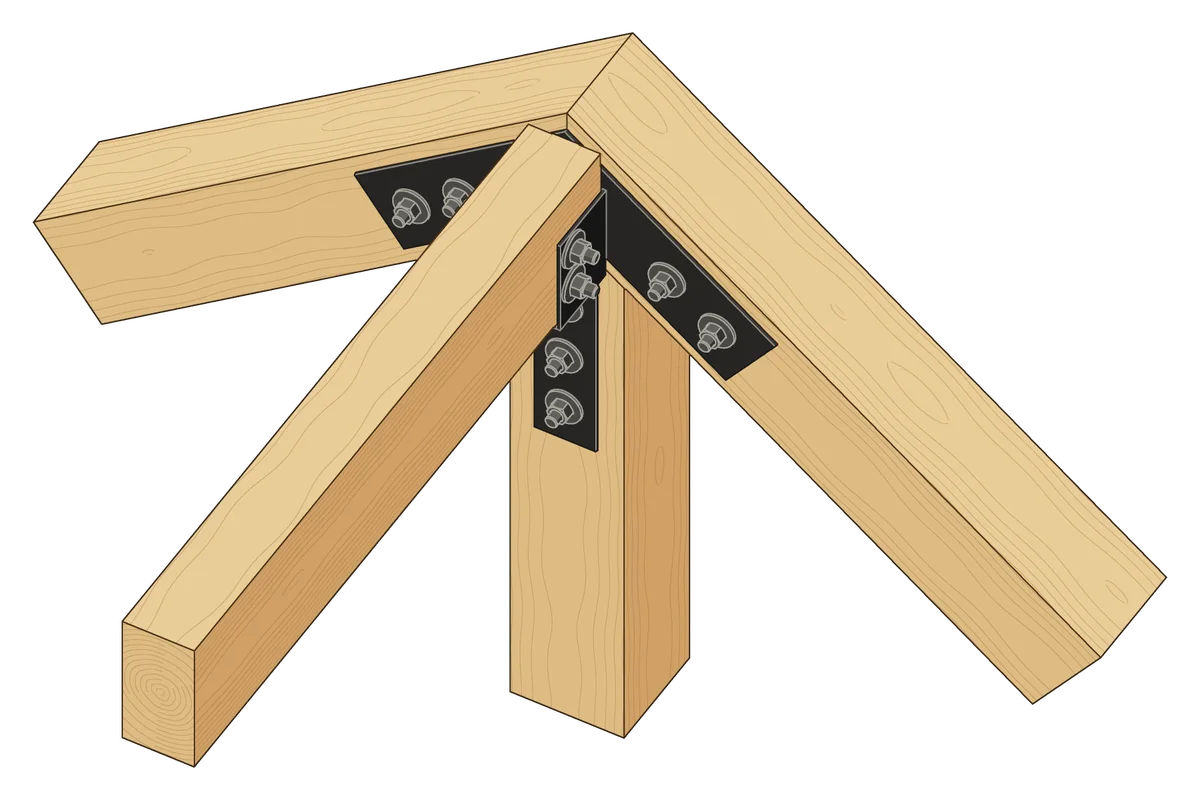

A Taiga truss’s peak at 9/12 with the W4 Saddle, the ridge beam ending at the plate

Ends at the plate

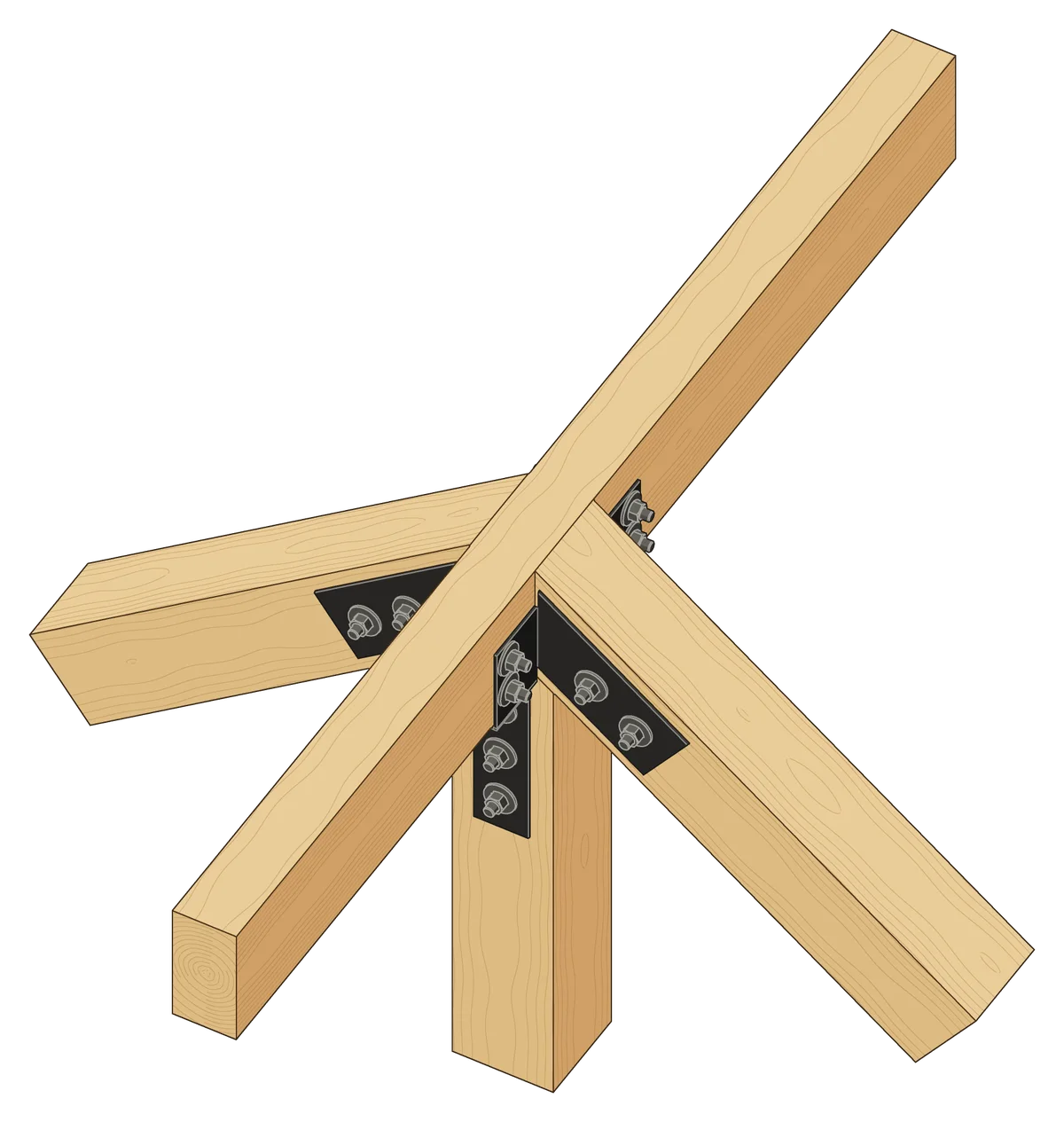

A Taiga truss’s peak at 9/12 with the W4 Saddle, the ridge beam passing through the truss

Passes through
