F4

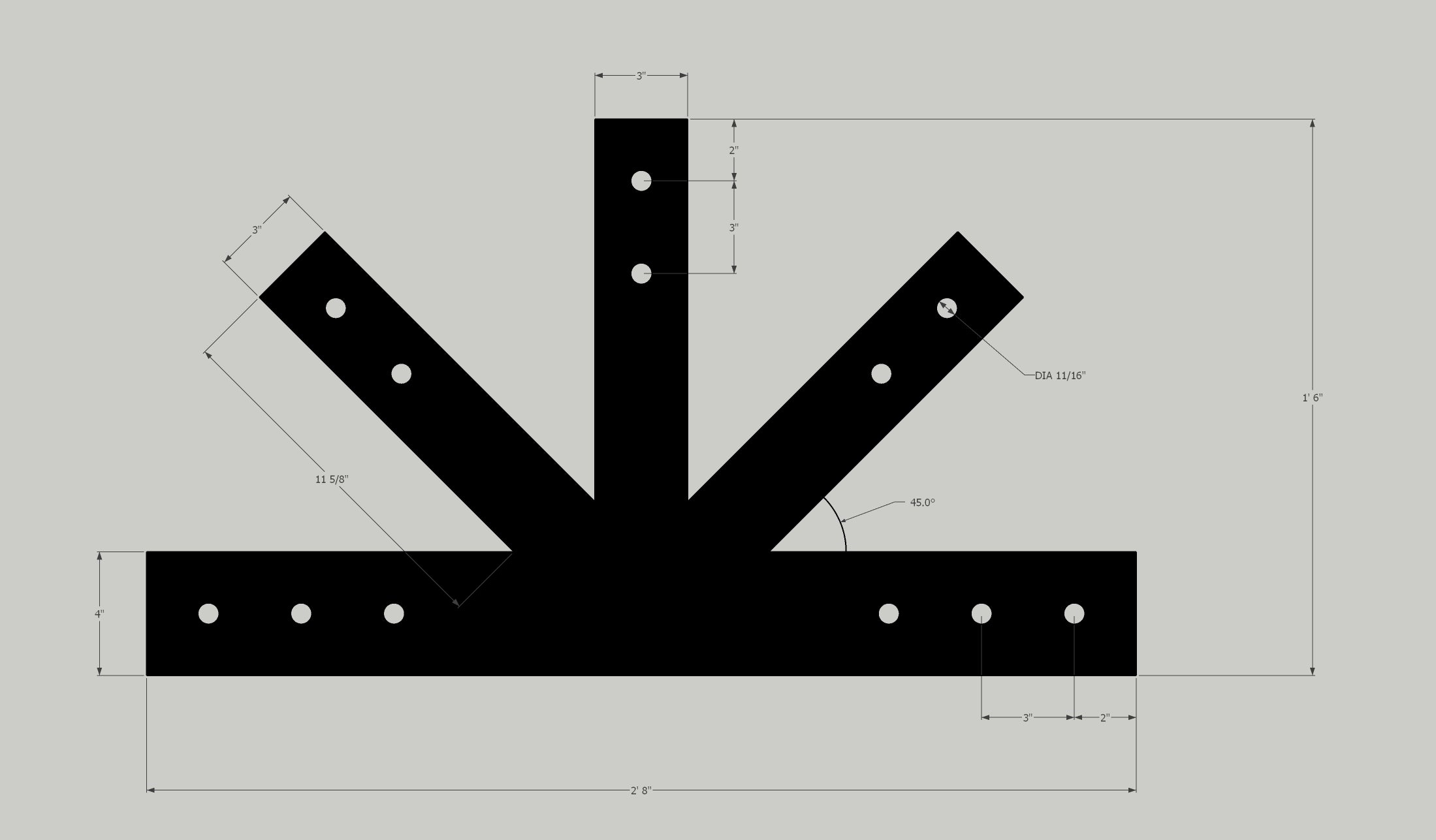

The F4 is a 5-spoke "fan plate". Fan plates are used to connect the bottom tie beam of a truss to two struts and a king post. The F4 has 4" wide spokes along the tie beam and 3" wide spokes on the king post and struts. Struts radiate out at 45° angles.

To see dimensions, hover over image to magnifer (desktop) or click image and zoom in (mobile).

Please select the plate pitch and thickness below
Black powder coating can be added at checkout.

$ 58.00
