VB6
The VB6 plate is useful for connecting truss bottom chords to top chords where the top chord sits on the bottom chord.

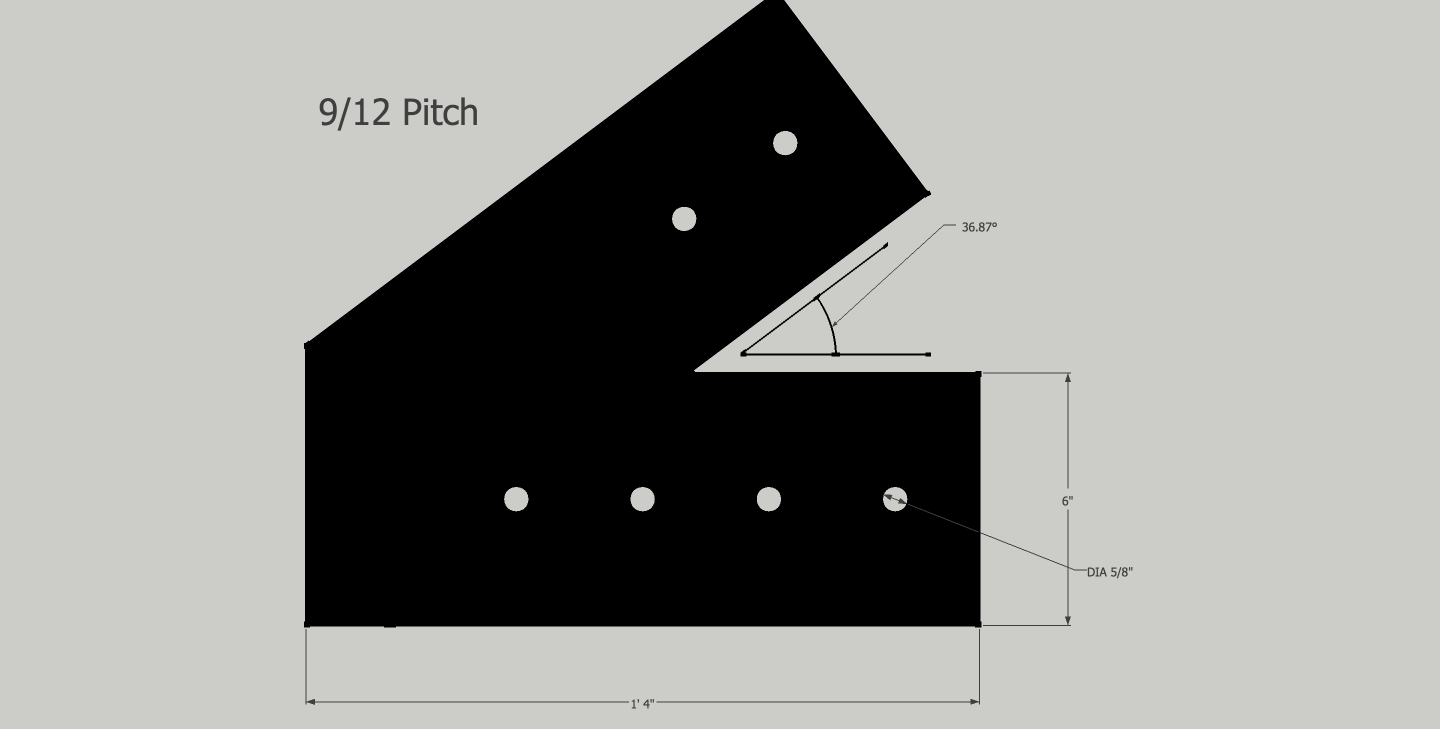

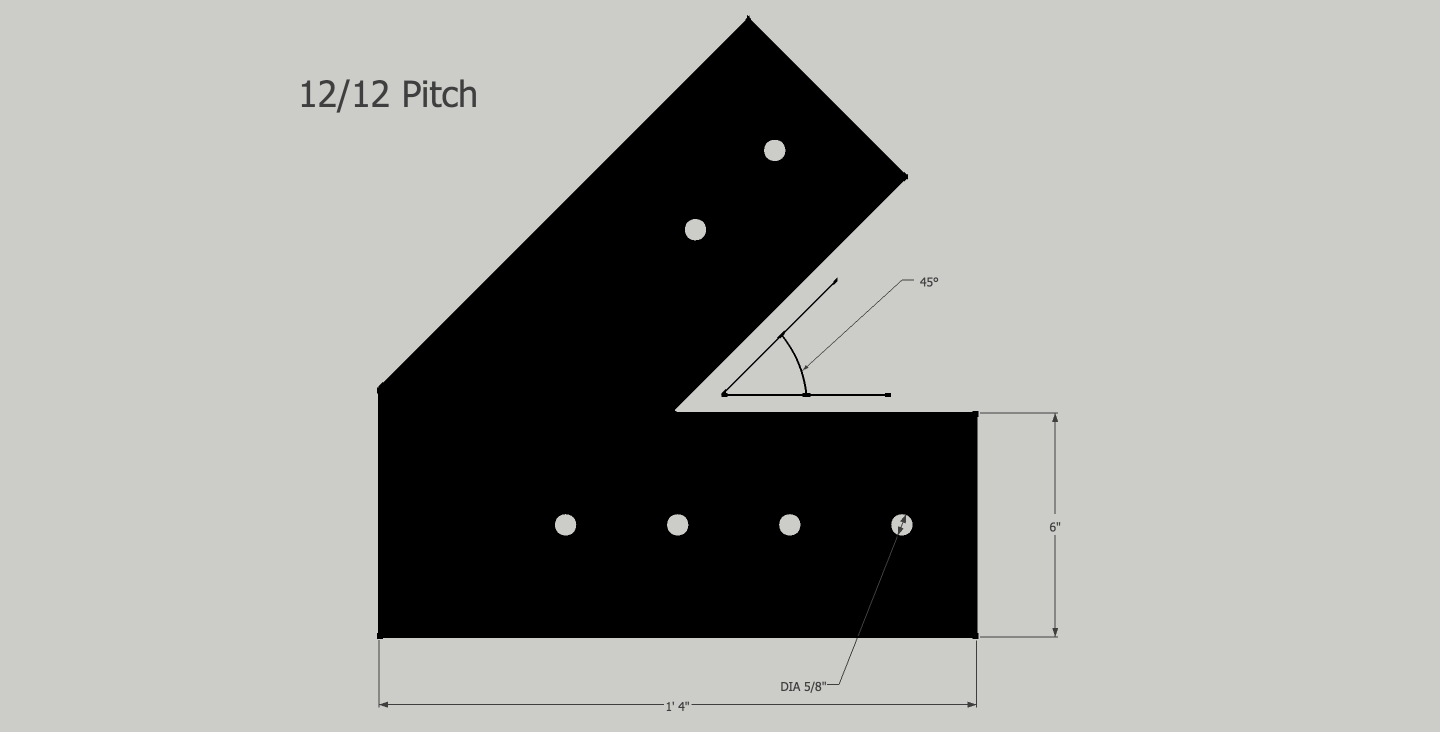

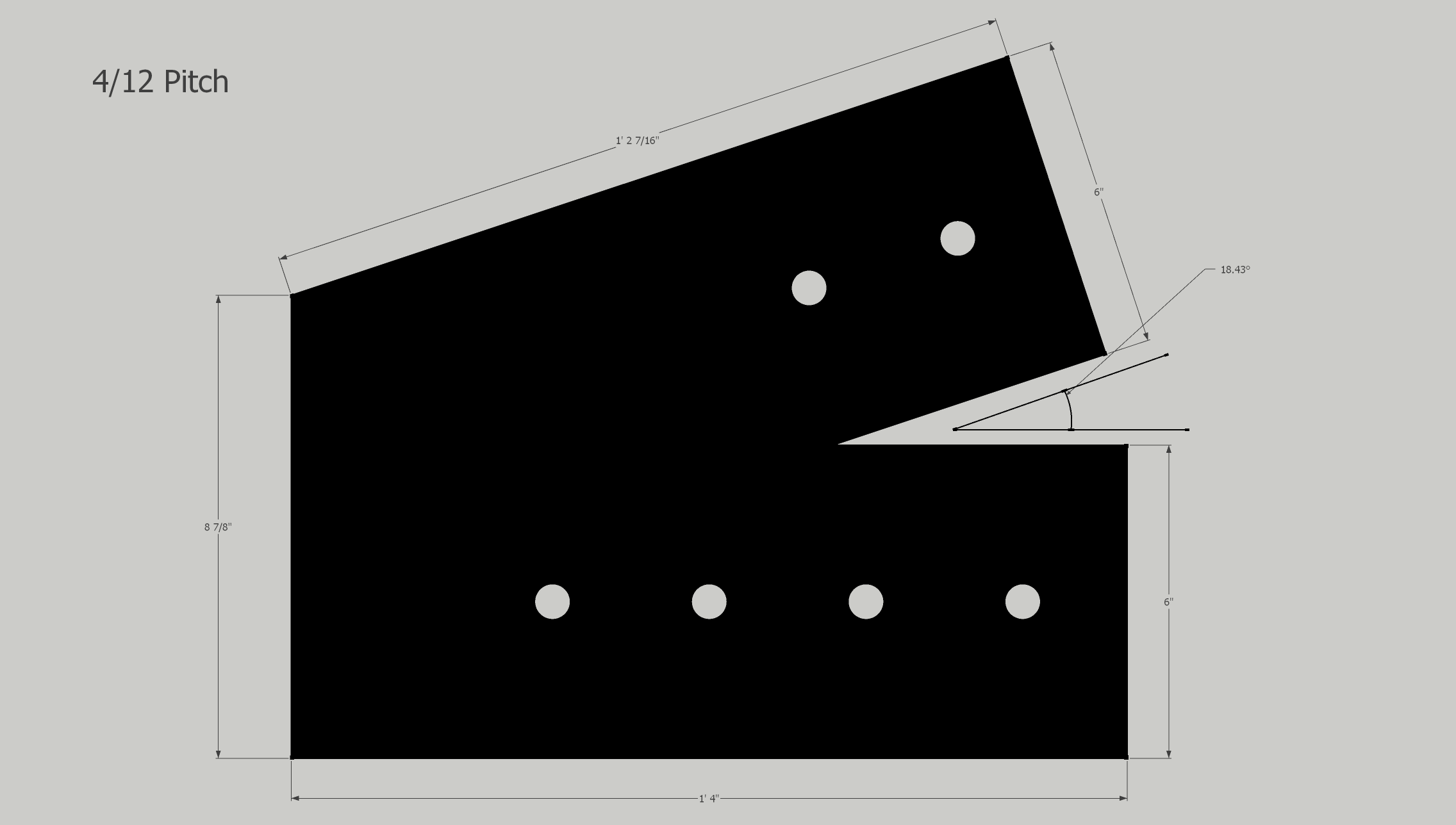

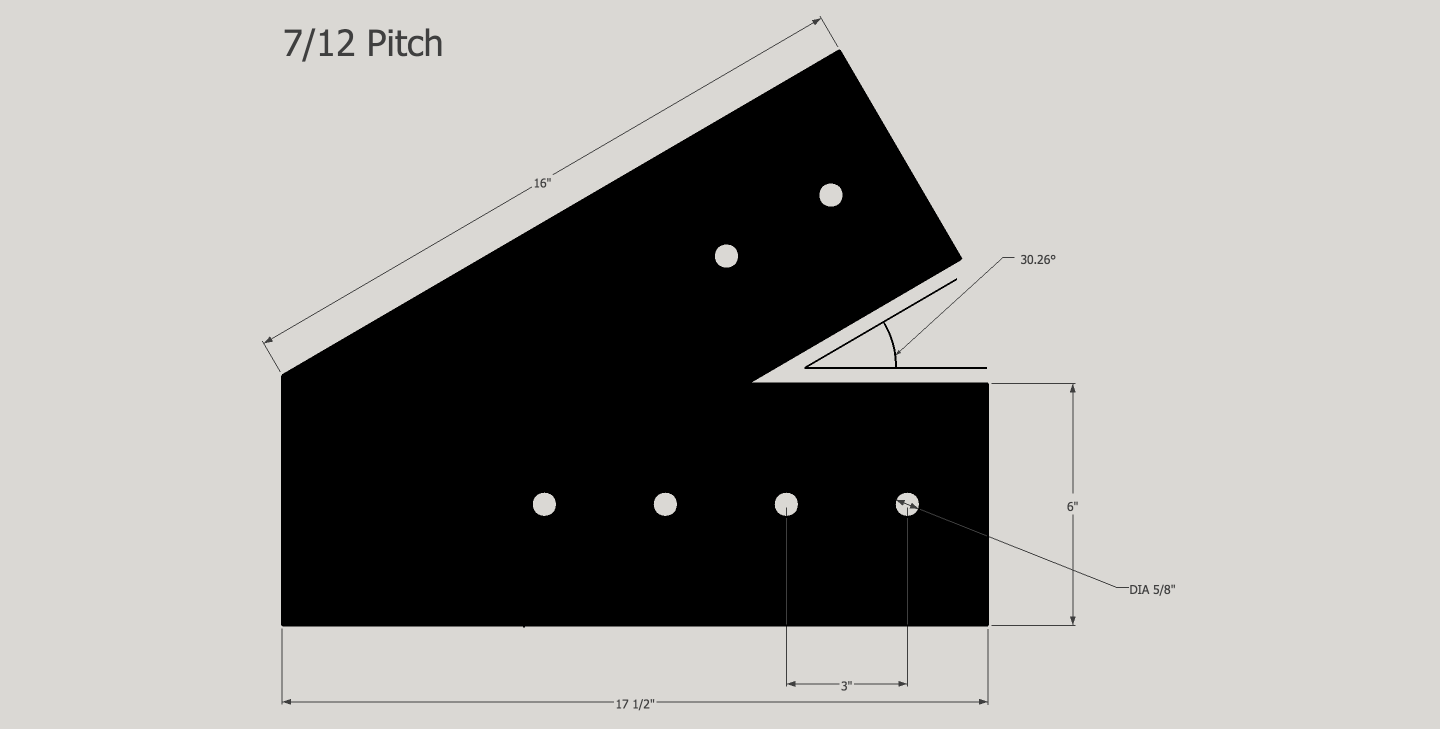

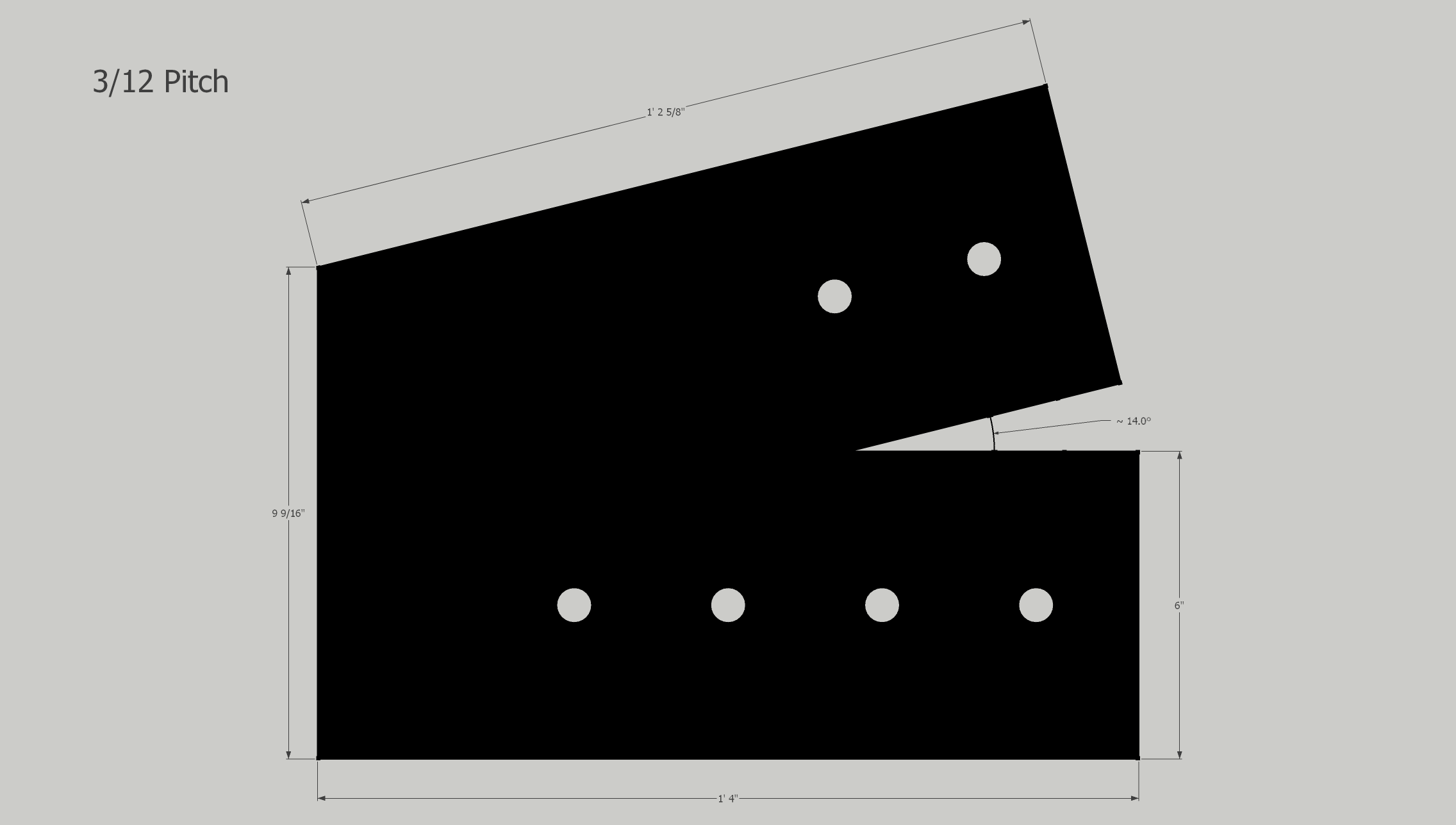

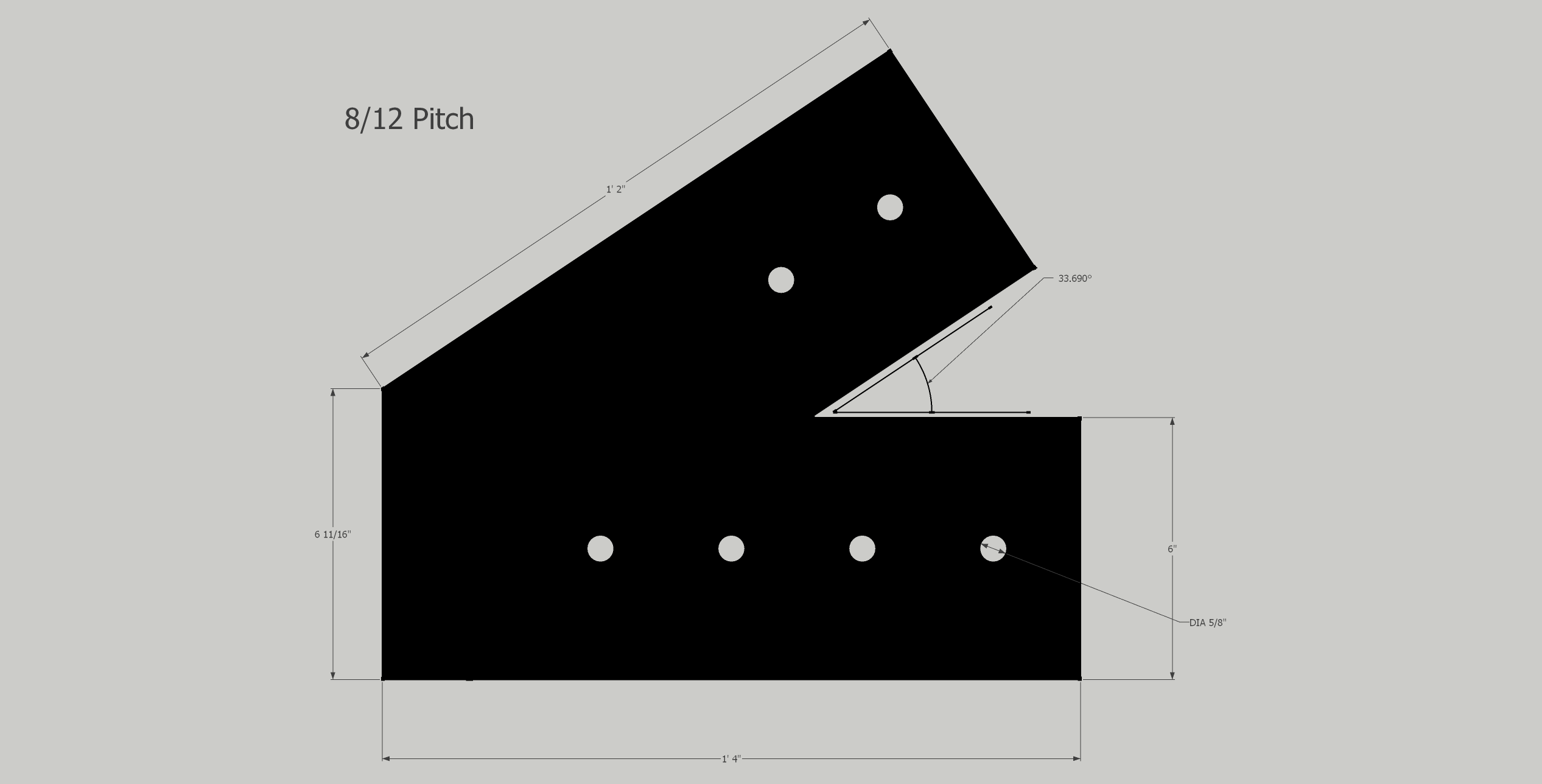

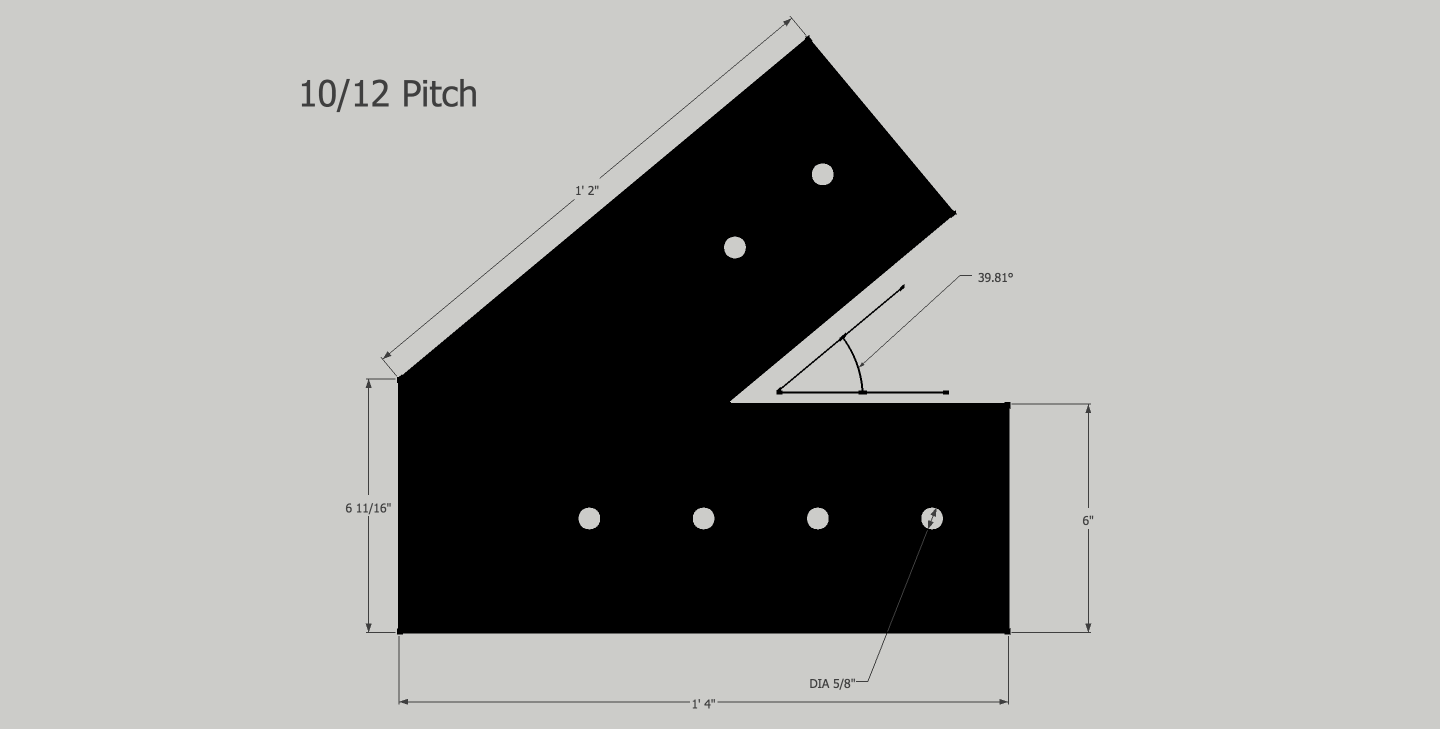

V plates connect to roof members so they depend on roof pitch. Please choose the correct pitch and plate thickness from the dropdown. Please refer to the video to help you with choosing the correct V Plate.
3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.
Pickup available at 1600 Hwy 84
Usually ready in 5+ days
Product information
All of our plates and connectors are cut from A36 steel. Our rods are fabricated from 1018 steel. If you need plates, connectors, or rods from custom metals like A572, 304/316 stainless, or other alloys, please contact us for a custom quote.
Shipping is calculated at checkout and will either be priority ground or LTL freight depending on the size and weight of the order. Please see our return policy for information on returns.
