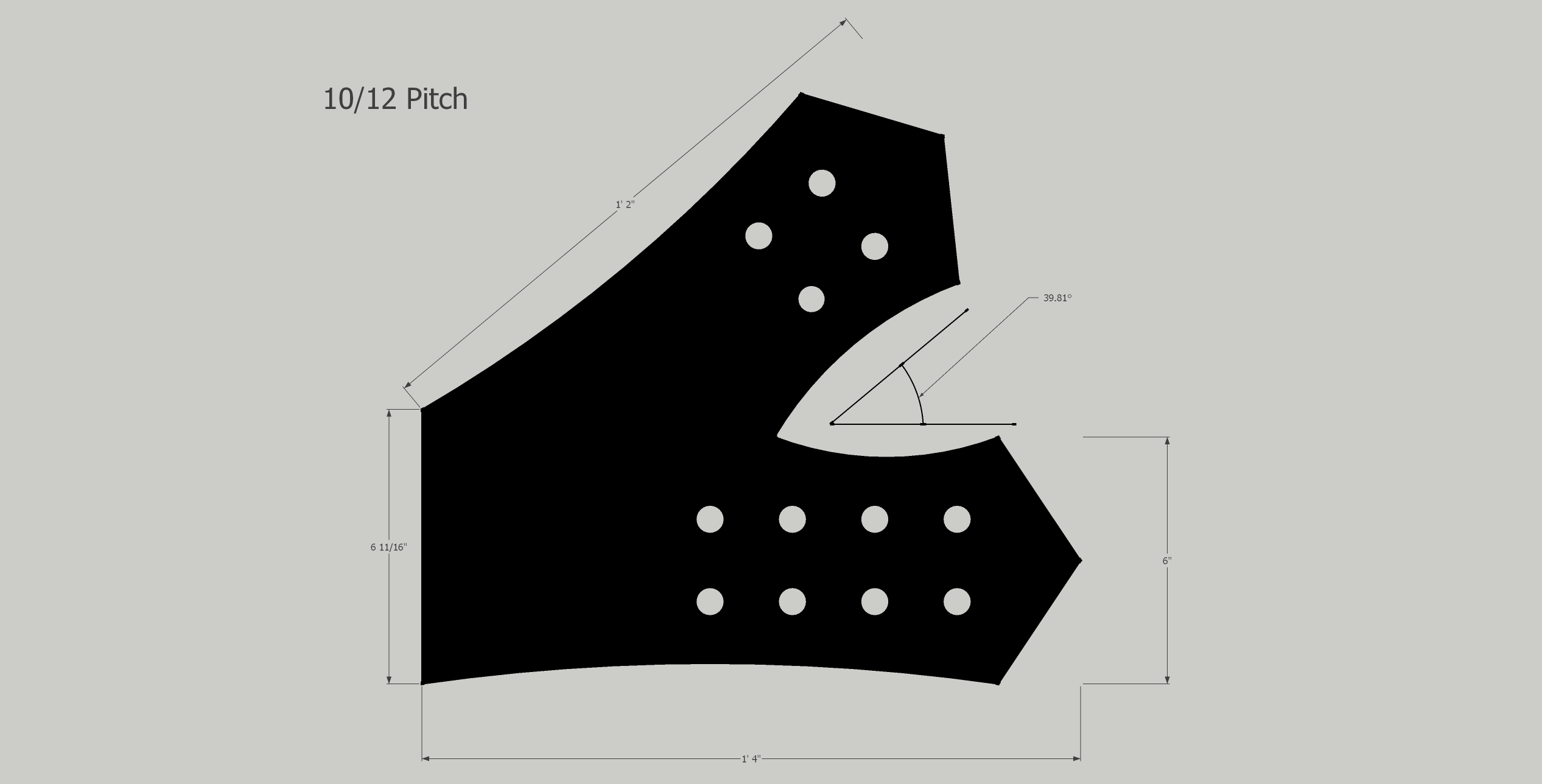

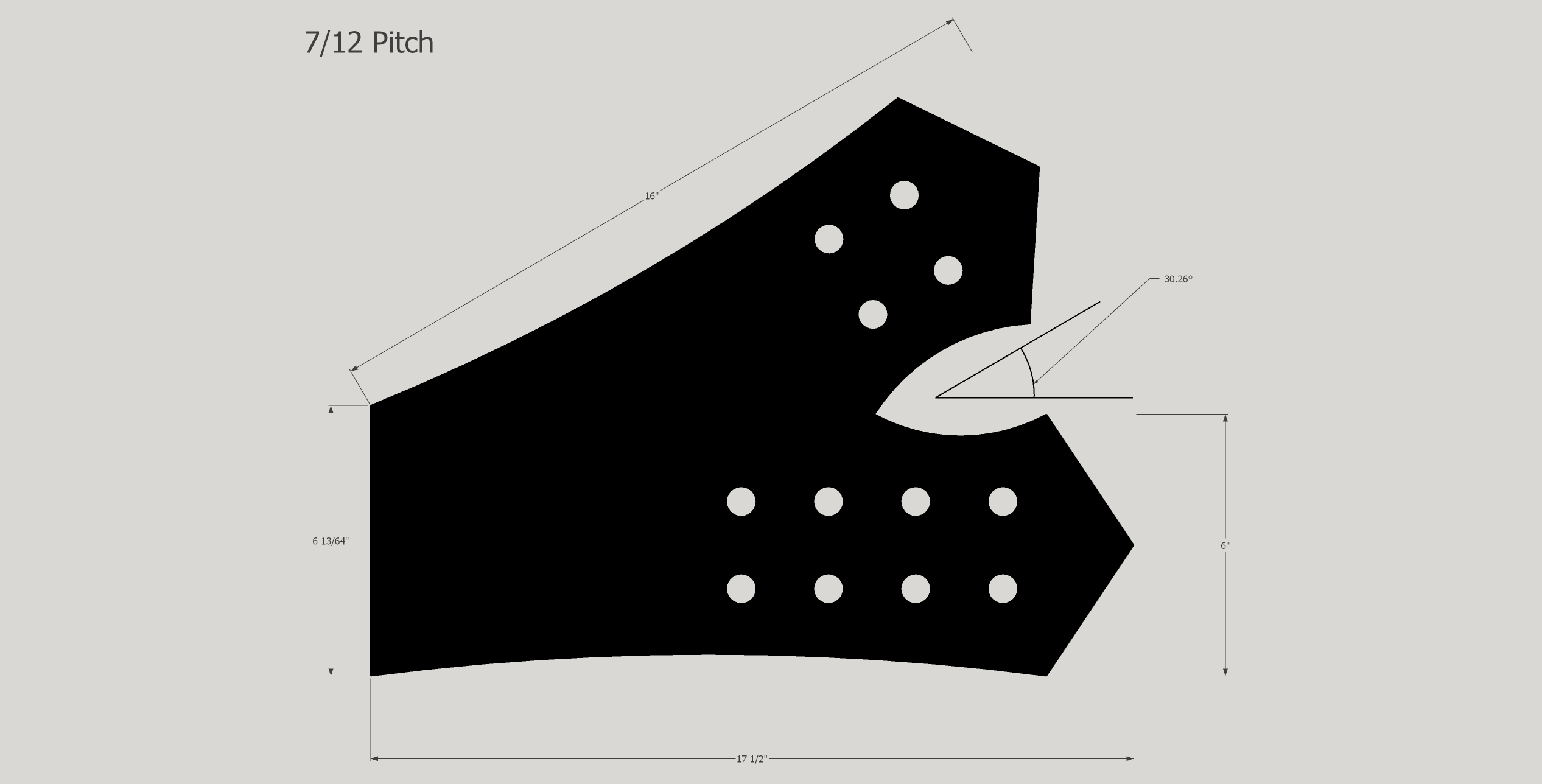

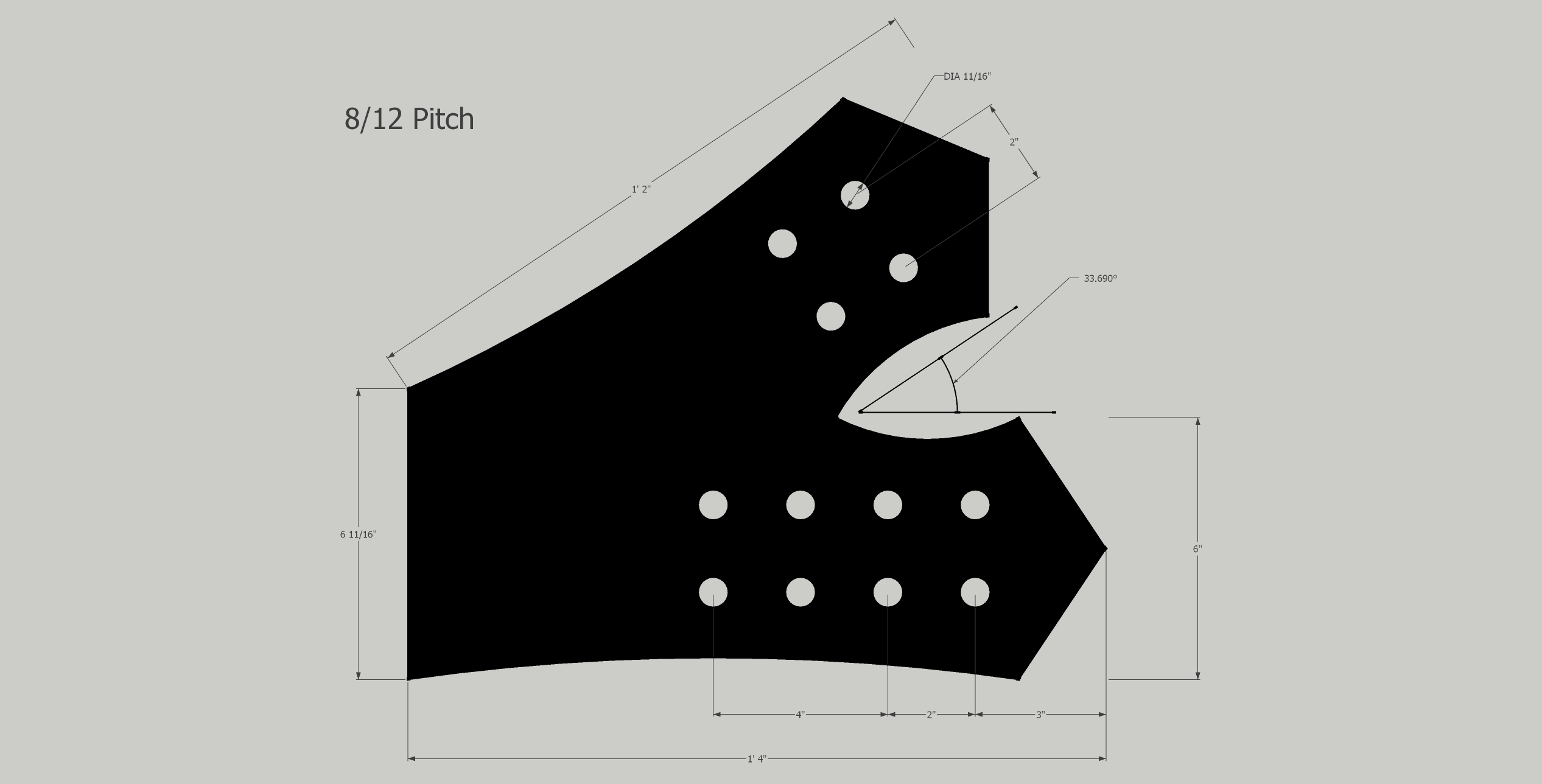

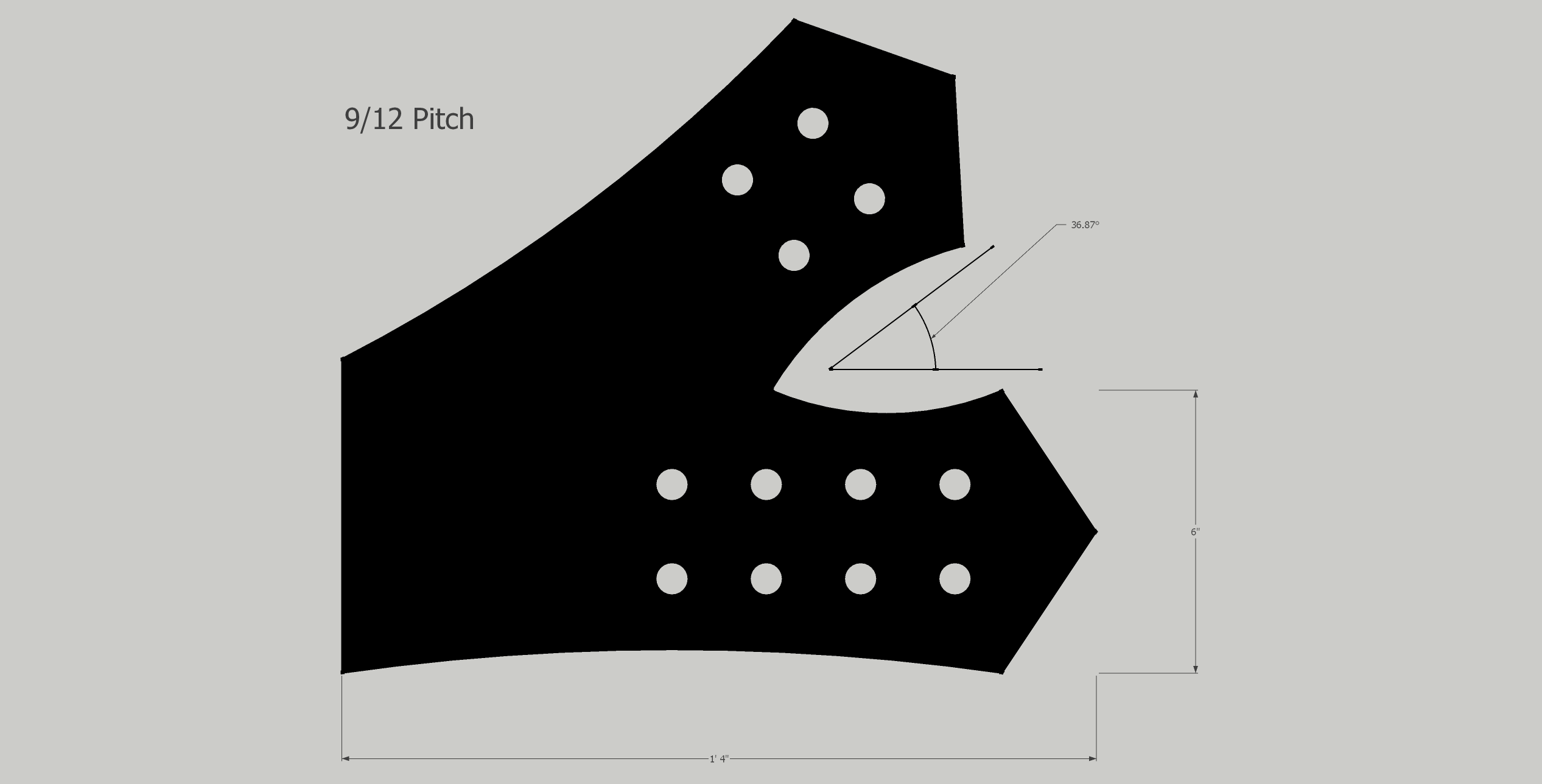

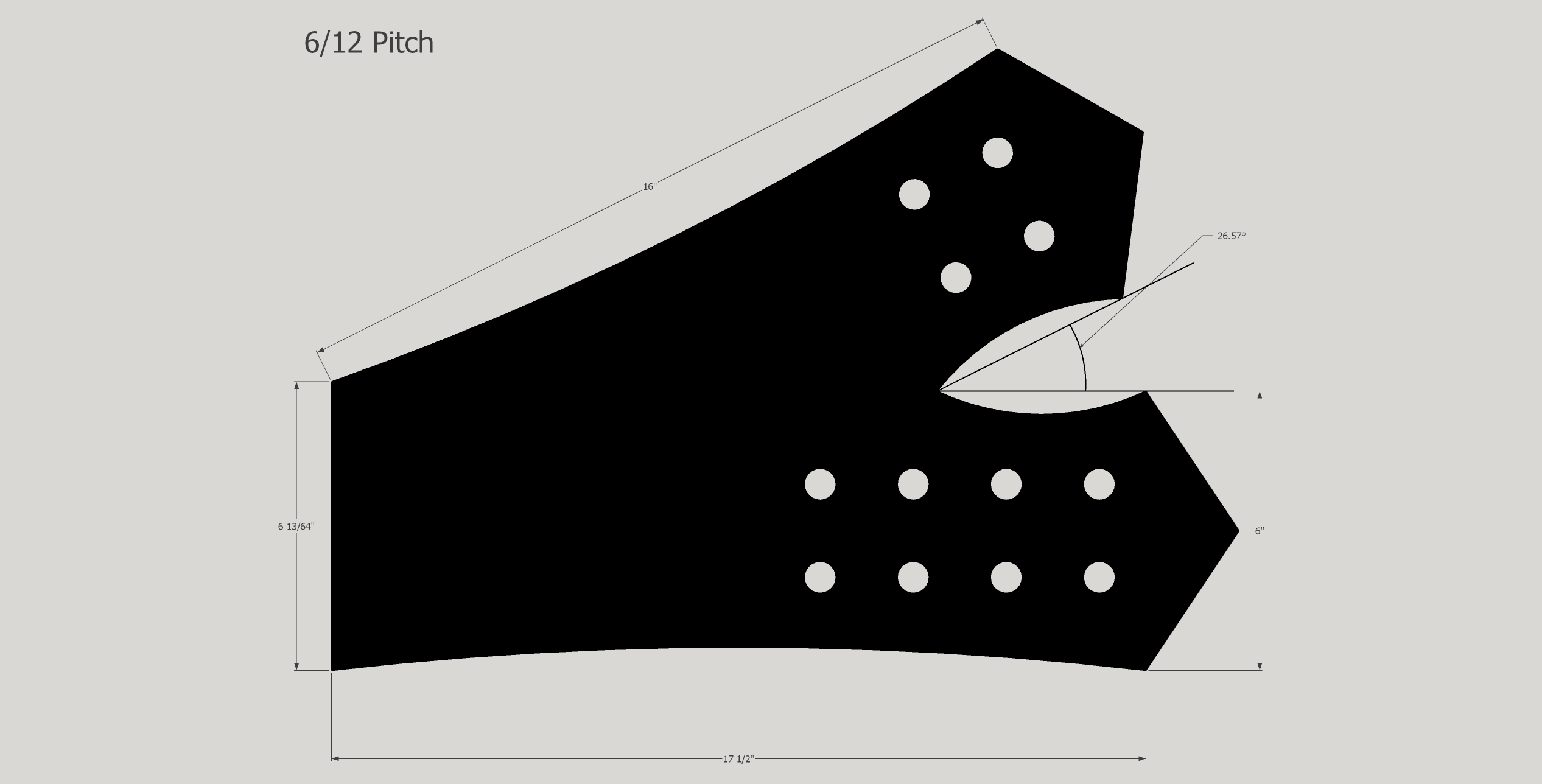

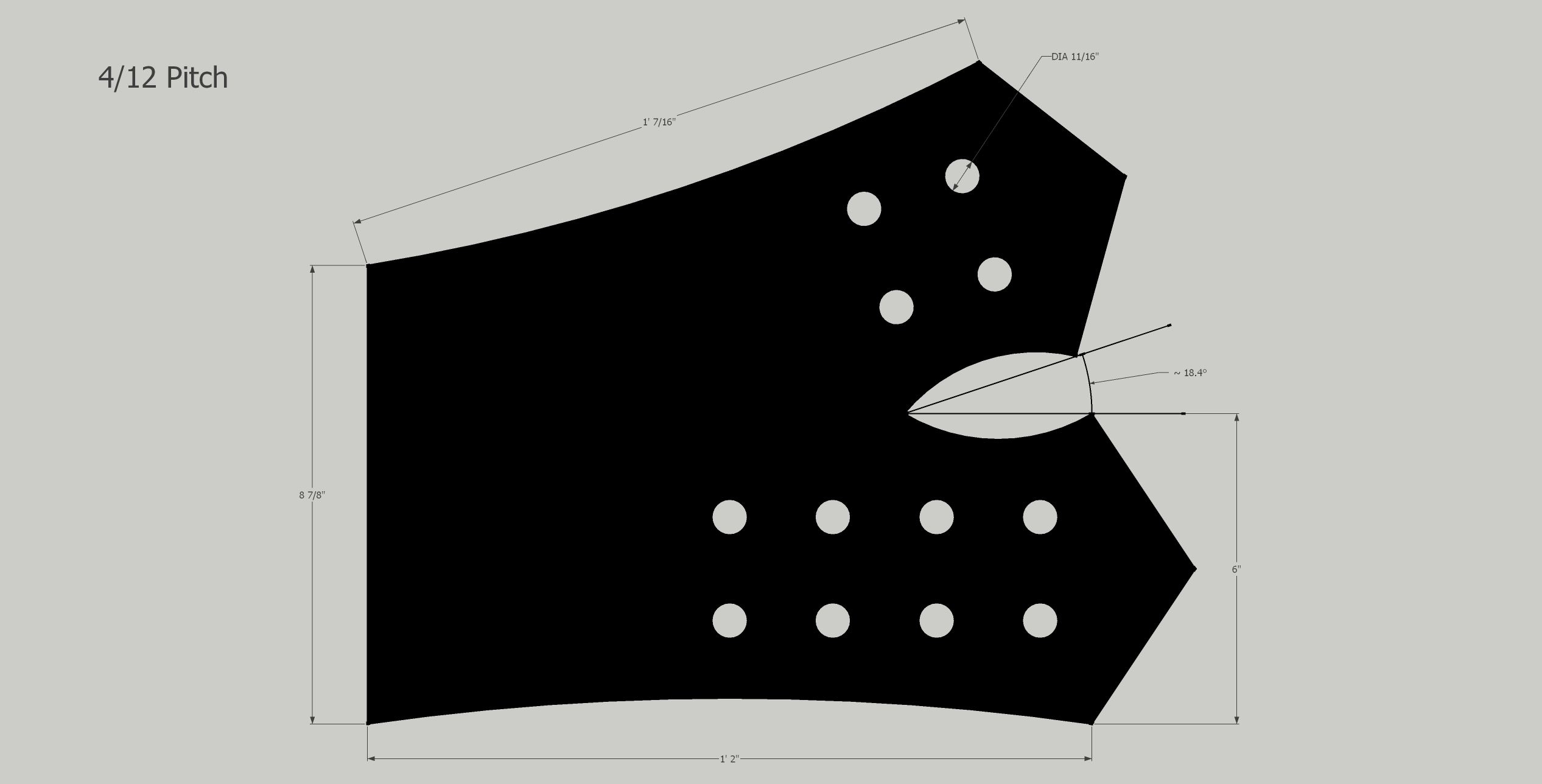

Click image for zoomed in view with dimensions.

Black powder coating can be added at checkout.


$ 34.00

Please select the plate pitch and thickness below

The VBE6 plate is useful for connecting truss bottom tie beams to rafters where the rafters bear on the tie beam. 6" wide plates look good on timbers ranging in width from 6" to 12". 3/16" steel is a good choice for purely decorative plates. 1/4" is better for applications that need structural support.

V plates connect to roof members so they depend on roof pitch. Please choose the correct pitch and plate thickness from the dropdown.
