Timberplates

VT4

The VT4 plate is useful for connecting truss bottom chords to top chords where the bottom chord hangs from the top chord (as in collar ties/tie beams).

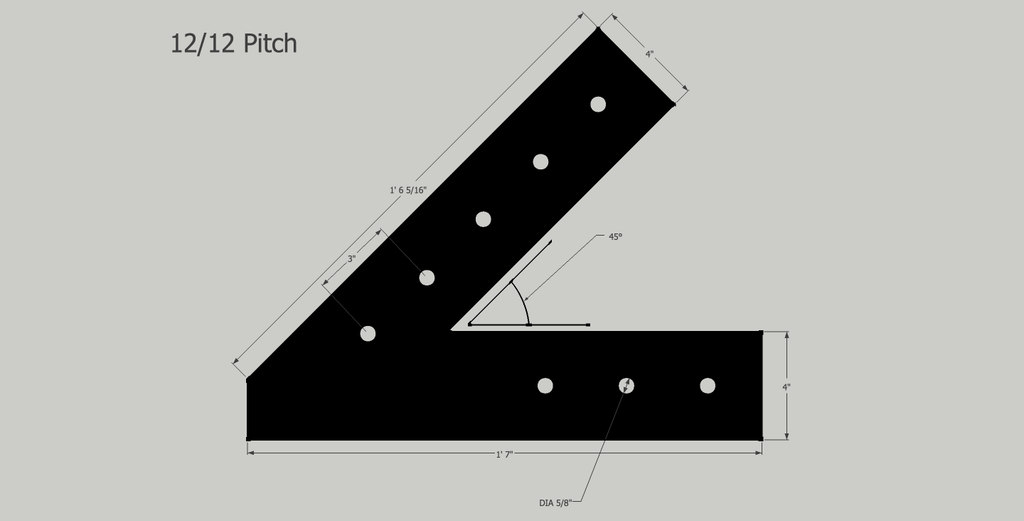

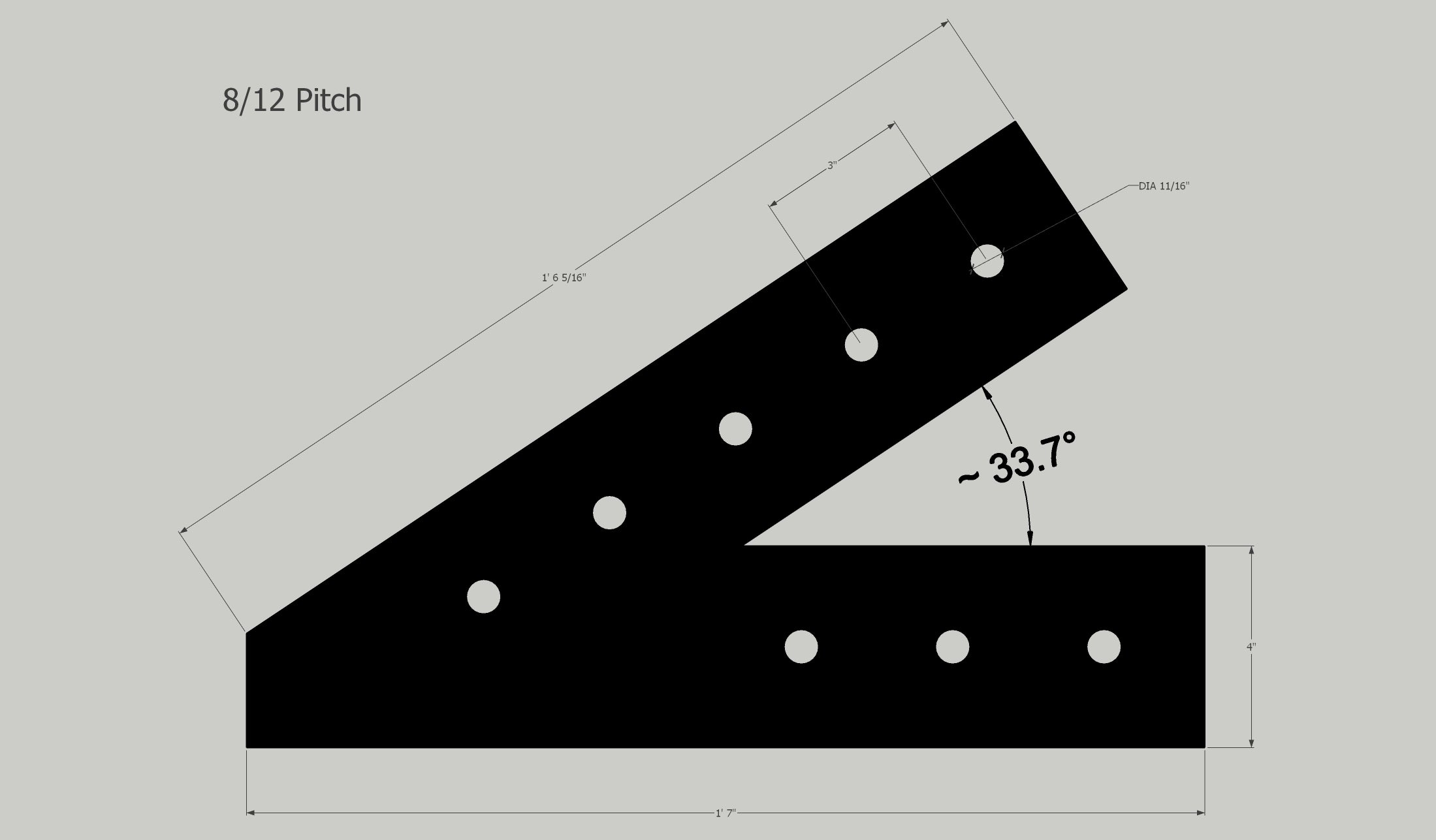

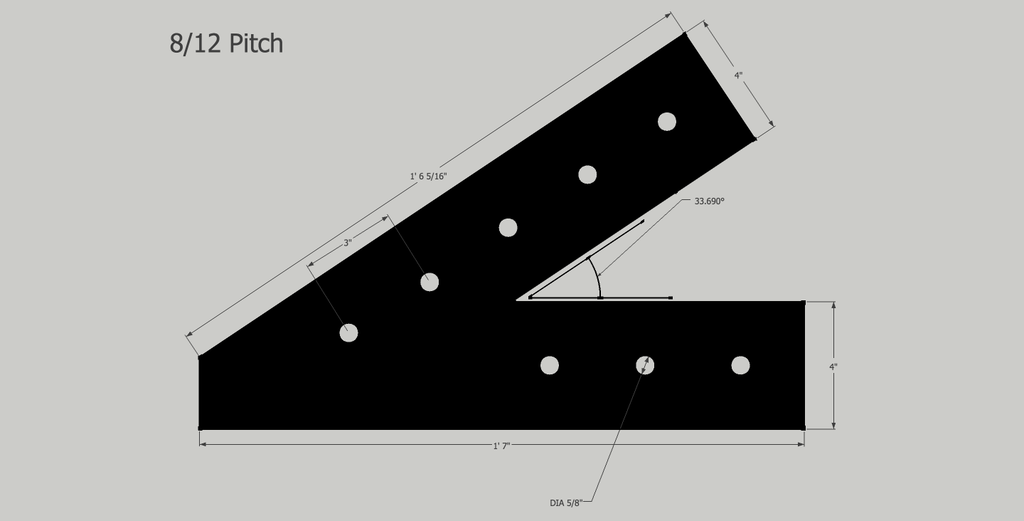

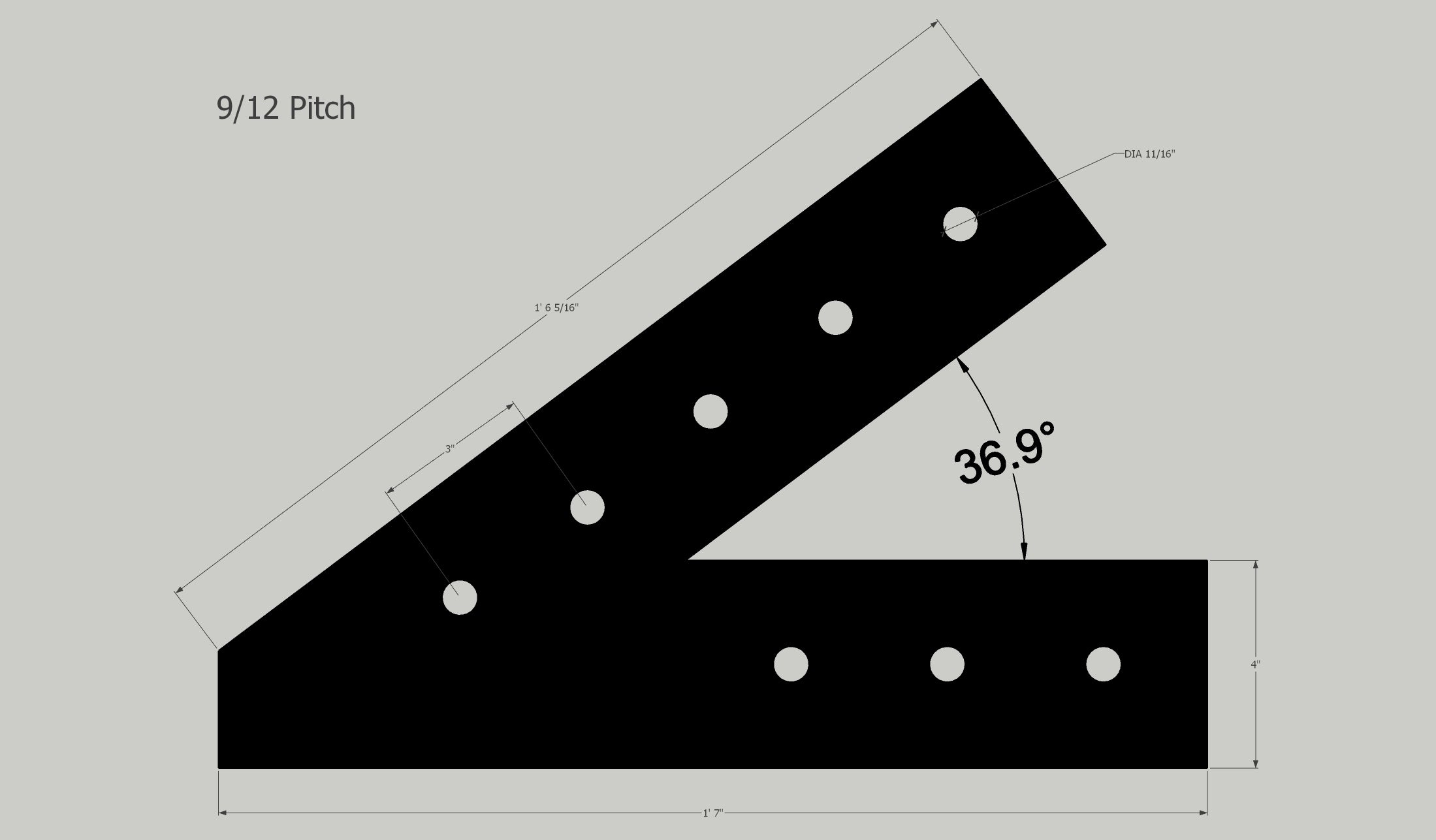

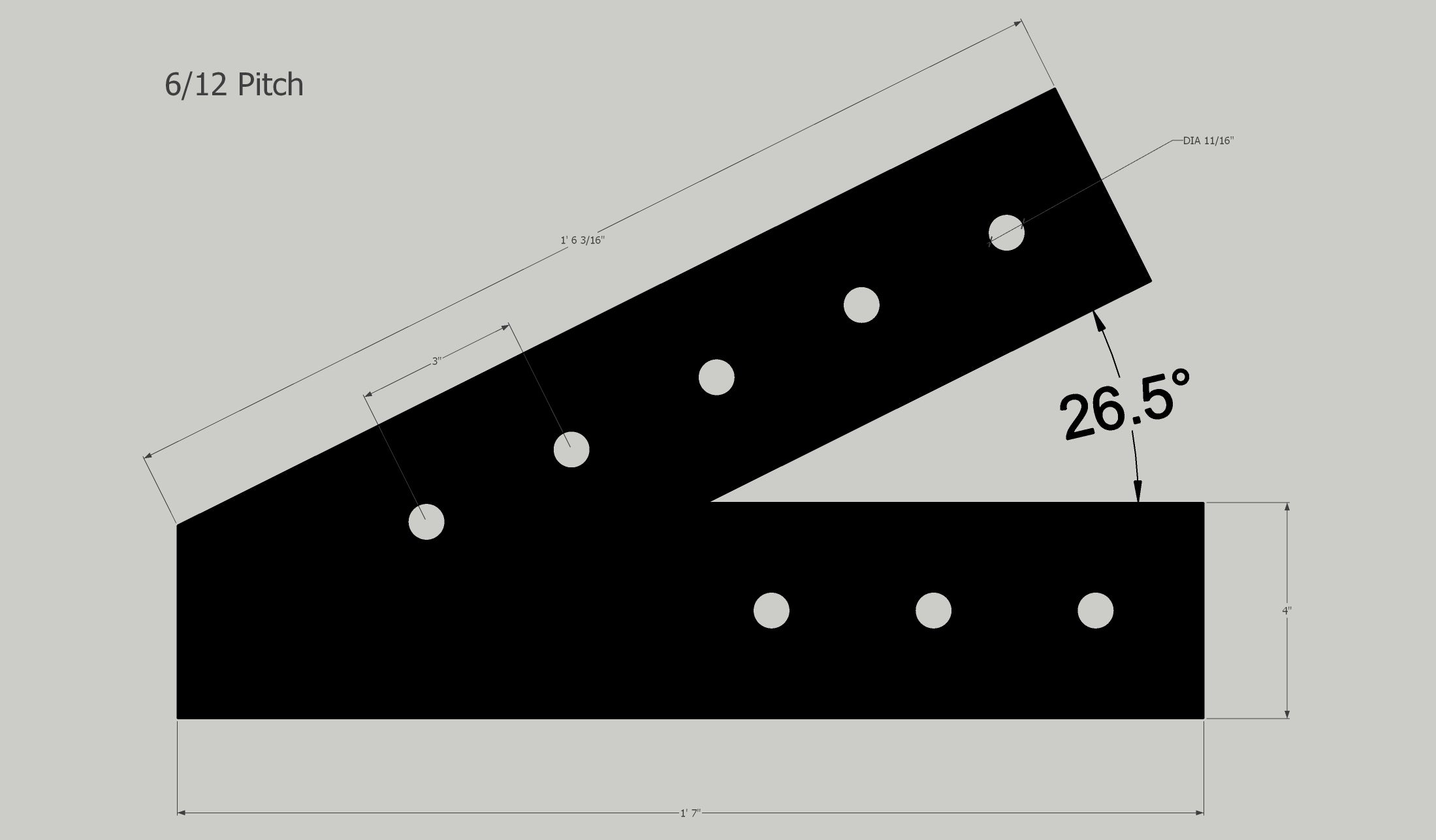

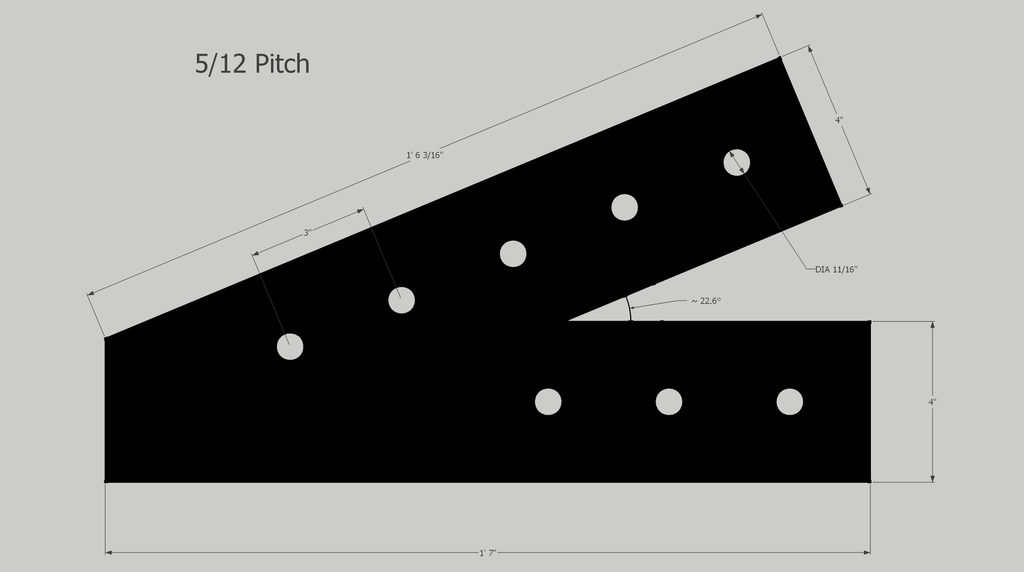

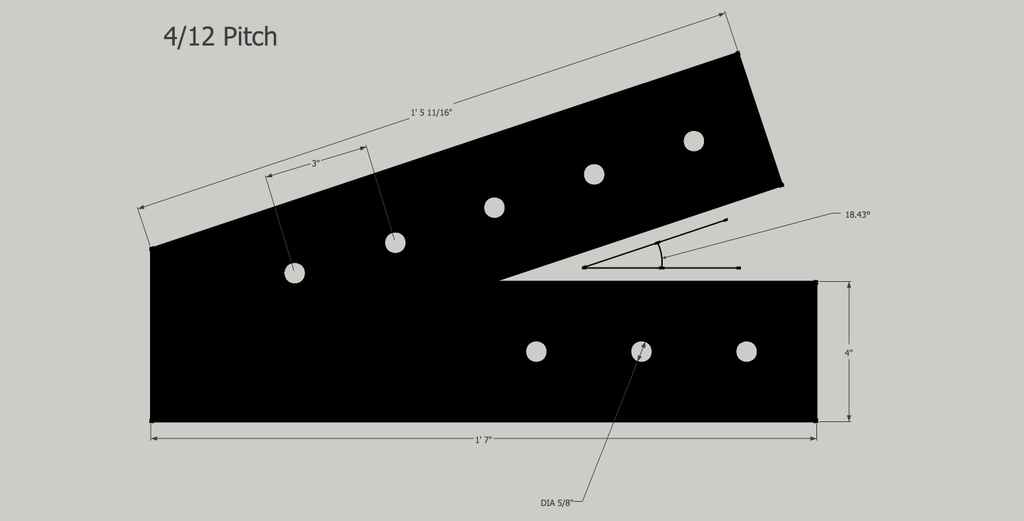

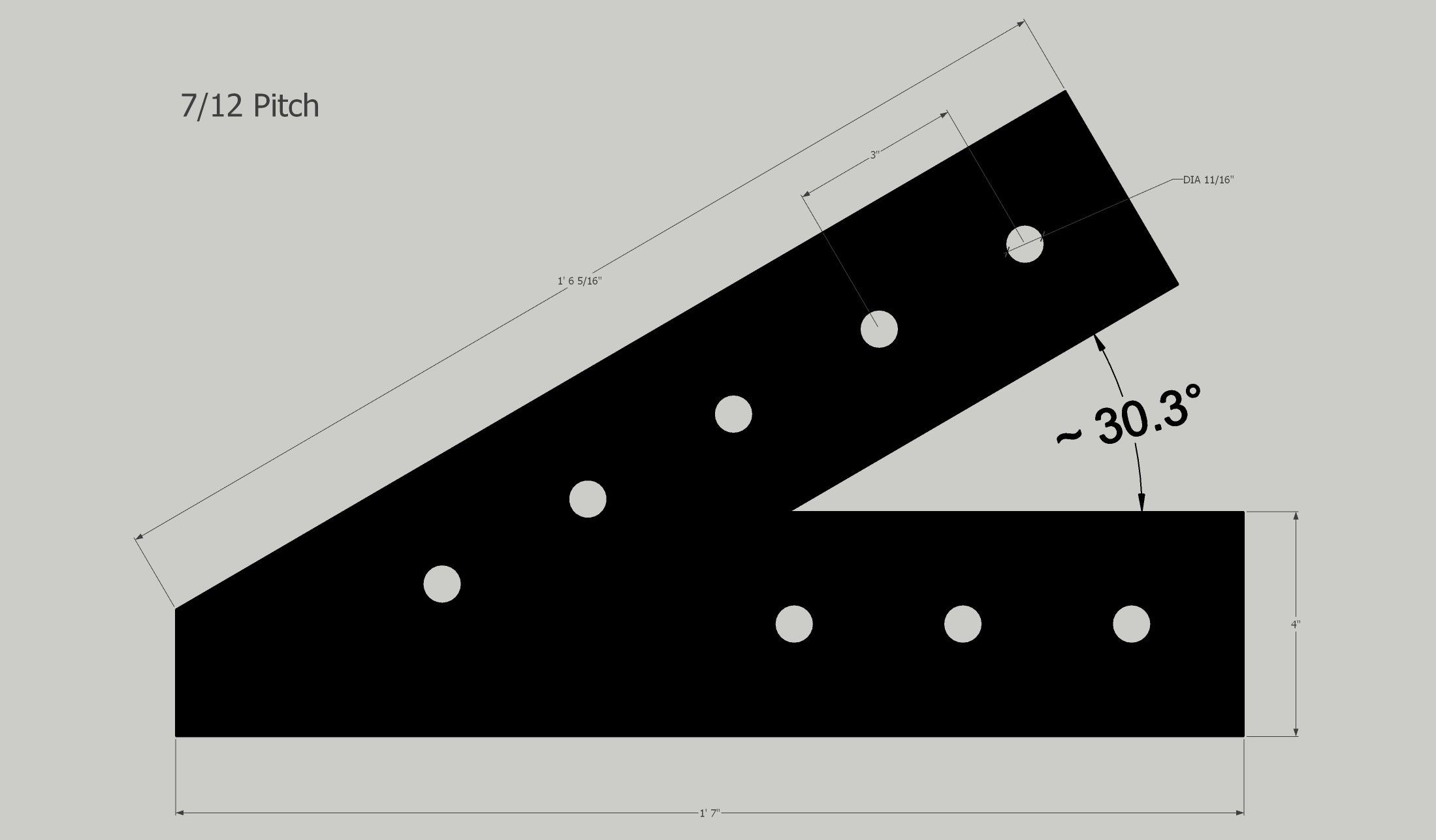

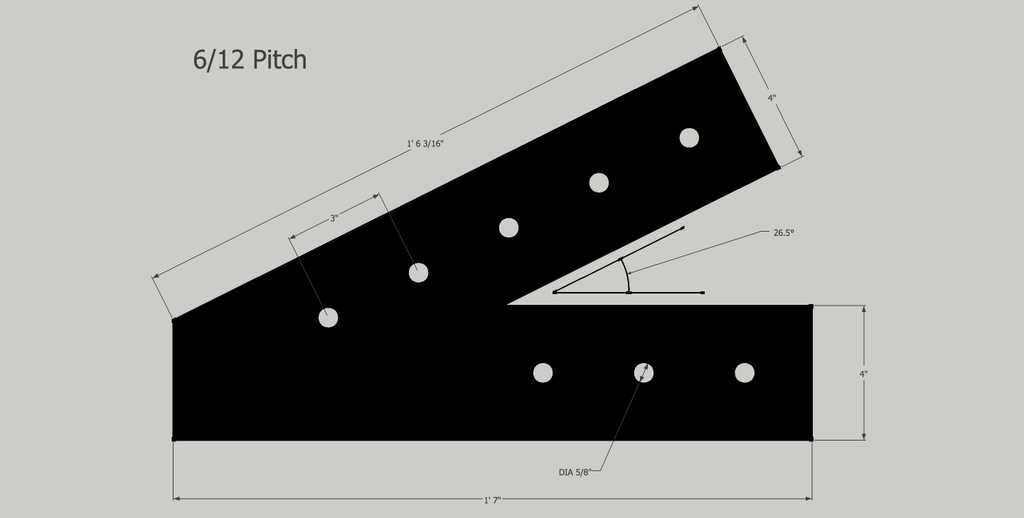

V plates connect to roof members so they depend on roof pitch. Please choose the correct pitch and plate thickness from the dropdown.

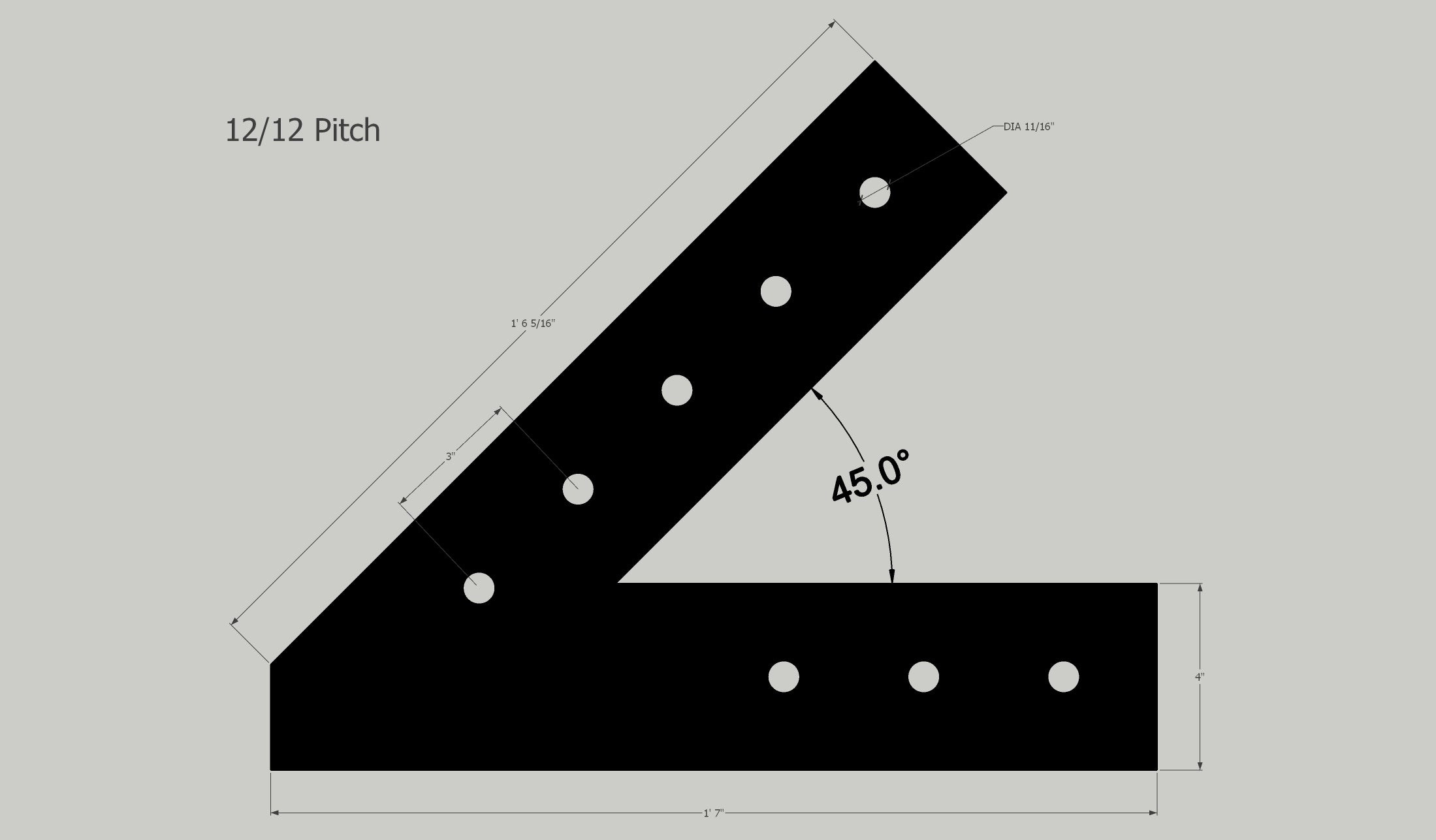

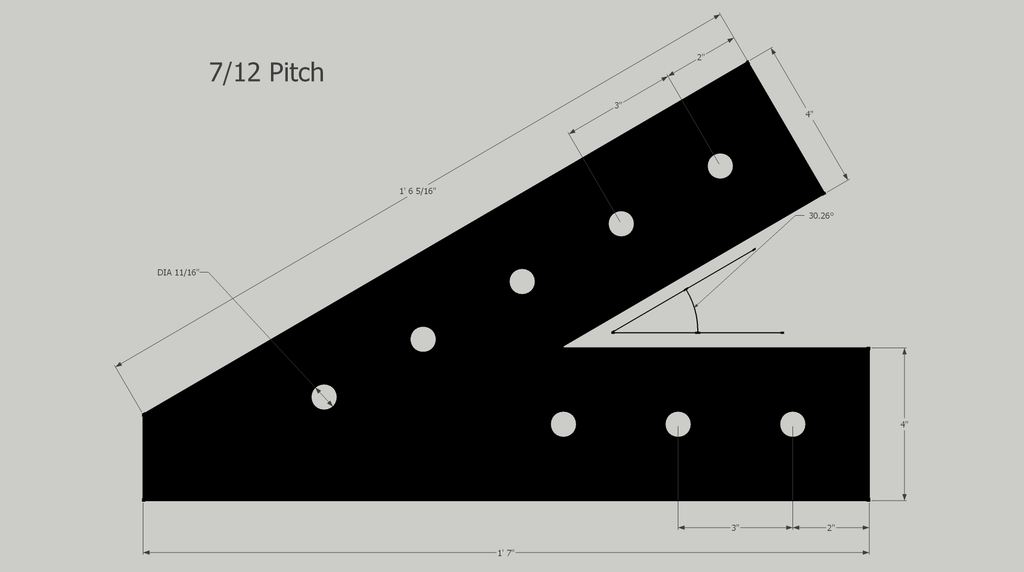

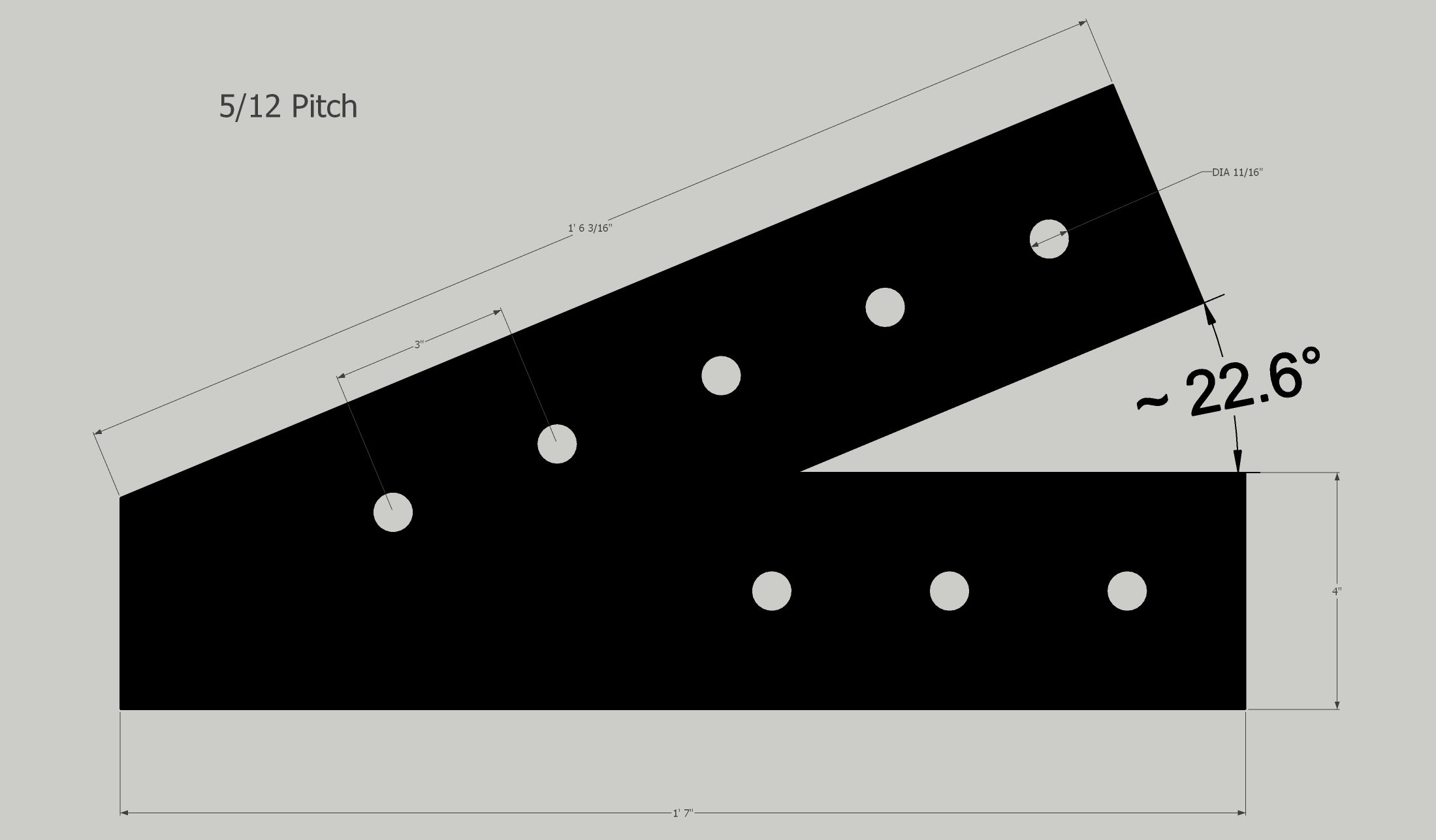

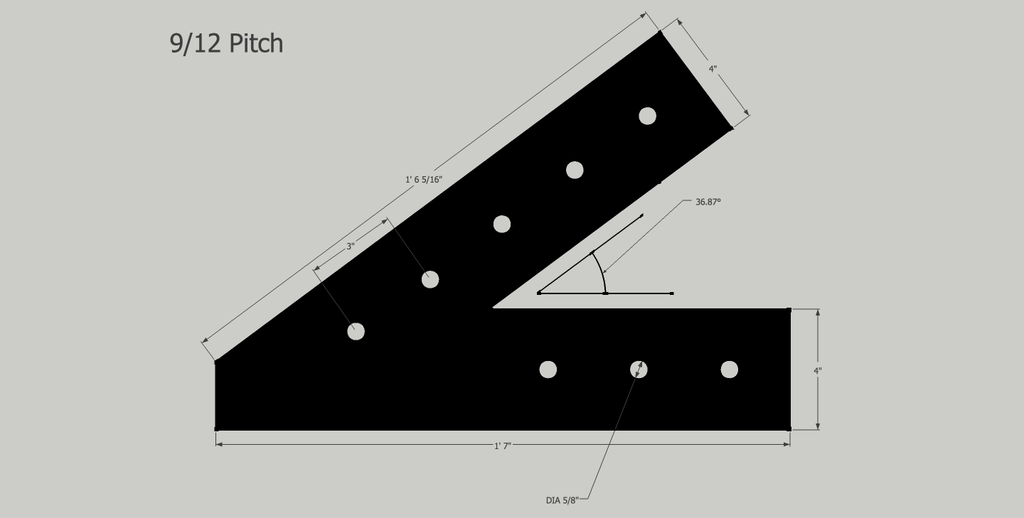

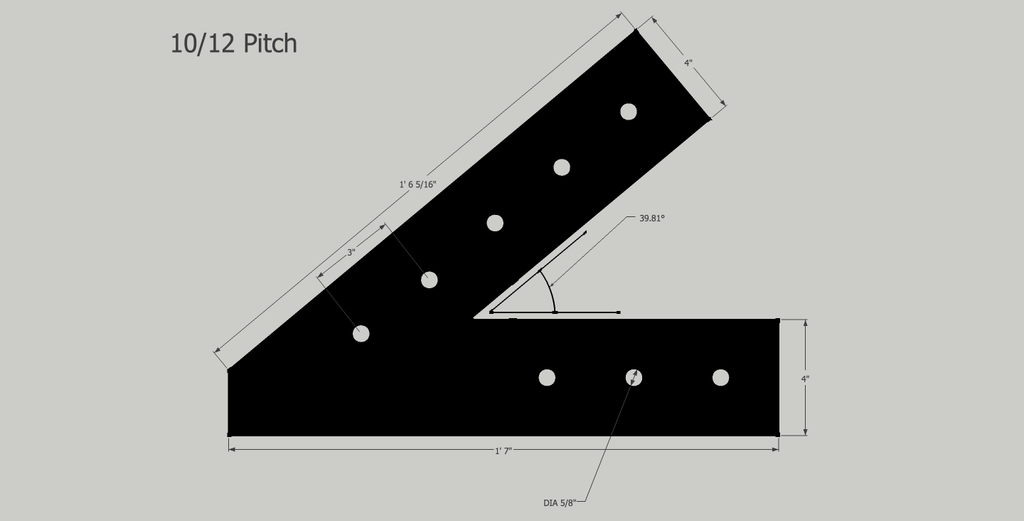

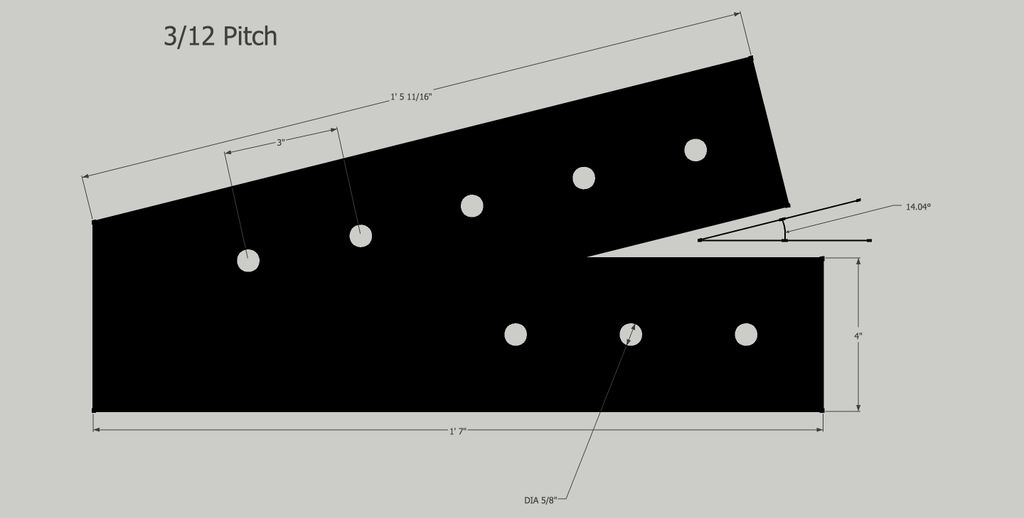

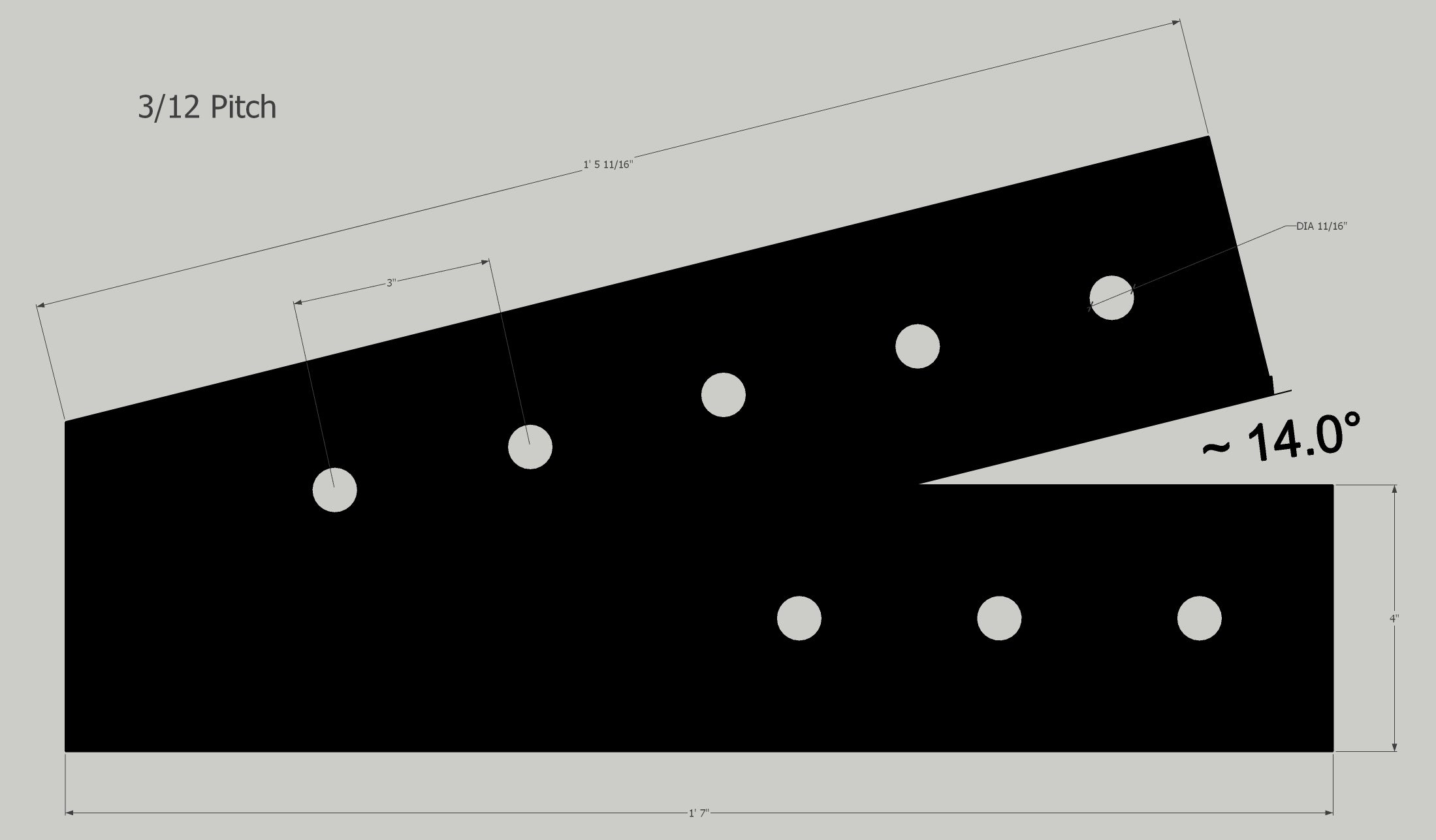

To see dimensions, hover over image to magnifer (desktop) or click image and zoom in (mobile).

Please select the plate pitch and thickness below
Black powder coating can be added at checkout.

$ 30.00
