F4

The F4 is a 5-spoke "fan plate". Fan plates are used to connect the bottom tie beam of a truss to two struts and a king post. The F4 has with 4" wide spokes along the tie beam and 3" wide spokes on the king post and struts. Struts radiate out at 45° angles.

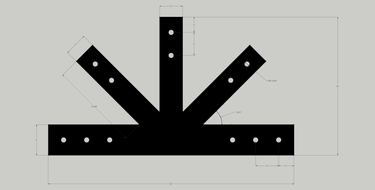

Click image for zoomed in view with dimensions.

Please select the plate pitch and thickness below
Black powder coating can be added at checkout.

$ 58.00
