Cornice
For 3" to 6" timbers
The Cornice collection is a line of plates suitable for 3 1/2"-6" lumber. The uniform 3" spoke widths leave an elegant 1/4" wood reveal around the plates on 4" dimensional lumber. The long, narrow spokes and chamfered ends add a decorative touch that will take your project to the next level.
Not sure which plates you need? See how to plan your truss
01 In a truss
Where each plate goes

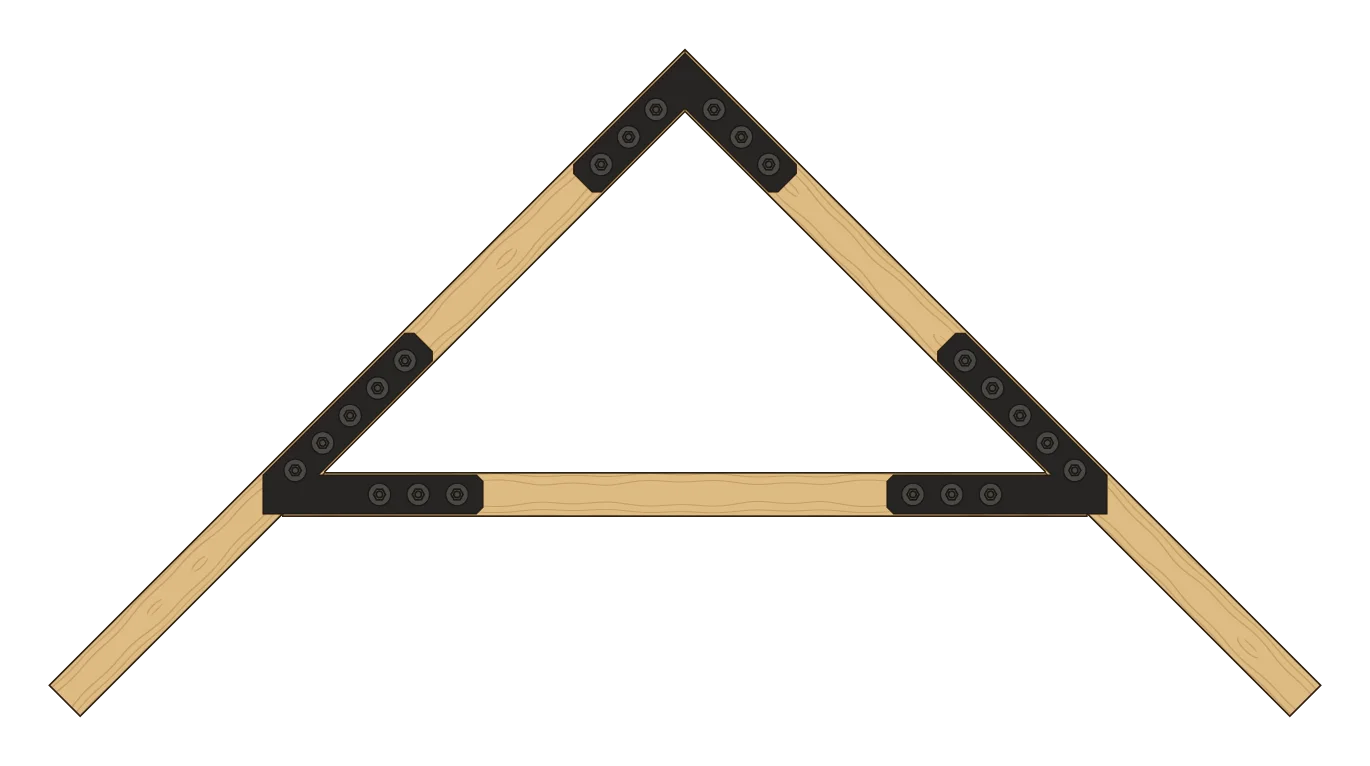

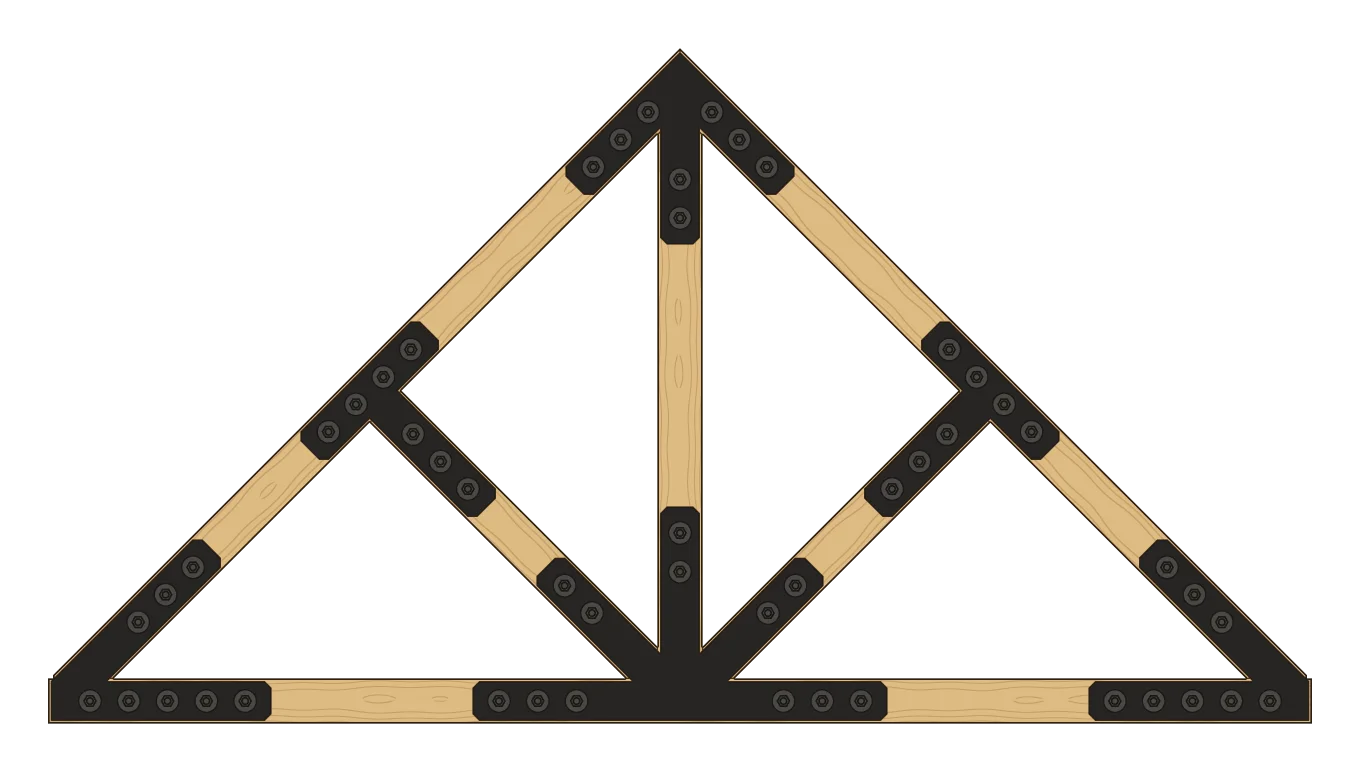

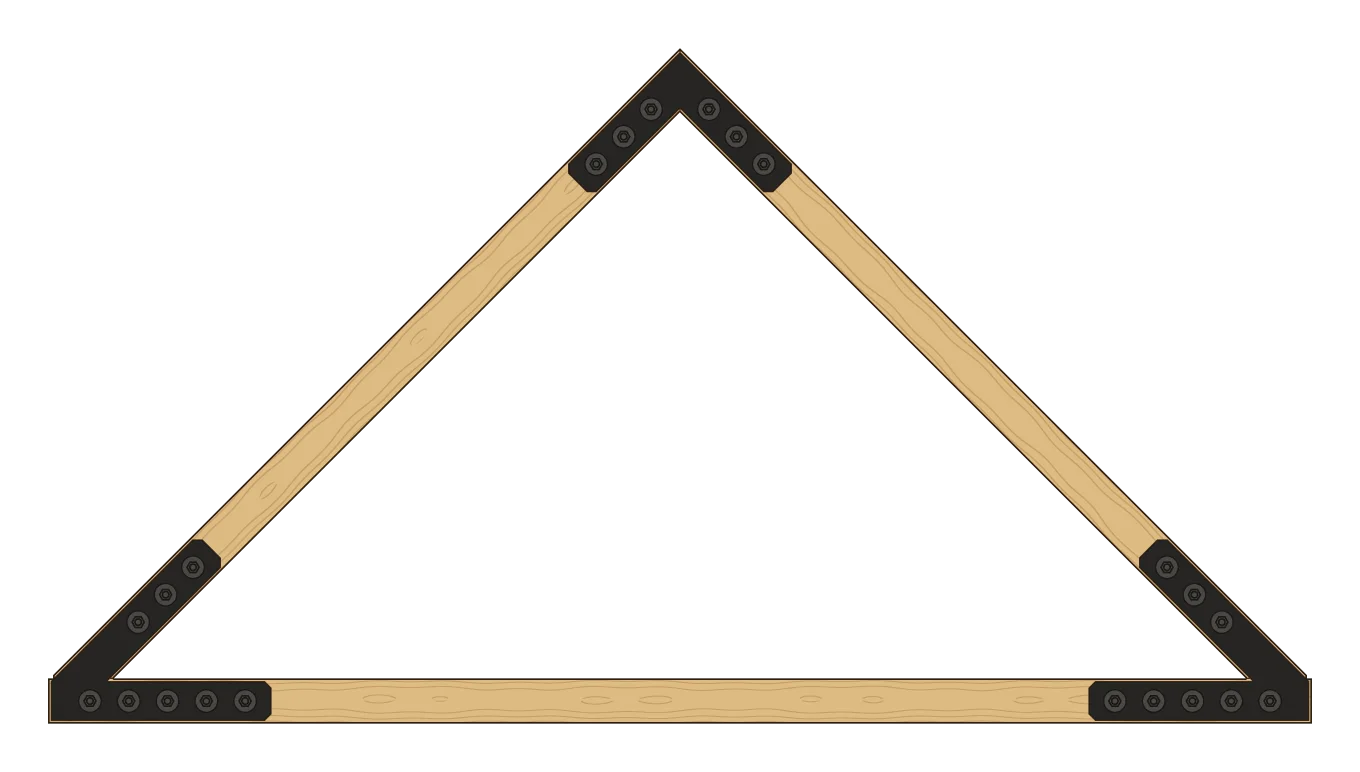

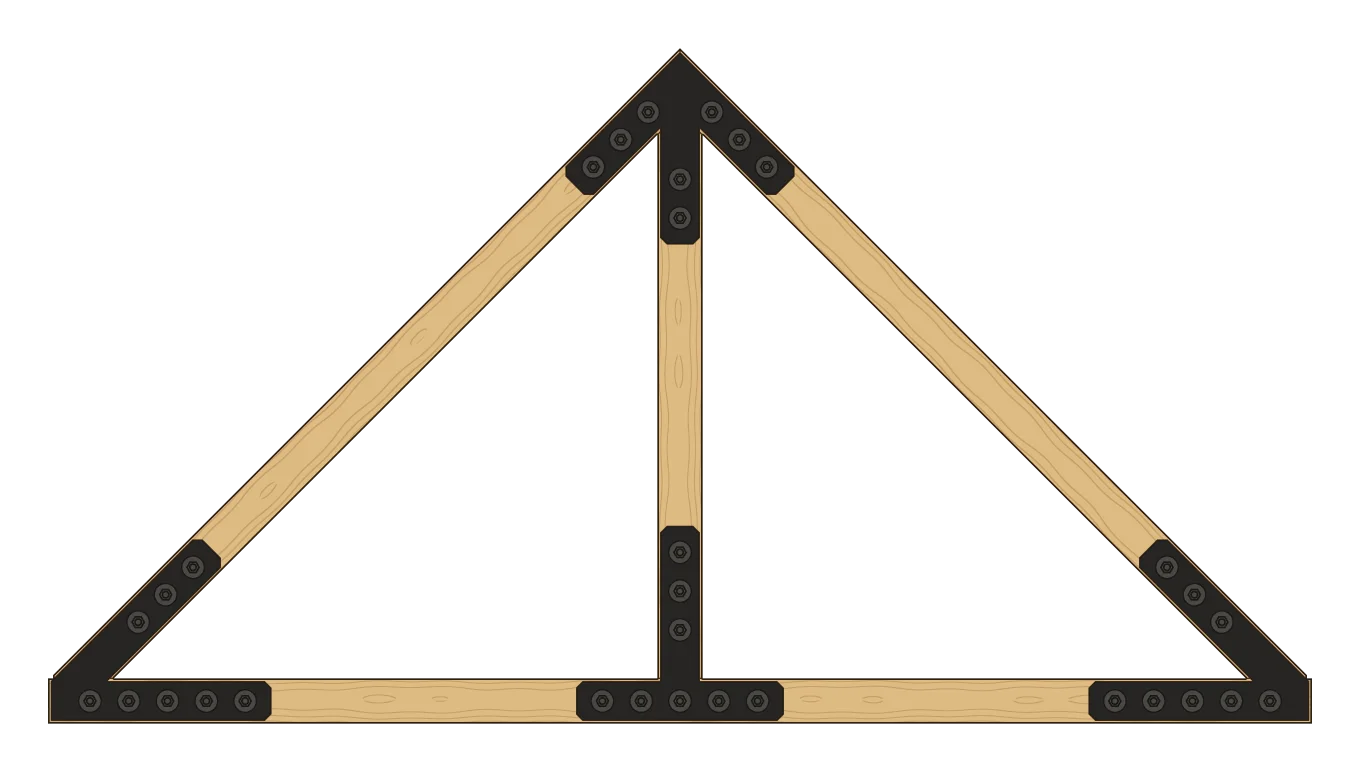

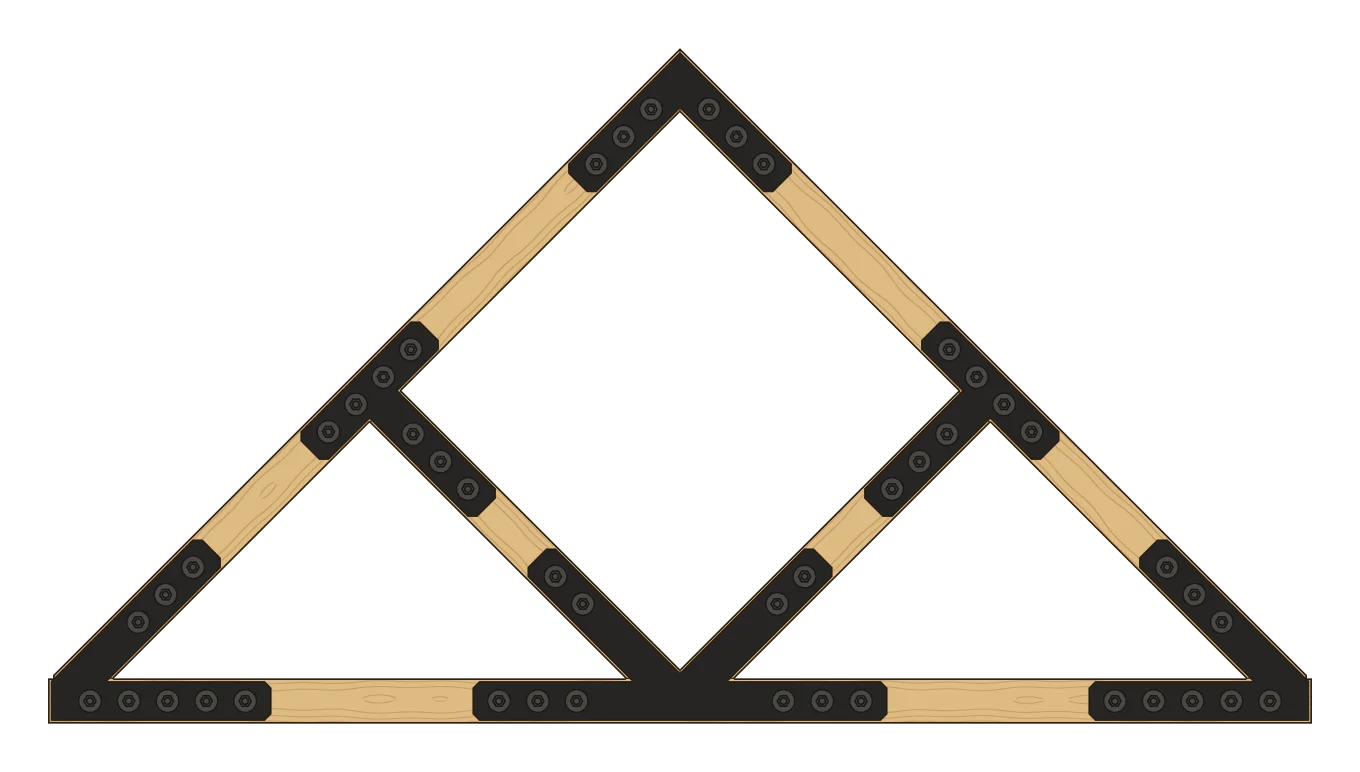

Every plate on the drawing is a link to it. Pick a truss type to see the plates it takes.
One truss needs
Counts are for both faces: plates go on in pairs.
One truss needs
Counts are for both faces: plates go on in pairs.
One truss needs
Counts are for both faces: plates go on in pairs.
02 Plates
Every Cornice plate
Drawn to one scale from the cutting files; plates that come in pitches are shown at 12/12.
-

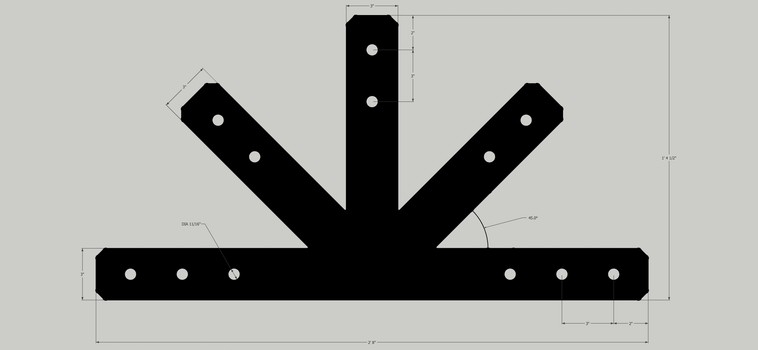

F3Fan plate: tie beam to king post and two struts
From $63
-

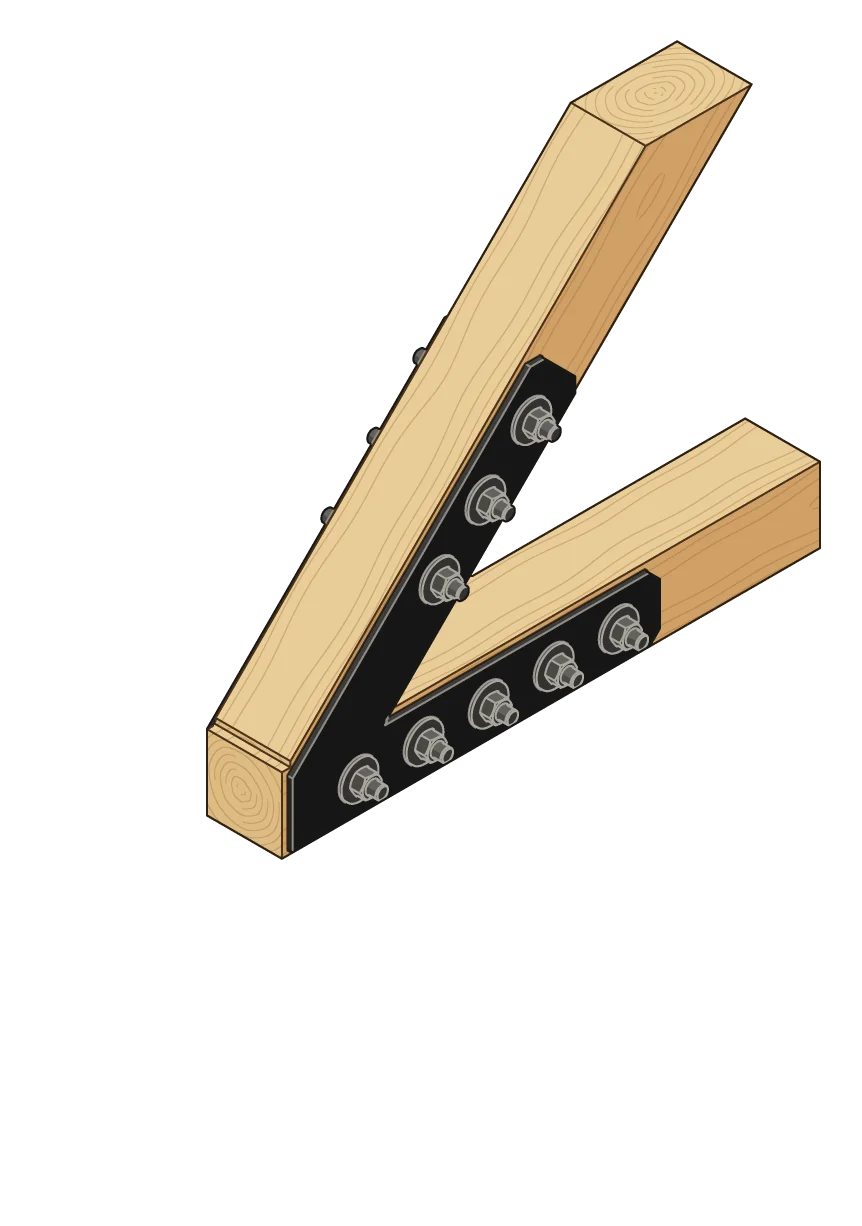

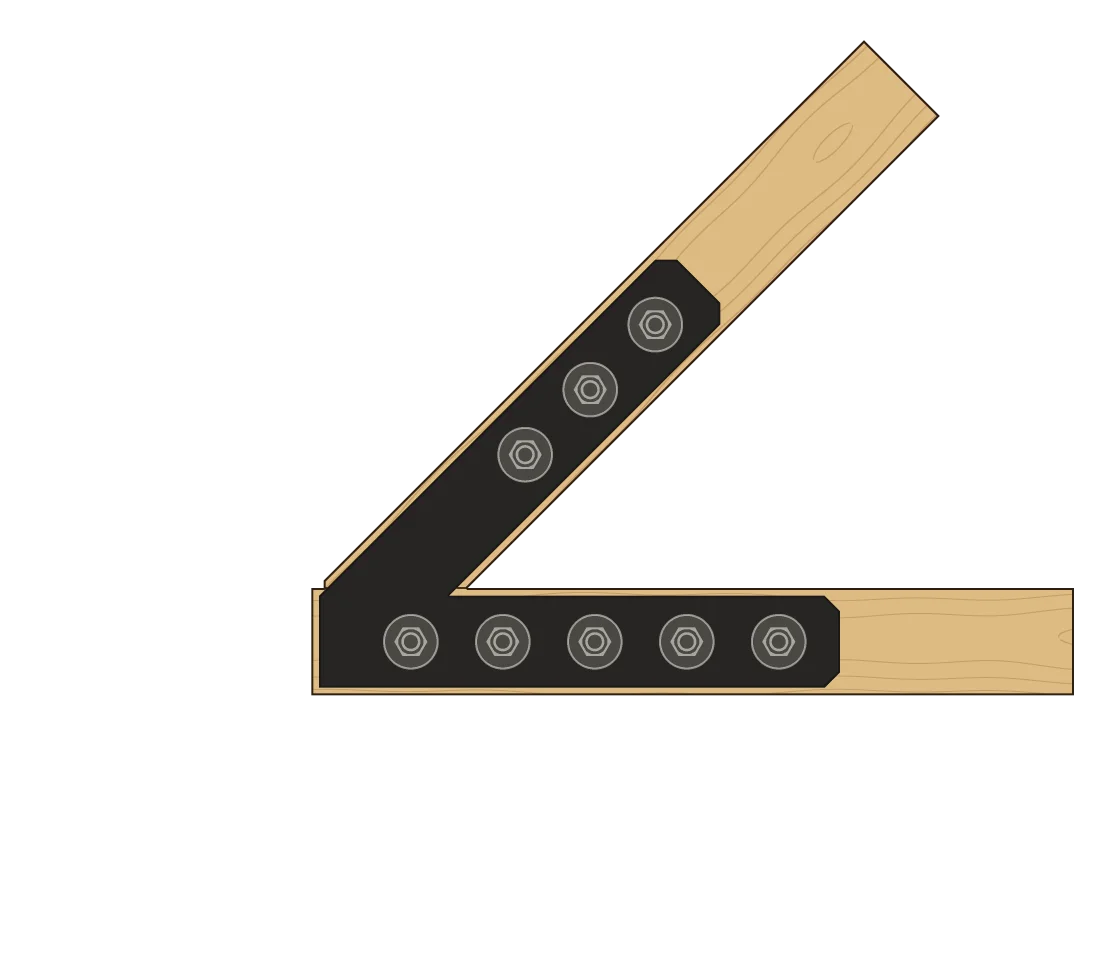

VB3Heel: the rafter sits on the tie beam
From $30
-

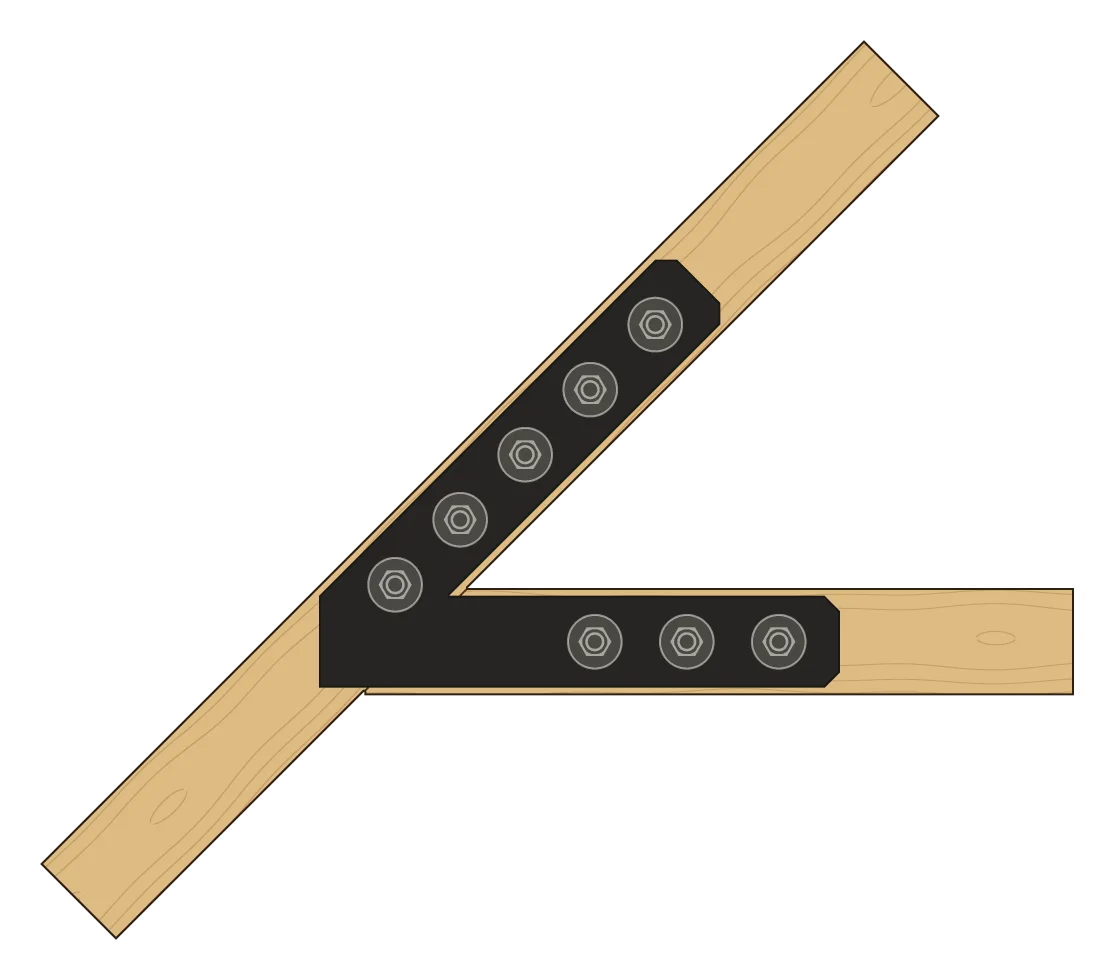

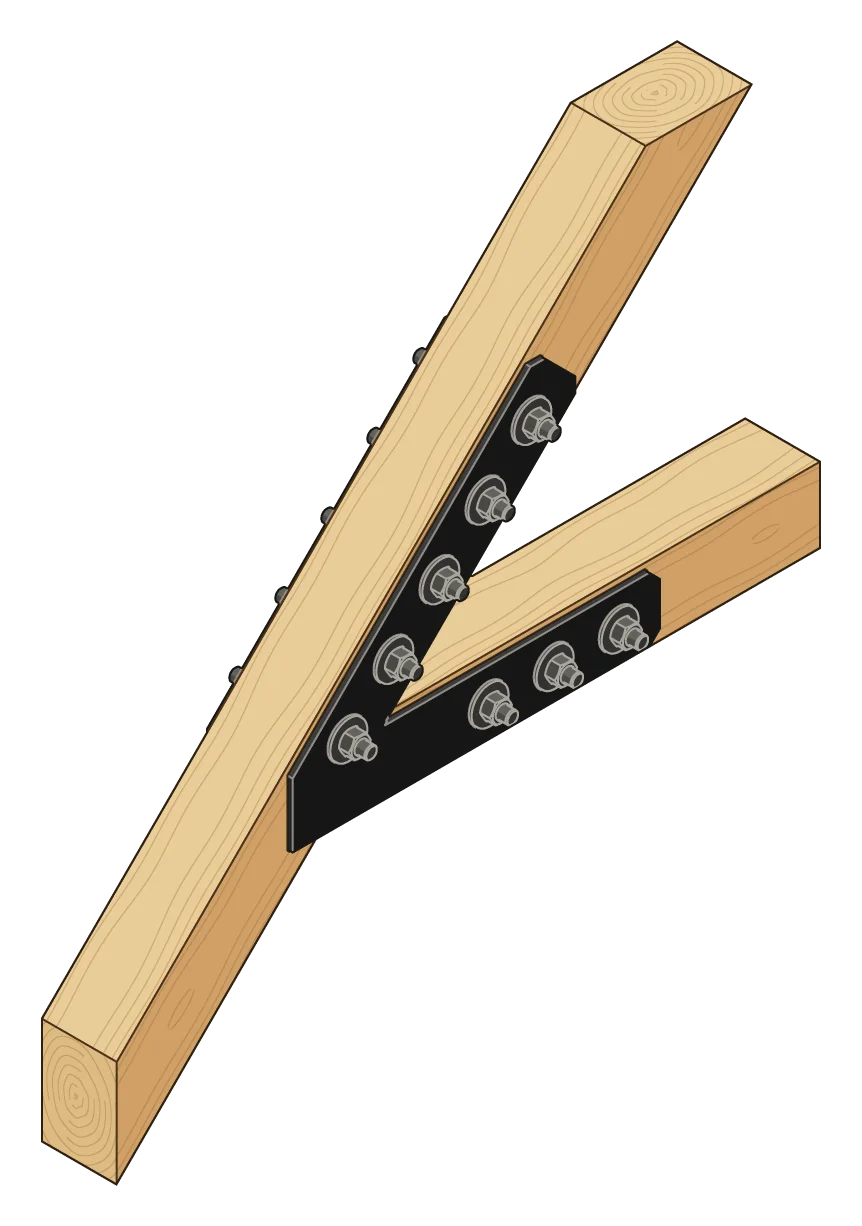

VT3Heel: the tie beam hangs from the rafter
From $30
-
W3Peak, with a king post
From $31
-
Y3Strut to rafter
From $22
-
T3Tie beam to king post
From $25
-
L3Tie beam to column
From $19
-
I3Straight strap, or joining timbers end to end
From $17
-
N3Peak, without a king post
From $22
-
U3Tie beam to two struts
From $71
03 Heel
Which heel plate?
A rafter and a tie beam meet in one of two ways, and each takes its own plate.
04 Collections
Six collections, drawn to one scale.
The W peak plate of each collection at 12/12, from its cutting file. Each collection fits a range of timber widths.
-
Cornice3" to 6" timbersW3 from $31This collection
-
Taiga4" to 8" timbersW4 from $46
-
Cuesta4" to 8" timbersWC4 from $46
-
Massif6" to 10" timbersW6 from $71
-
Esker6" to 10" timbersWE6 from $56
-
Sierra8" to 12" timbersW8 from $141
12" at this scale.
