Plates 11 products

Massif Steel Timber Truss Plates for 6"–10" Wide Timbers

The Massif Collection is a line of broad timber truss plates for timbers 6" to 10" wide. Named for the mountain massifs, its plates are a uniform 6" wide on the perimeter timbers and on the webs inside the truss, which gives a timber frame a bold, solid look. The smallest size is an actual width: a Massif plate won't fit a surfaced 6x6, which is only 5 1/2" wide.

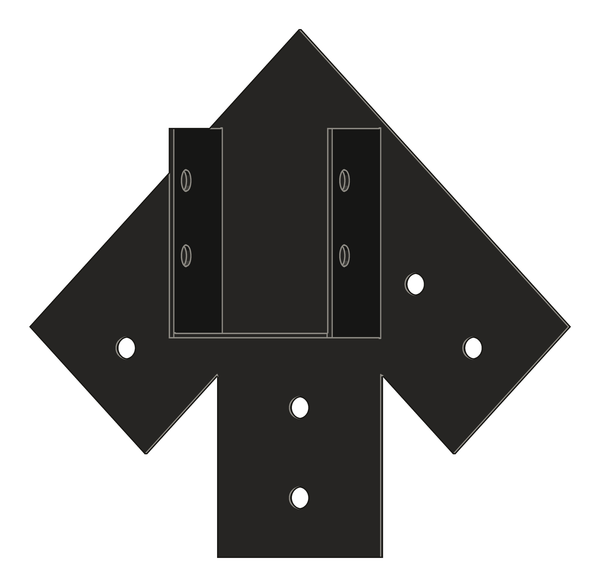

Every plate a truss needs is here: king post, peak, heel, collar tie, strut, fan, and strut fan truss plates, a ridge beam truss saddle, and T, corner, and splice plates. Each is laser cut from 3/16" or 1/4" steel at roof pitches from 3/12 to 12/12, with 11/16" holes for 5/8" bolts unless you choose another size. Plates ship unfinished; add matte black powder coating in the cart. Shipping is free in the lower 48 states.

Not sure which plates you need? See how to plan your truss. Need a size or angle this collection doesn't make? Design your own king post, heel, or strut plate online, or see every custom truss plate.

01 In a truss

Where each plate goes

Every plate on the drawing is a link to it. Pick a truss type to see the plates it takes.

Truss
King post with struts truss with Massif plates, drawn from the cutting files
King post truss with Massif plates, drawn from the cutting files
Struts, no king post truss with Massif plates, drawn from the cutting files
Open truss with Massif plates, drawn from the cutting files
Raised tie beam truss with Massif plates, drawn from the cutting files

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

One truss needs

Counts are for both faces: plates go on in pairs.

02 Plates

Every Massif plate

Drawn to one scale from the cutting files; plates that come in pitches are shown at 12/12. A plate without a cutting file shows the shop’s drawing, not to scale.

03 Heel

Heel plate or collar tie plate?

A rafter and a tie beam meet in one of two ways, and each takes its own plate.

04 Collections

Six collections, drawn to one scale.

Each collection’s king post truss plate at 12/12, from its cutting file. Each collection fits a range of timber widths.

12" at this scale.

Heel plate or collar tie plate?

How do the rafter and the tie beam meet in your truss?
